Air Cleaner Element Replacement

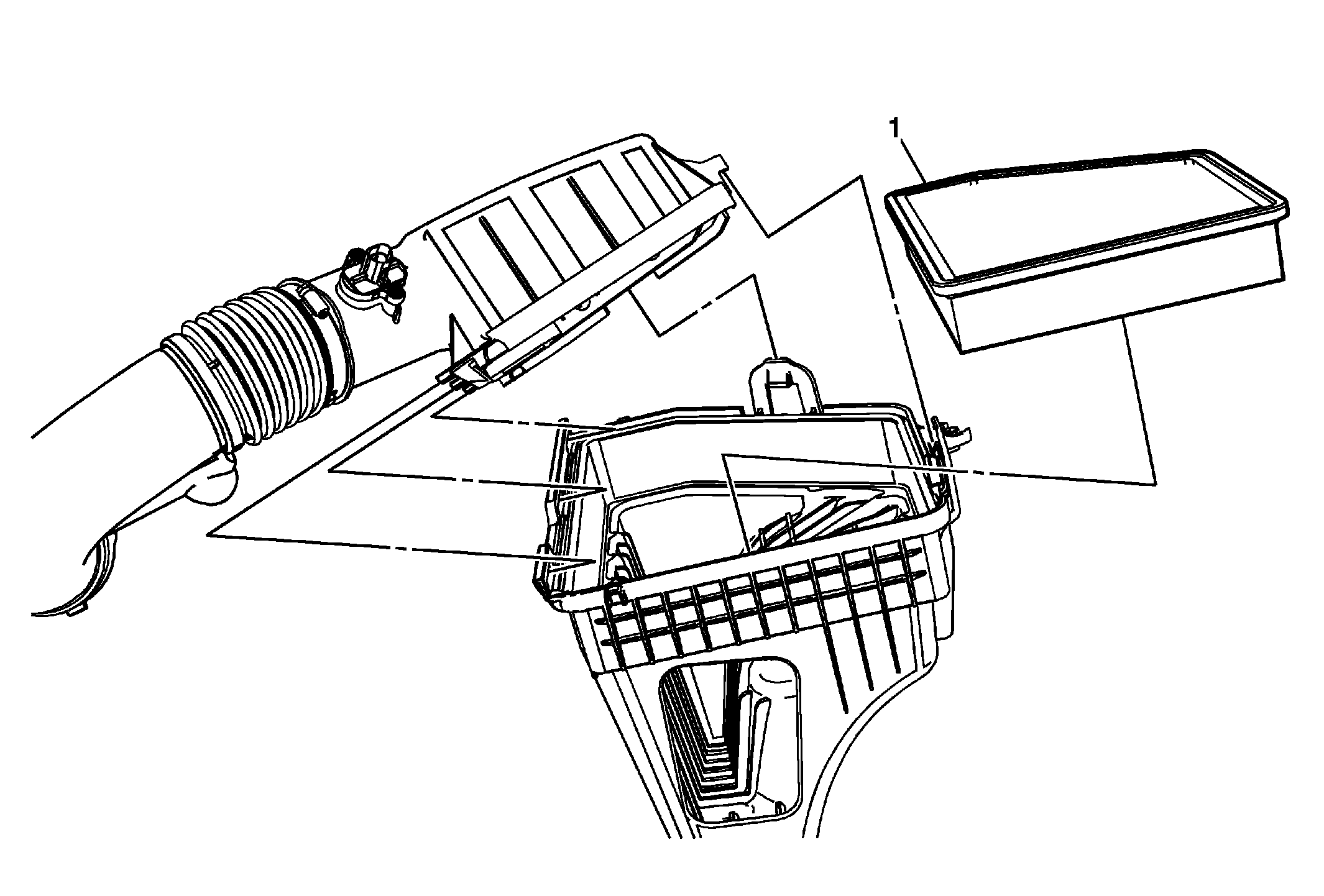

Fig 1: Air Cleaner Element
GM2196566Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
1 Air Cleaner Element
CAUTION:

Do not use any tools or pry on the air cleaner cover retainers as damage to the air cleaner will result and can cause poor air cleaner element sealing.

Procedure

  1. Disconnect the mass airflow electrical connector.
  2. Push back the retaining tabs.
