Installation Procedure

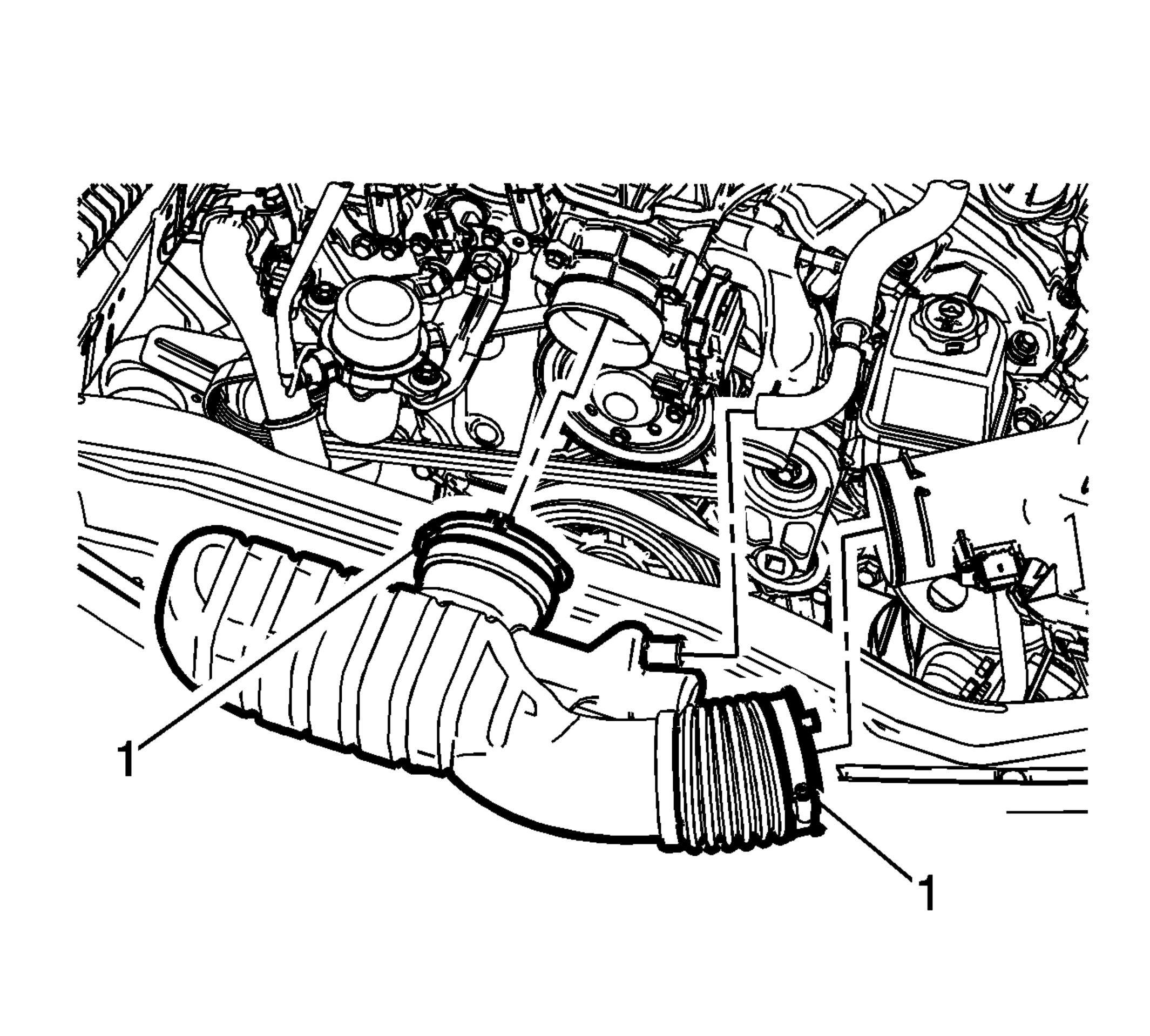

    Fig 1: Air Cleaner Outlet Duct & Retaining Clamps
    GM2665040Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner outlet duct to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Position the air cleaner outlet duct clamps (1) and tighten to 2 N.m (18 lb in).
  3. Install the positive crankcase ventilation (PCV) hose to the air cleaner outlet duct.
