Installation Procedure
- Make sure that the following components are free of damage, clean and dry before installation. Replace any damaged components.
- Fuel feed intermediate pipe connections
- Right fuel rail high pressure fuel connection
- Left fuel rail high pressure fuel connection
- High pressure fuel pump high pressure fuel connection

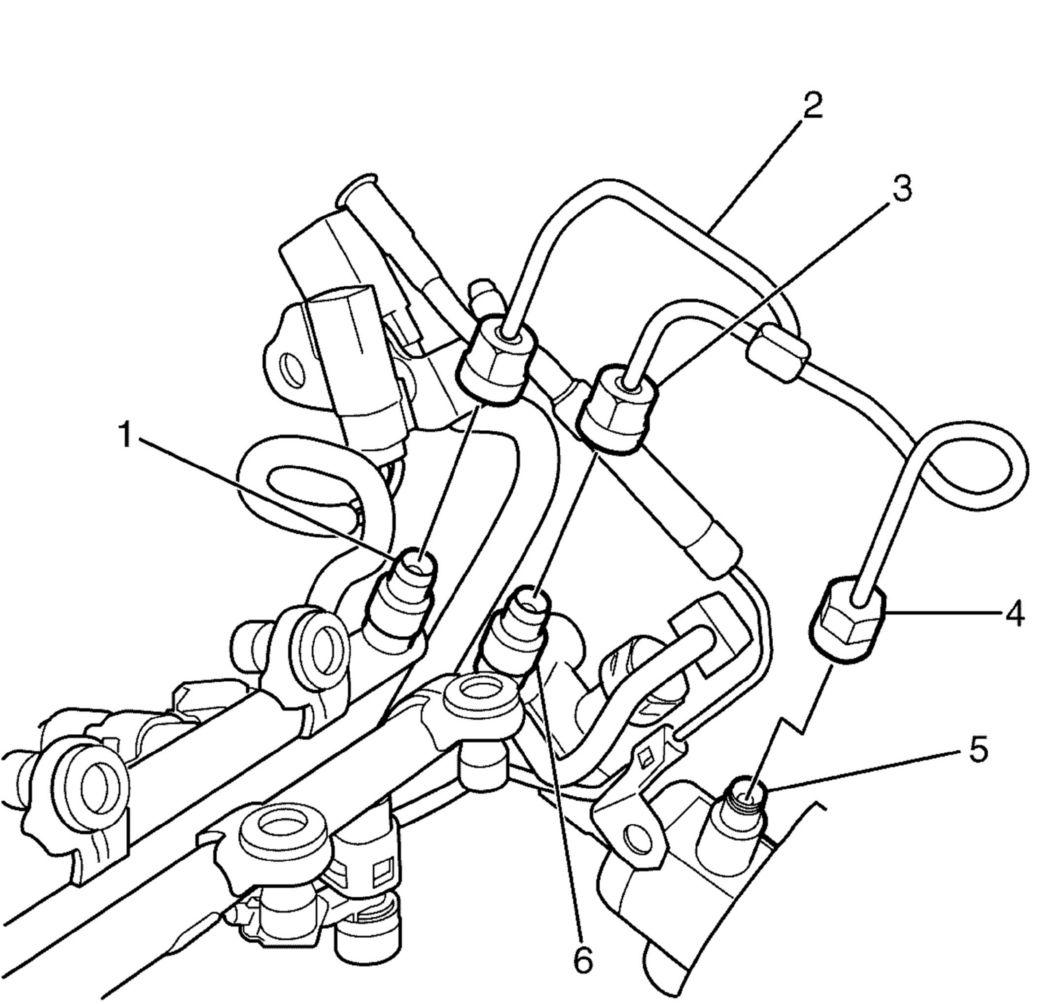

- Install a NEW fuel feed intermediate pipe (2) to the engine.
- Hand tighten the fuel feed intermediate pipe (2) to the high pressure fuel pump (5).
- Hand tighten the fuel feed intermediate pipe (2) to the left fuel rail (6).
- Hand tighten the fuel feed intermediate pipe (2) to the right fuel rail (1).
- Tighten all the fuel feed intermediate pipe connections.
- Tighten the connections first pass to 16 Y (12 lb ft).
- Tighten the connections final pass to 32 Y (24 lb ft).
- Inspect for leaks using the following procedure:
- Start the engine and run the engine for 5 seconds.
- Turn the engine OFF, for 10 seconds.
- Inspect for fuel leaks.
- Install the fuel pipe shield. Refer to Fuel Pipe Shield Replacement .
CAUTION:
Refer to Fastener Caution .
