Installation Procedure

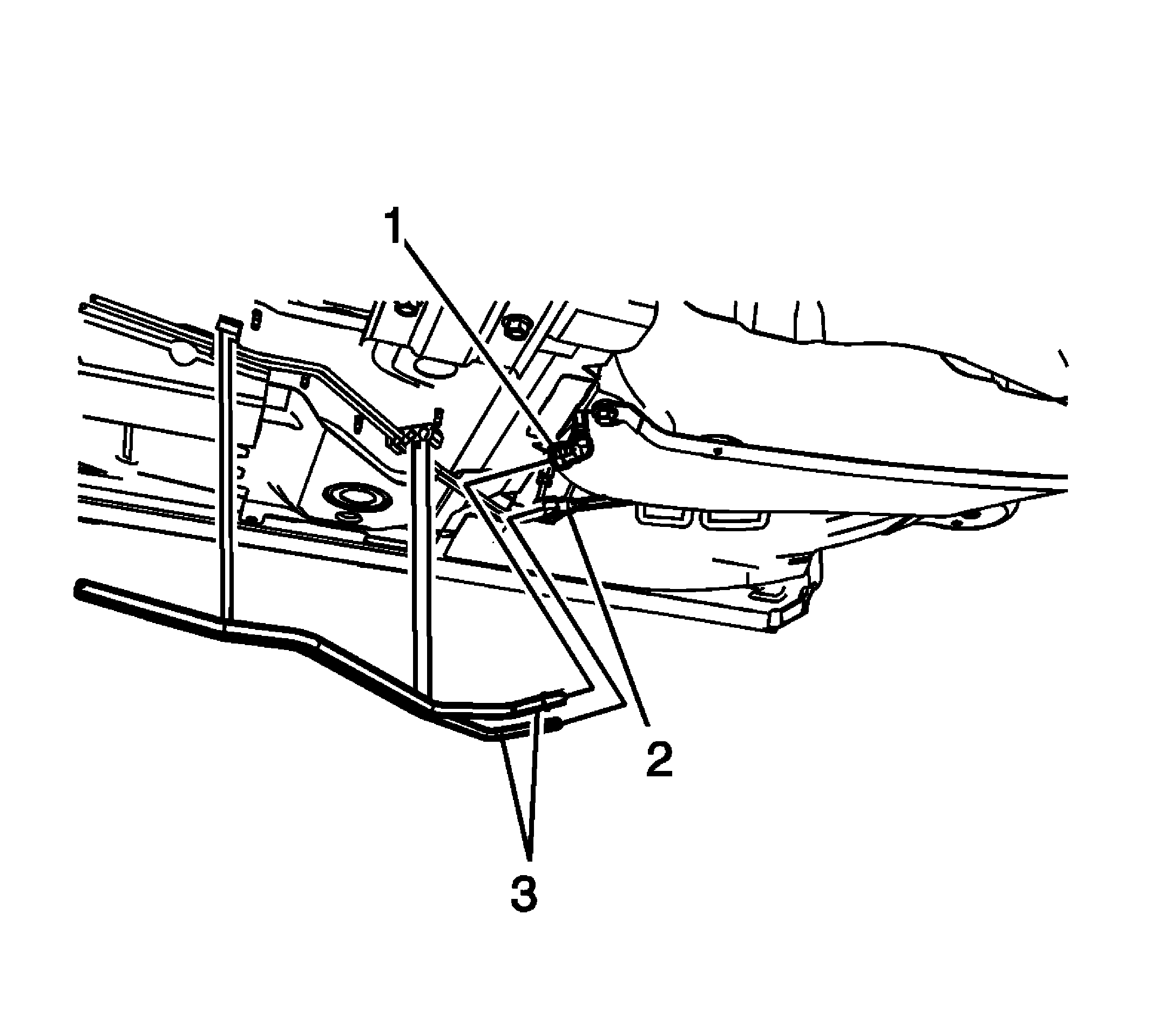

    Fig 1: Fuel Feed Line & Evaporative Emission Line
    GM2194775Courtesy of GENERAL MOTORS COMPANY
  1. Install the pipes (3) to the vehicle and connect the evaporative emission line (2) and the fuel fed line (1) Refer to Metal Collar Quick Connect Fitting Service , and Plastic Collar Quick Connect Fitting Service .

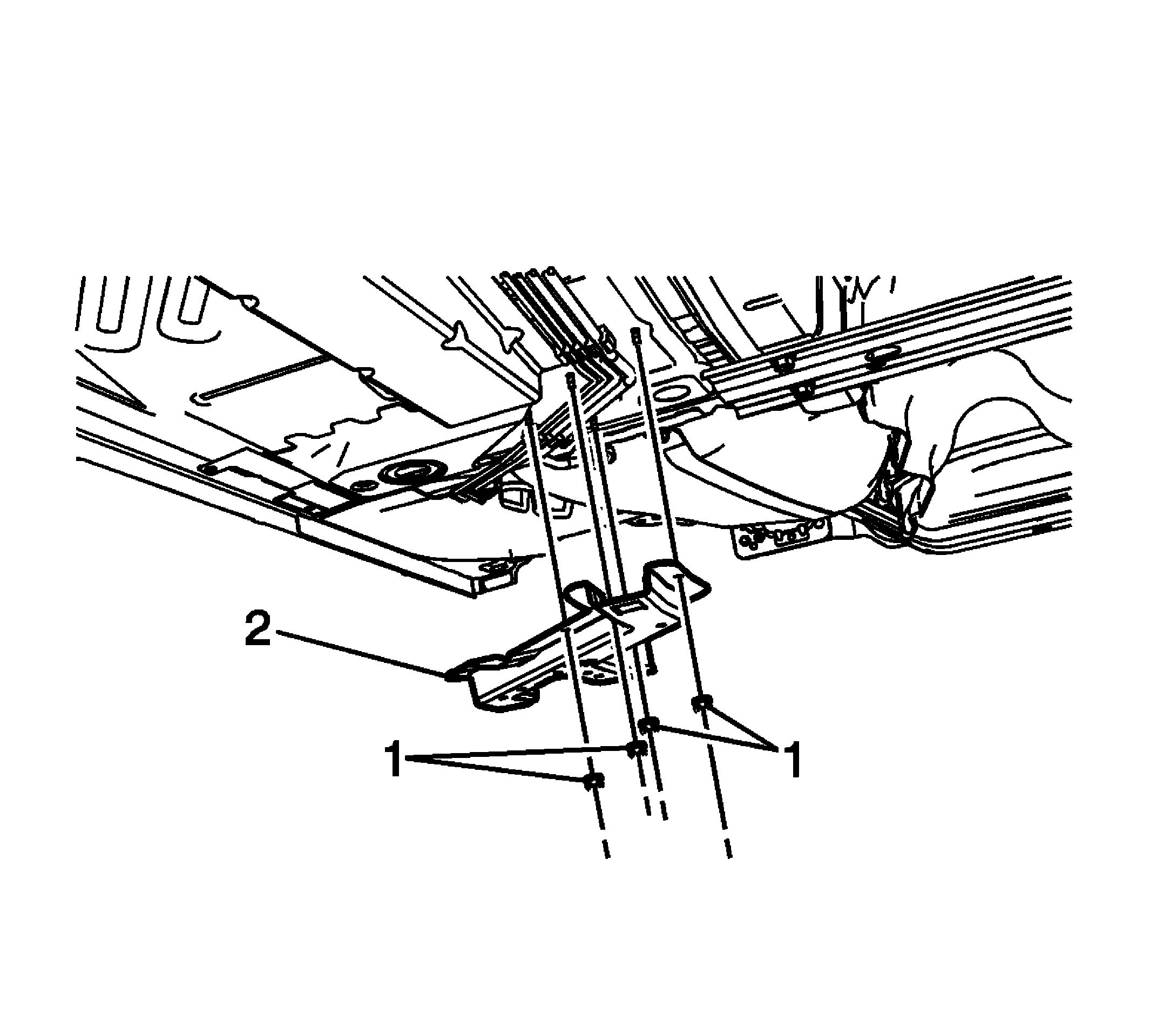

    2. Fig 2: Protector Bracket Fasteners & Bracket
    GM2194773Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the protector bracket (2) and the bracket fasteners (1) then tighten to 3 N.m(27 lb in).

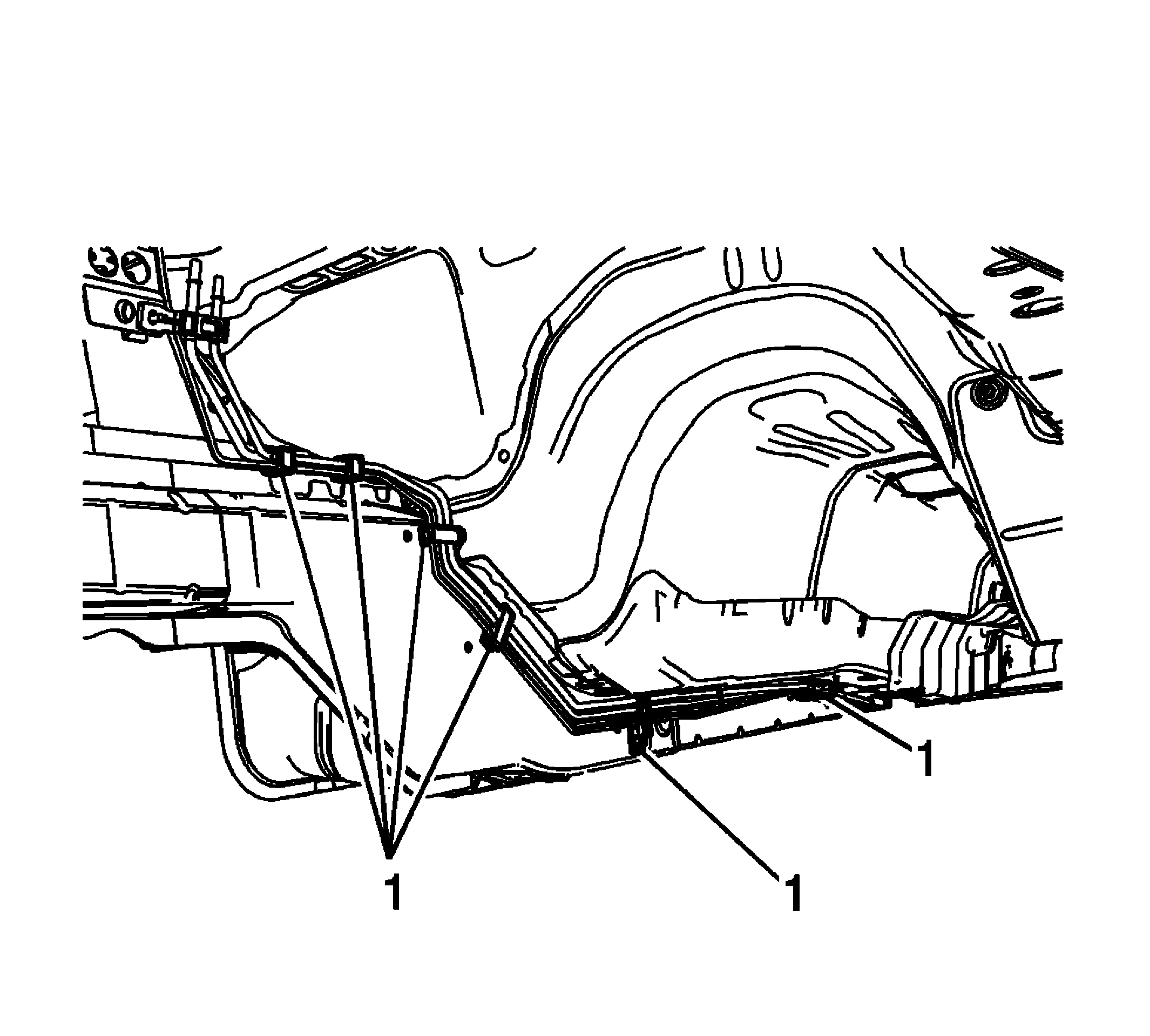

    3. Fig 3: Fuel Feed Line & Evaporative Emission Line Clips
    GM2194747Courtesy of GENERAL MOTORS COMPANY
  3. Install the fuel feed line and the evaporative emission line to the clips (1).

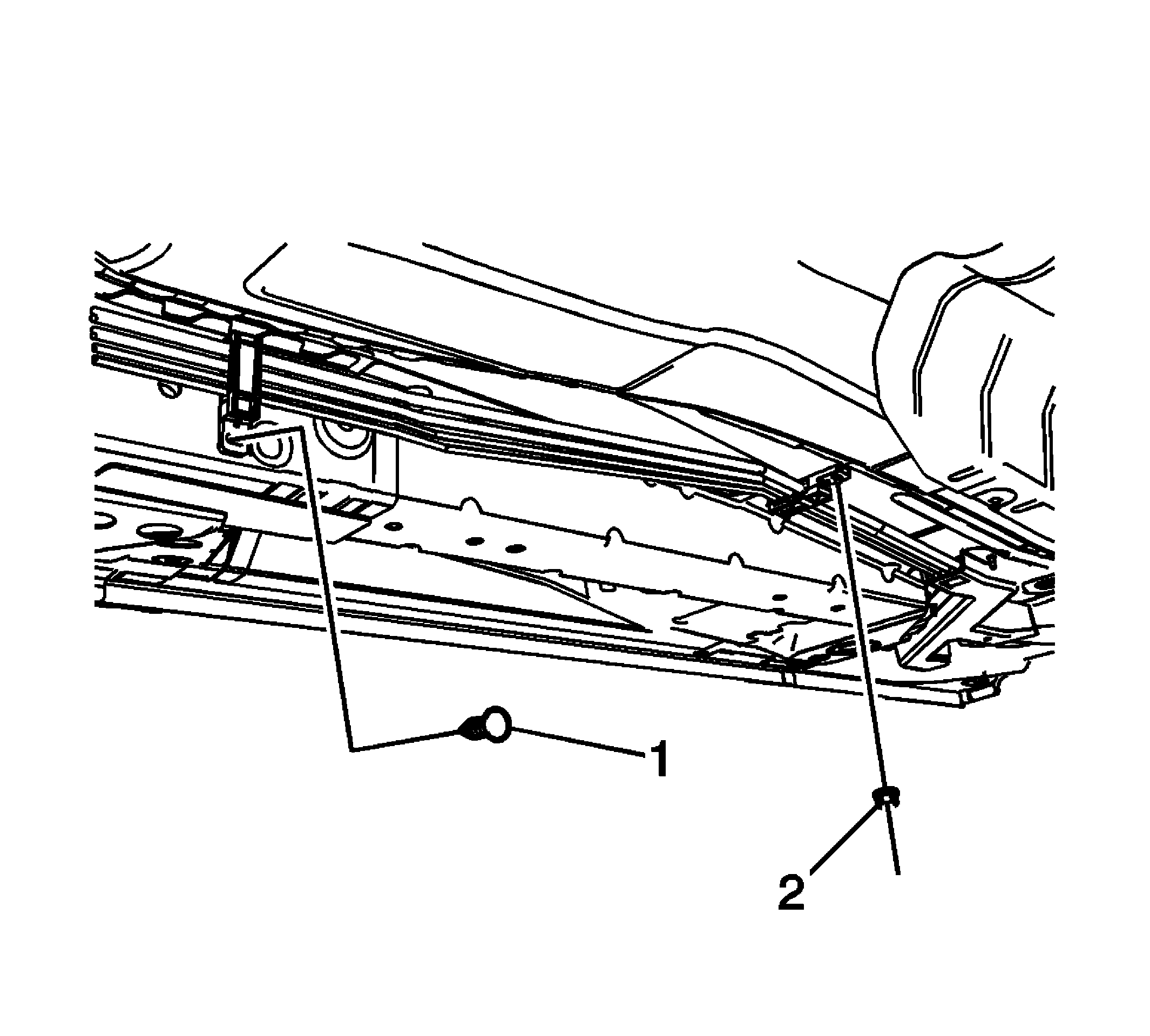

    4. Fig 4: Plastic Retainer & Retaining Nut
    GM2194746Courtesy of GENERAL MOTORS COMPANY
  4. Install the plastic retainer (1) and the retaining nut (2), then tighten to 3 N.m (27 lb in).

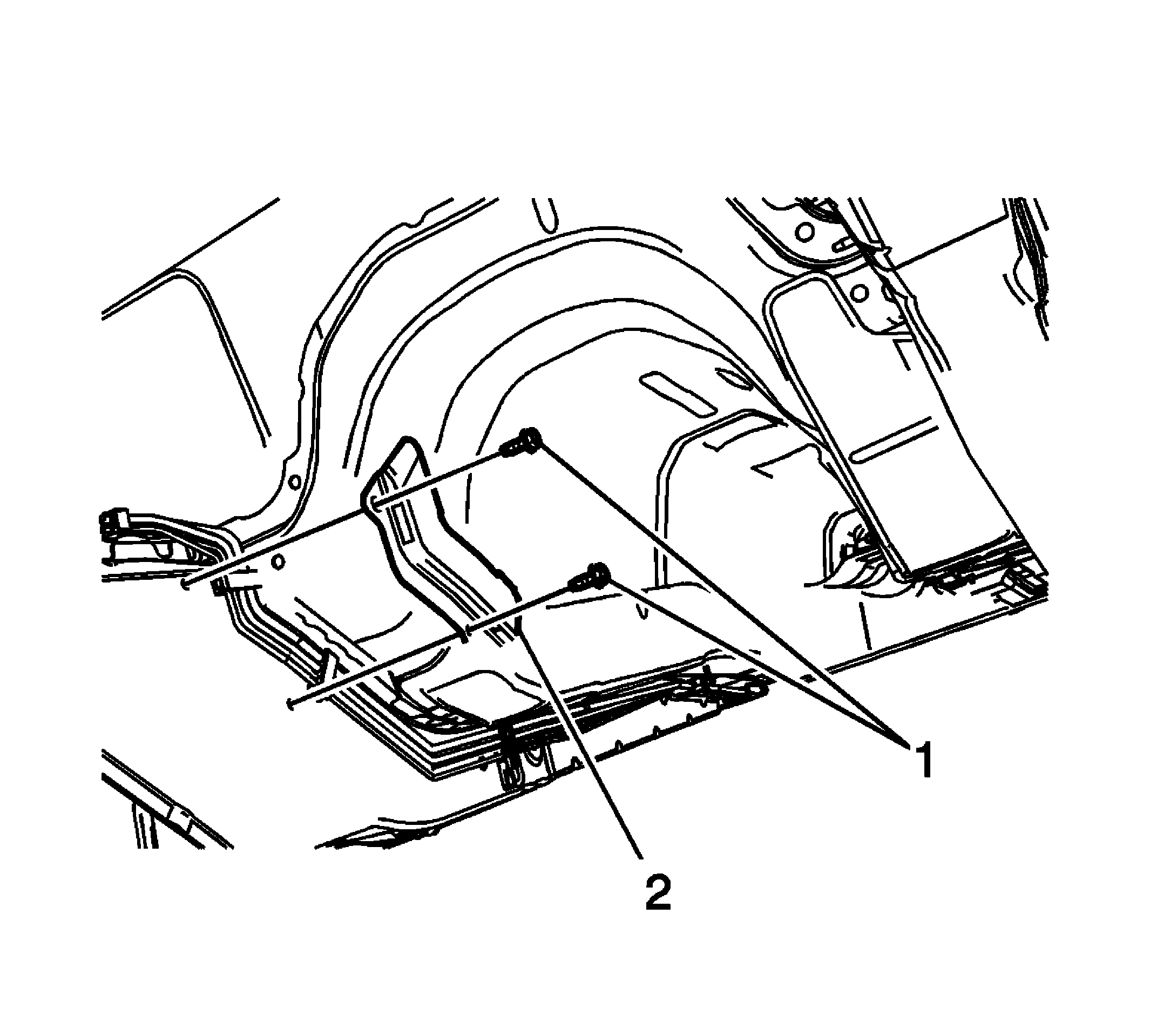

    5. Fig 5: Brake Pipe Heat Shield Fastener & Heat Shield
    GM2194740Courtesy of GENERAL MOTORS COMPANY
  5. Install the heat shield (2) and the brake pipe heat shield fastener (1), then tighten to 22 N.m (16 lb ft).

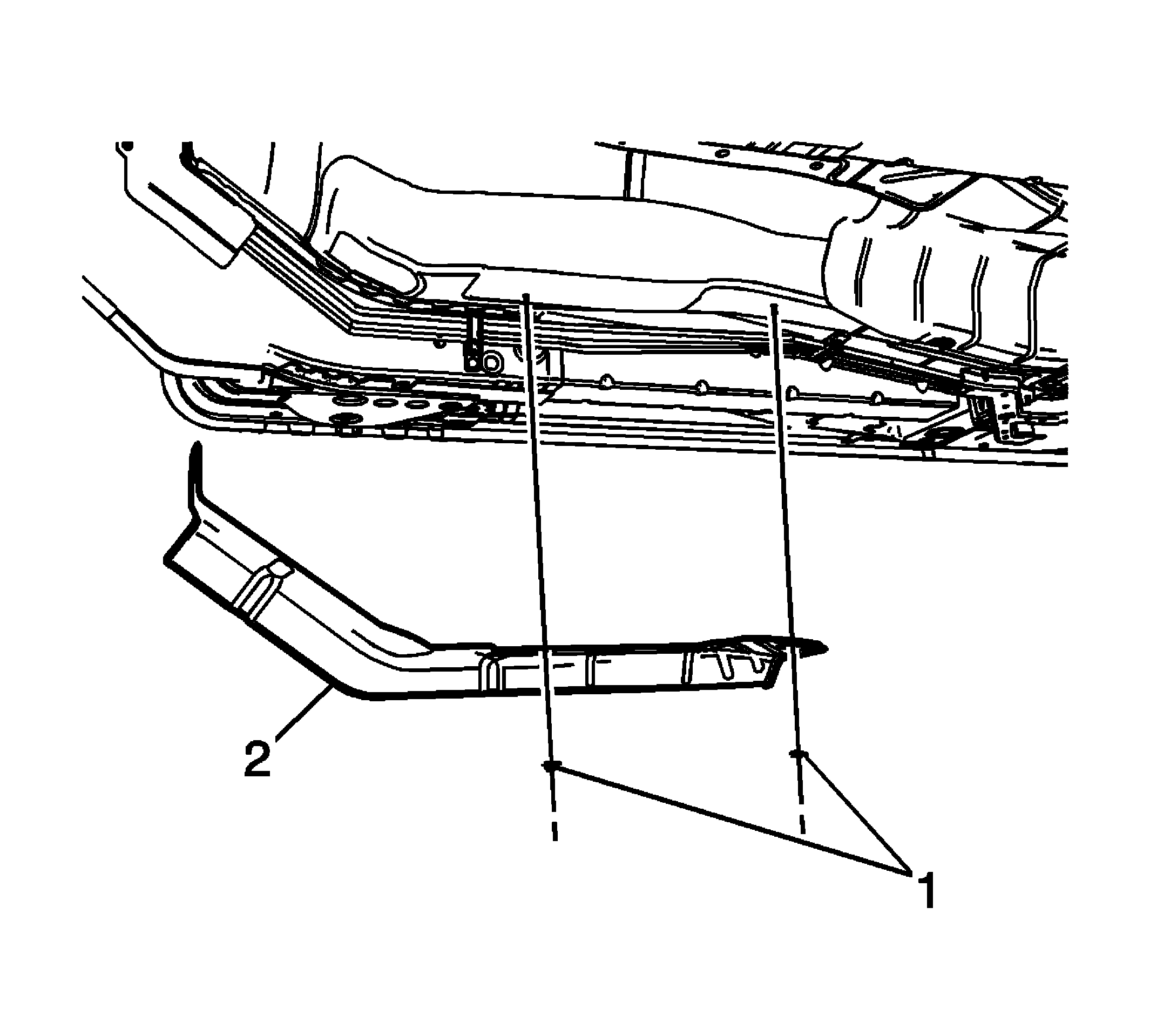

    6. Fig 6: Exhaust Heat Shield Fastener & Exhaust Heat Shield
    GM2194739Courtesy of GENERAL MOTORS COMPANY
  6. Install the exhaust heat shield (2) and the exhaust heat shield fastener (1), then tighten to 3 N.m (27 lb in).

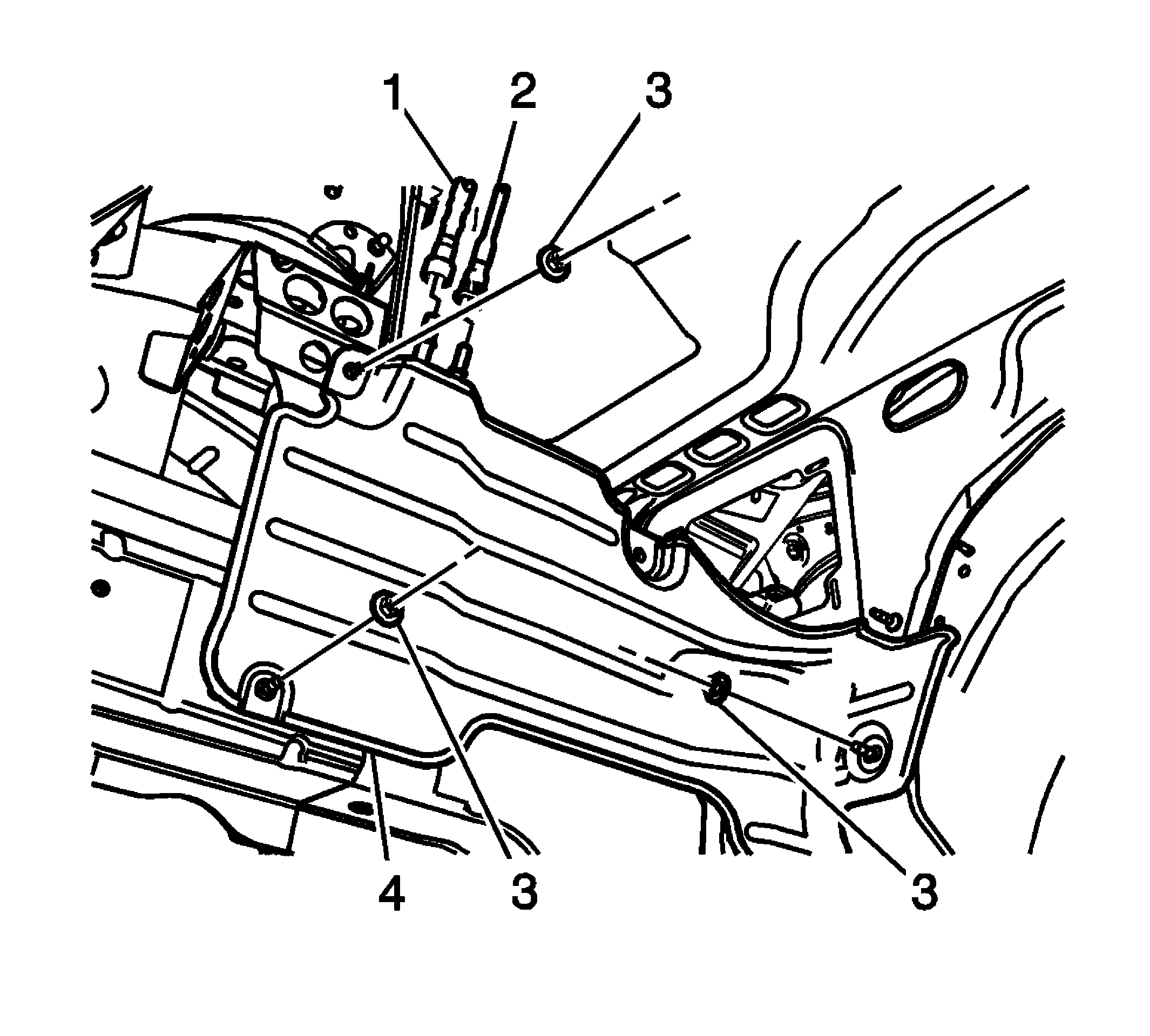

    7. Fig 7: Fuel Feed Connector, Evaporative Emission Connector, Exhaust Heat Shield & Fasteners
    GM2194736Courtesy of GENERAL MOTORS COMPANY
  7. Install the exhaust heat shield (4) and the exhaust heat shield fasteners (3), then tighten to 6 N.m (53 lb in).
  8. Connect the fuel feed connector (1) and the evaporative emission connector (2). Refer to Metal Collar Quick Connect Fitting Service , and Plastic Collar Quick Connect Fitting Service .
  9. Inspect for leaks using the following procedure:
    1. Turn ON the ignition, with the engine OFF for 2 seconds.
    2. Turn OFF the ignition, for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
