Fuel Pipe Shield Replacement

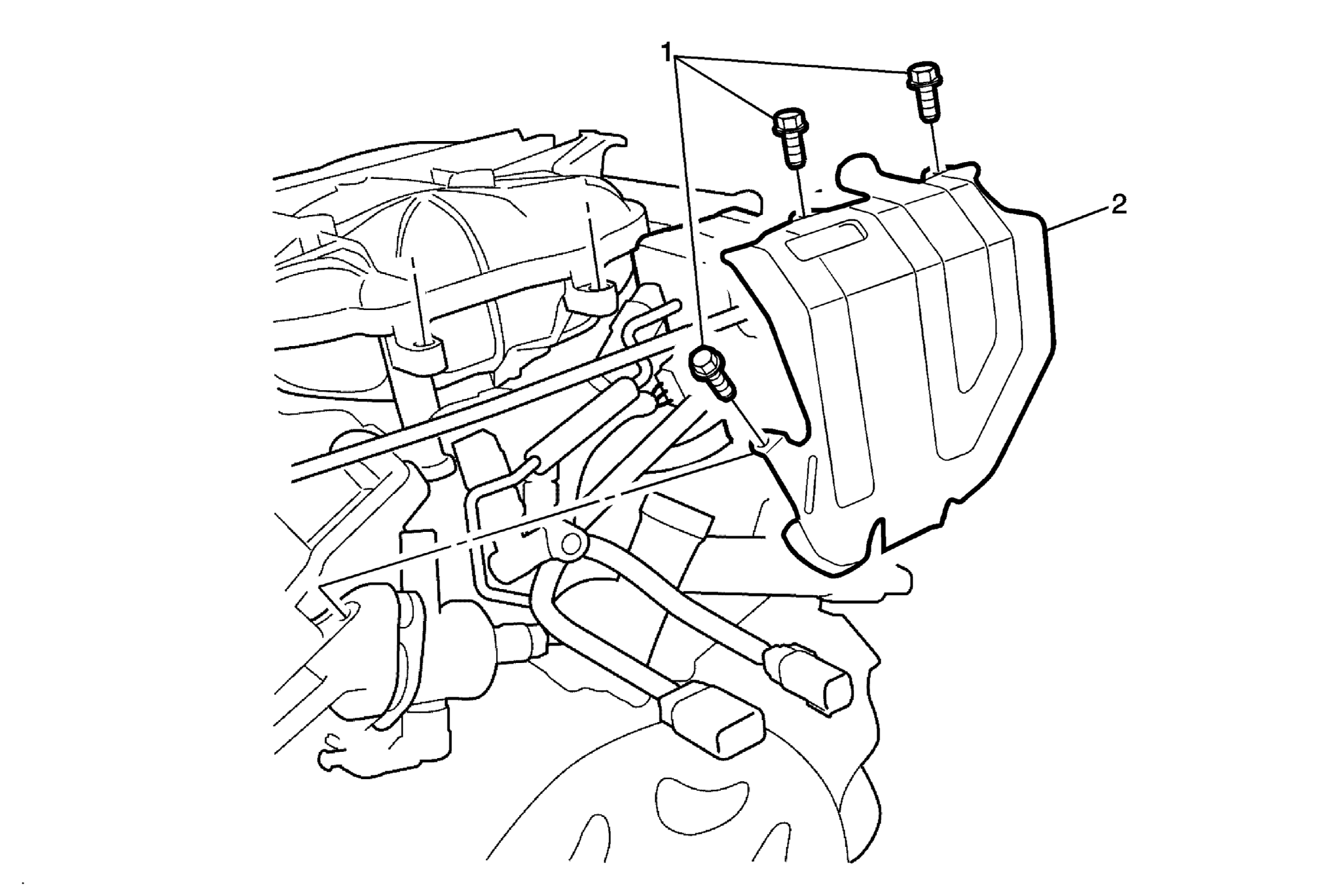

Fig 1: Fuel Pipe Shield & Retaining Bolt
GM2282084Courtesy of GENERAL MOTORS COMPANY
Fuel Pipe Shield Replacement

Callout Component Name
Preliminary Procedures
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Fuel Pipe Shield Retaining Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Fuel Pipe Shield
