Fuel Pump Flow Control Module Replacement

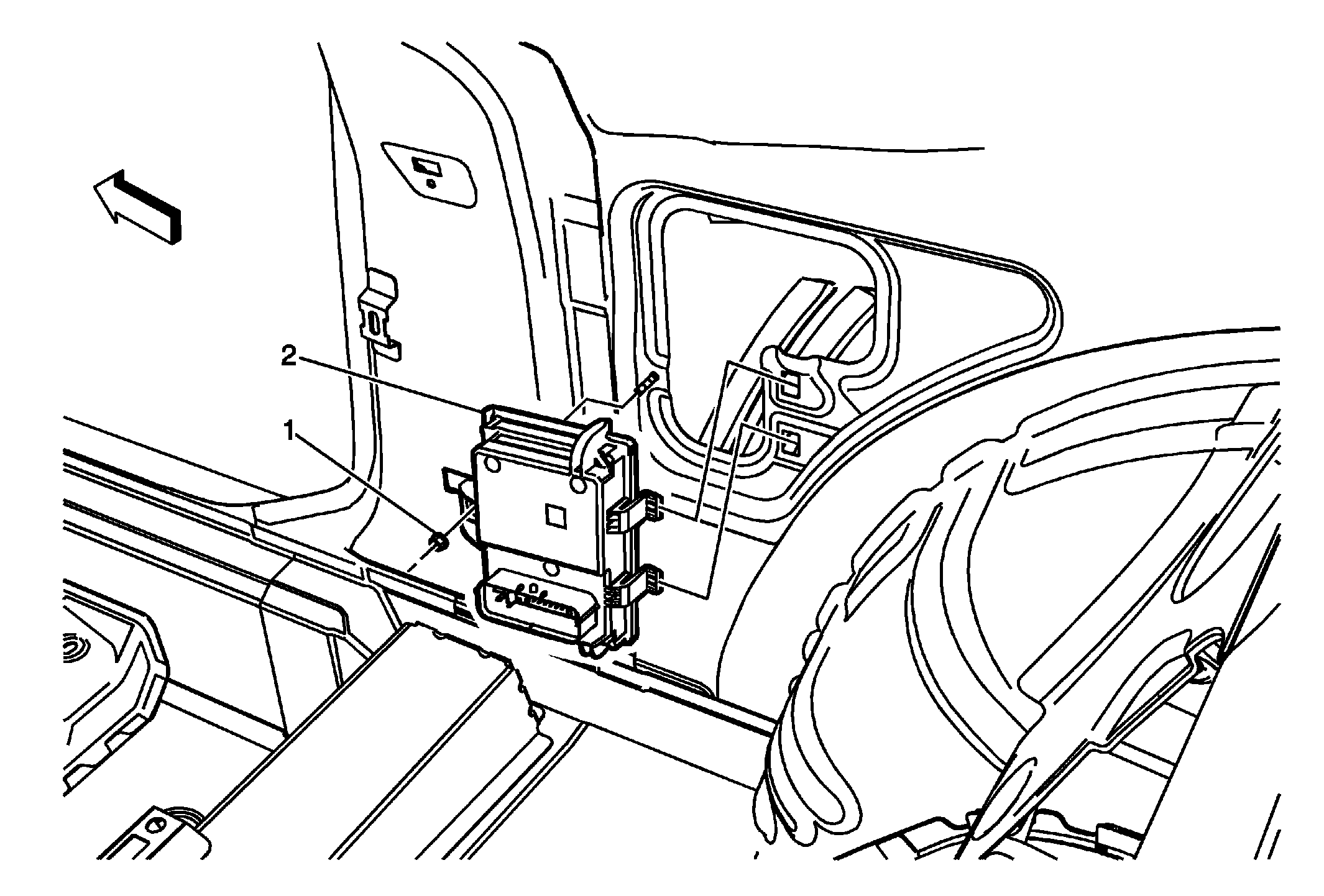

Fig 1: Fuel Pump Flow Control Module And Fastener
GM2213520Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Flow Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the right side quarter trim panel. Refer to Quarter Trim Panel Replacement (Coupe) , Quarter Trim Panel Replacement (Convertible) .
1 Fuel Pump Flow Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Fuel Pump Flow Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
