Installation Procedure

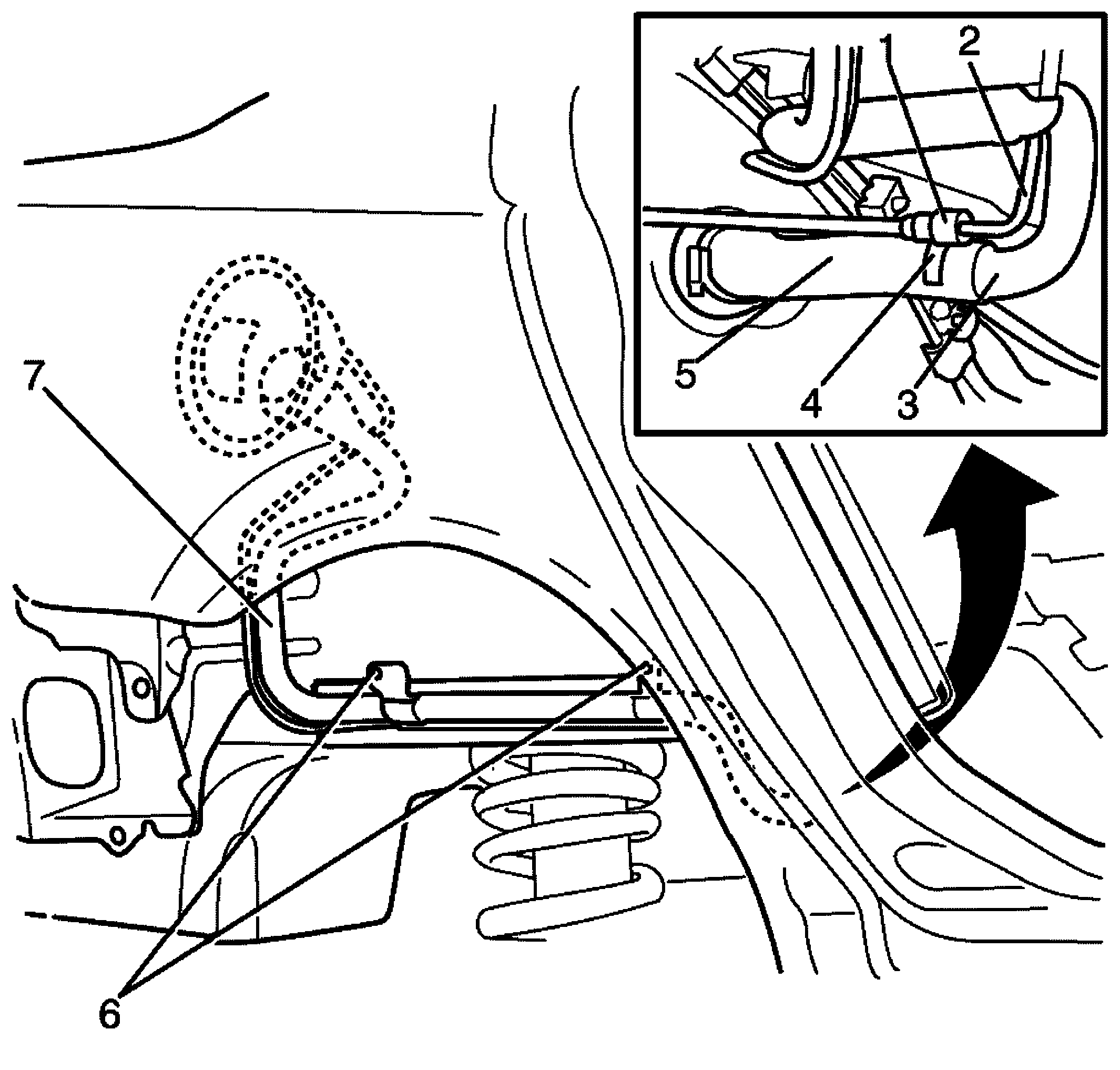

    Fig 1: View Of Quick Connect Fitting, EVAP Line, Fuel Filler Tube & Hose With Clamp
    GM2121477Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel filler tube (7) to the vehicle.
  2. Connect the fuel filler tube (3) to the fuel filler hose (5).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the retaining hose clamp (4) and tighten the fuel filler tube hose clamp (3) to 3.5 N.m (31 lb in).
    4. NOTE:

    Listen for and audible click to confirm correct installation.

  4. Connect the evaporative emission (EVAP) line (2) to the quick connect fitting (1).
  5. Install the filler tube to chassis retaining bolts (6) and tighten to 9 N.m (80 lb in).
  6. Install the right rear wheelhouse Liner. Refer to Rear Wheelhouse Panel Liner Replacement .
  7. Install the right rear wheel. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
