Installation Procedure

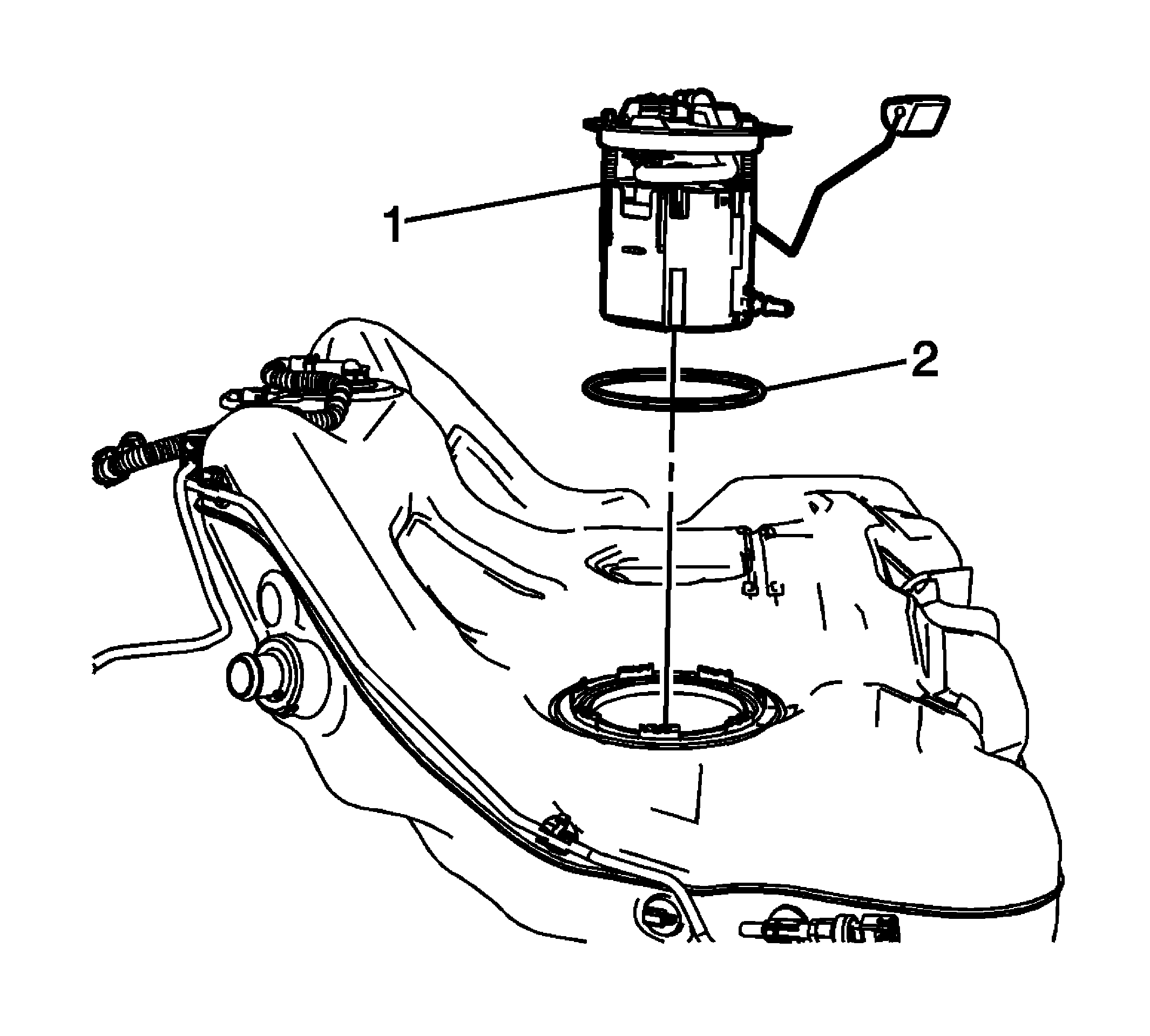

    Fig 1: Primary Fuel Tank Module & Seal
    GM2195469Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW seal (2) and partially install the primary fuel tank module (1).

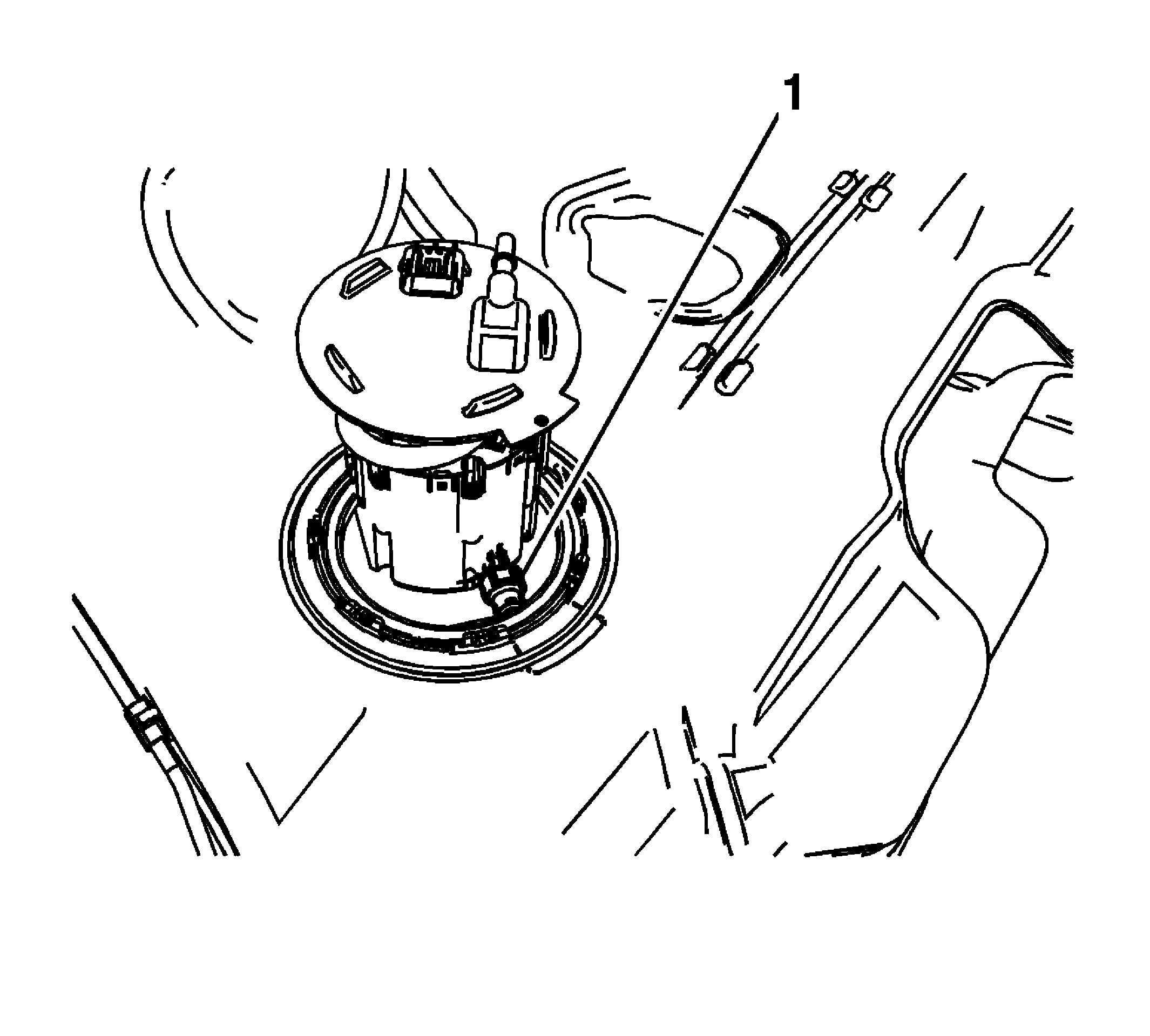

    2. Fig 2: Fuel Transfer Hose Quick Connect Fitting
    GM2195468Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel transfer hose quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service .

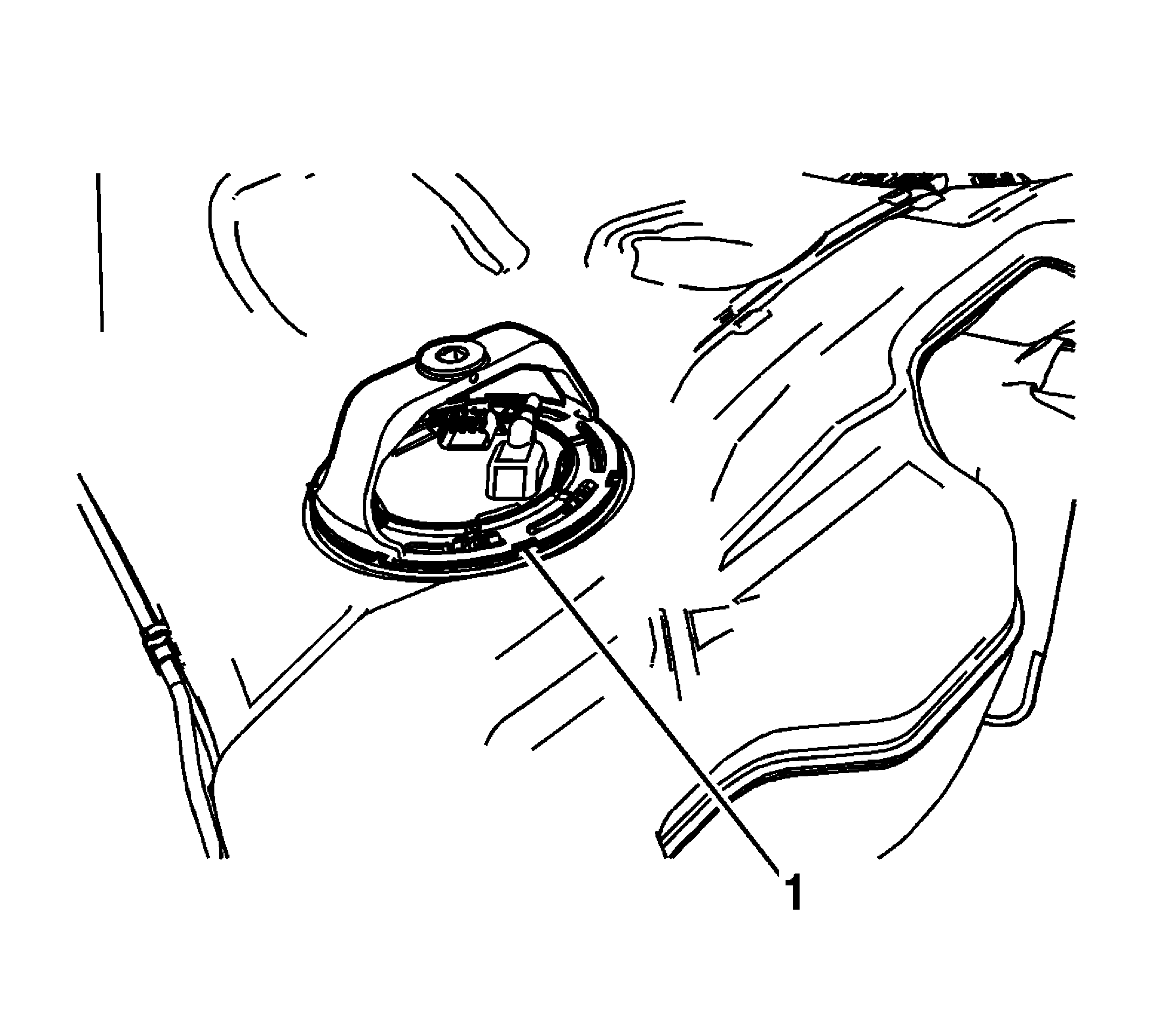

    3. Fig 3: Lock Ring
    GM2195460Courtesy of GENERAL MOTORS COMPANY
  3. Use the J 45722  wrench by turning clockwise and install the lock ring (1).

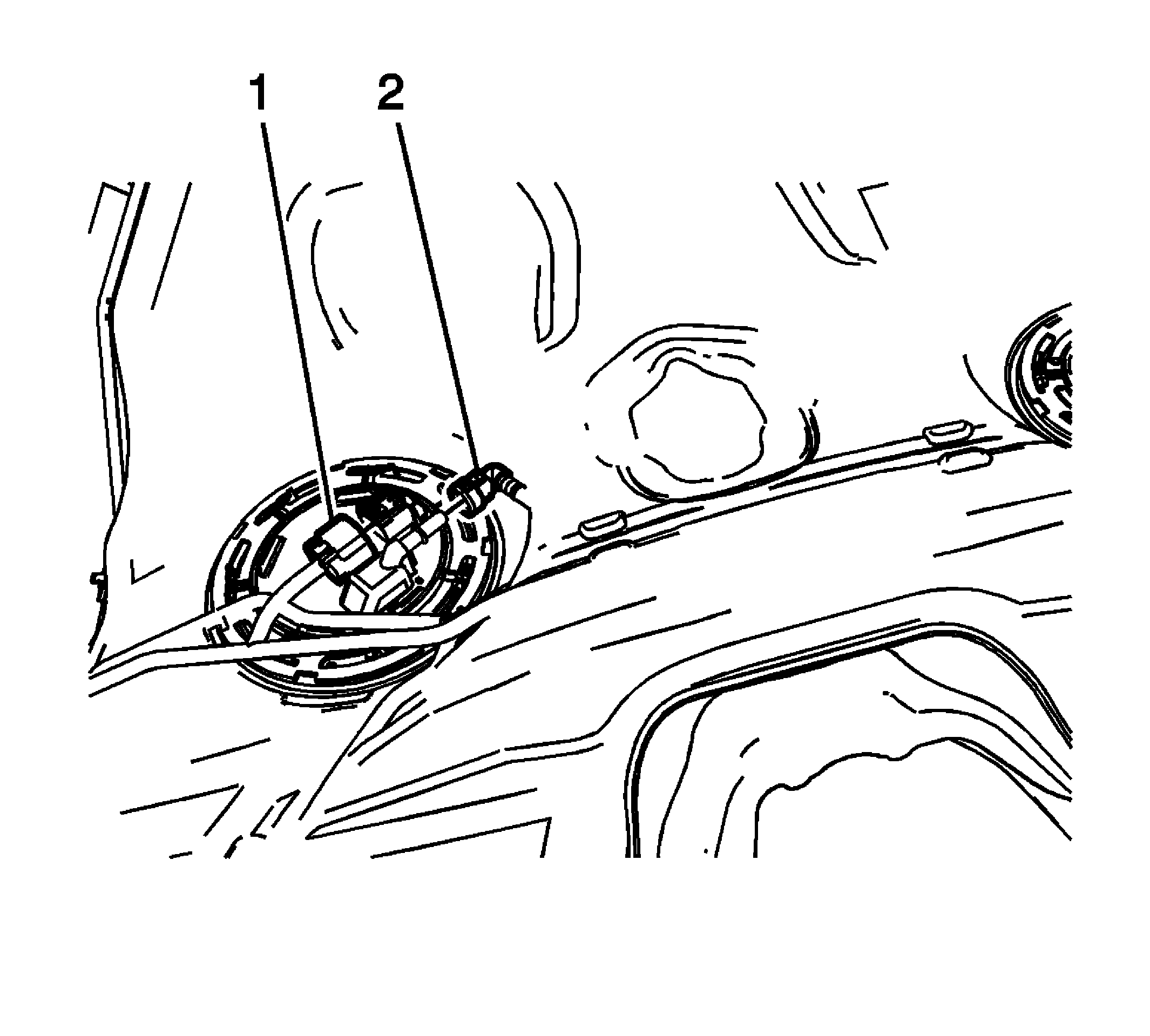

    4. Fig 4: Fuel Pump Electrical Connector & Fuel Feed Line
    GM2195459Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel pump electrical connector (1) and the fuel feed line (2). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the fuel tank. Refer to Fuel Tank Replacement .
