Installation Procedure

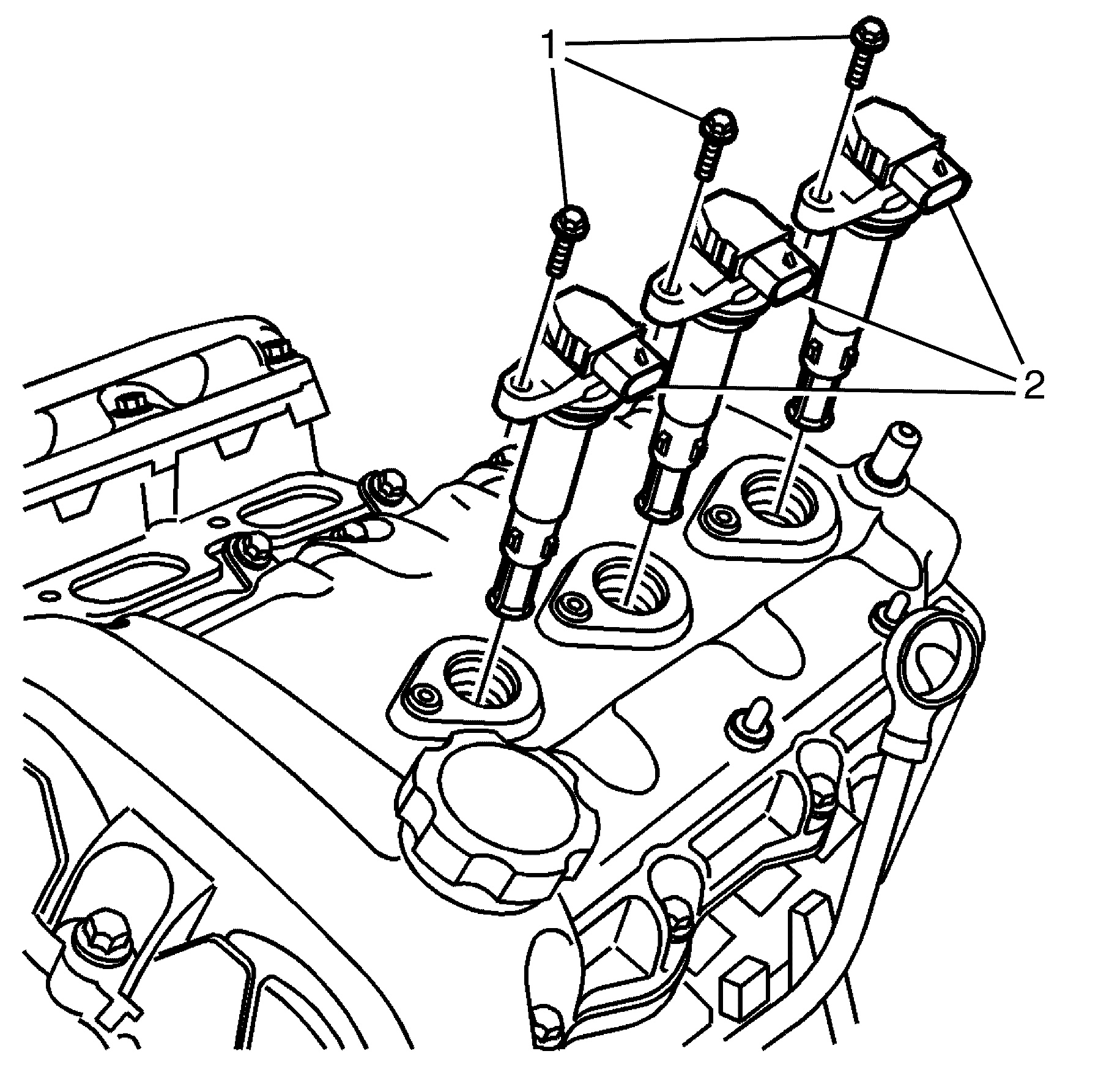

    Fig 1: Identifying Ignition Coil To Camshaft Cover Retaining Bolts
    GM1949893Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coils (2) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil to camshaft cover retaining bolts (1) and tighten to 10 N.m (89 lb in)..
  3. Install the ignition coil harness connectors to the ignition coils.
  4. Install the intake manifold sight shield.
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
