Installation Procedure

WARNING:

In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.

This will ensure proper reconnection and prevent a possible fuel leak.

During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

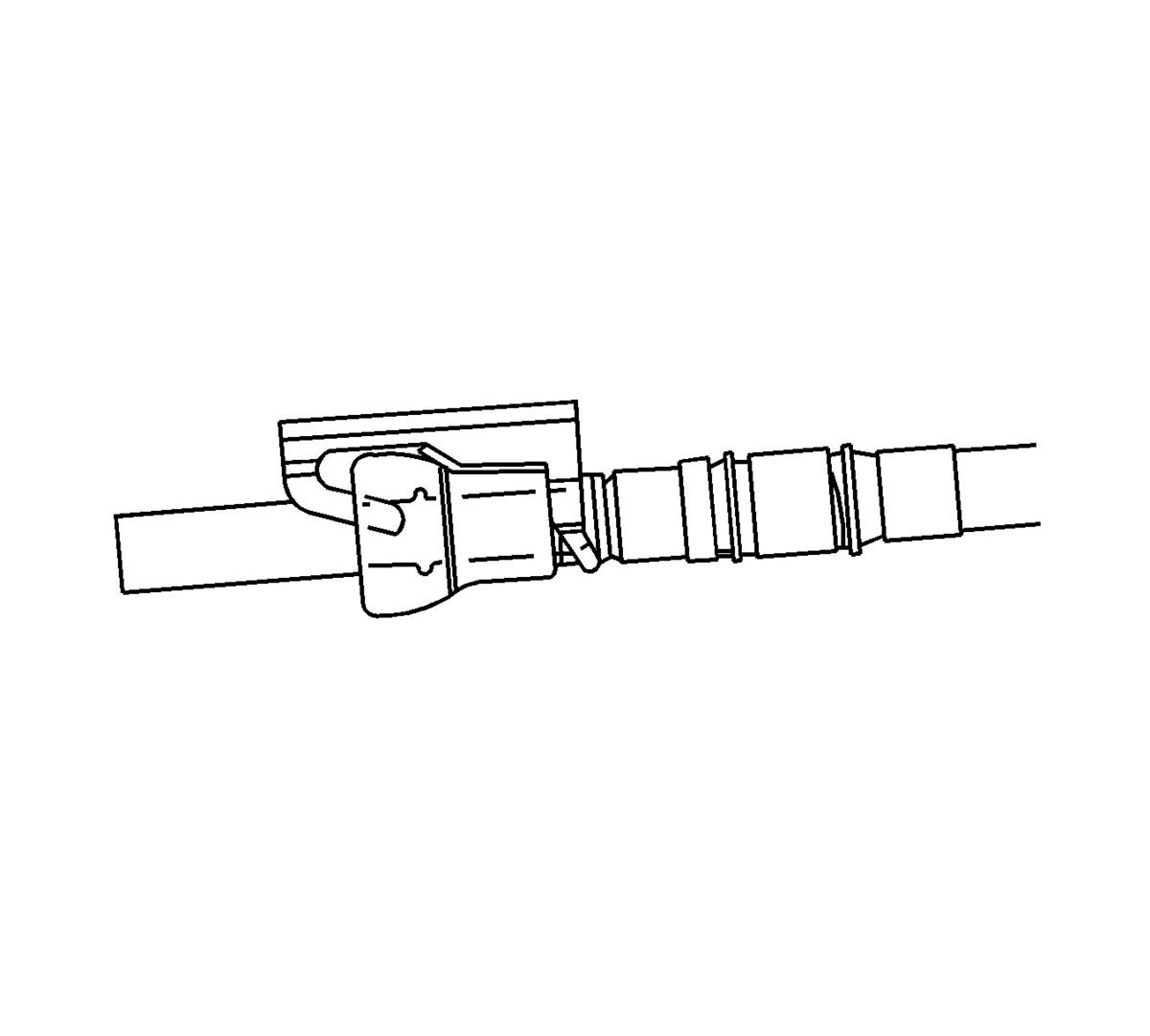

Fig 1: Oiling Male Pipe Ends (Metal Collar)

Courtesy of GENERAL MOTORS COMPANY

Apply a few drops of clean engine oil to the male pipe end.

Fig 2: View Of Connectors (Metal Collar)

Courtesy of GENERAL MOTORS COMPANY

Push both sides of the quick-connect fitting together to cause the retaining tabs to snap into place.

Fig 3: Ensuring Connection (Metal Collar) Is Secure

Courtesy of GENERAL MOTORS COMPANY

Pull on both sides of the quick-connect fitting to make sure the connection is secure.

Fig 4: View Of Fuel Pipe Retainer

Courtesy of GENERAL MOTORS COMPANY

Install the retainer to the quick-connect fitting.
Inspect for leaks using the following procedure:
1. Turn the ignition ON, with the engine OFF for 2 seconds.
2. Turn the ignition OFF, for 10 seconds.
3. Turn the ignition ON, with the engine OFF for 2 seconds.
4. Turn the ignition OFF.
5. Inspect for leaks.
