Removal Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
- Remove the retainer from the quick-connect fitting.
- Blow dirt out of the fitting using compressed air.

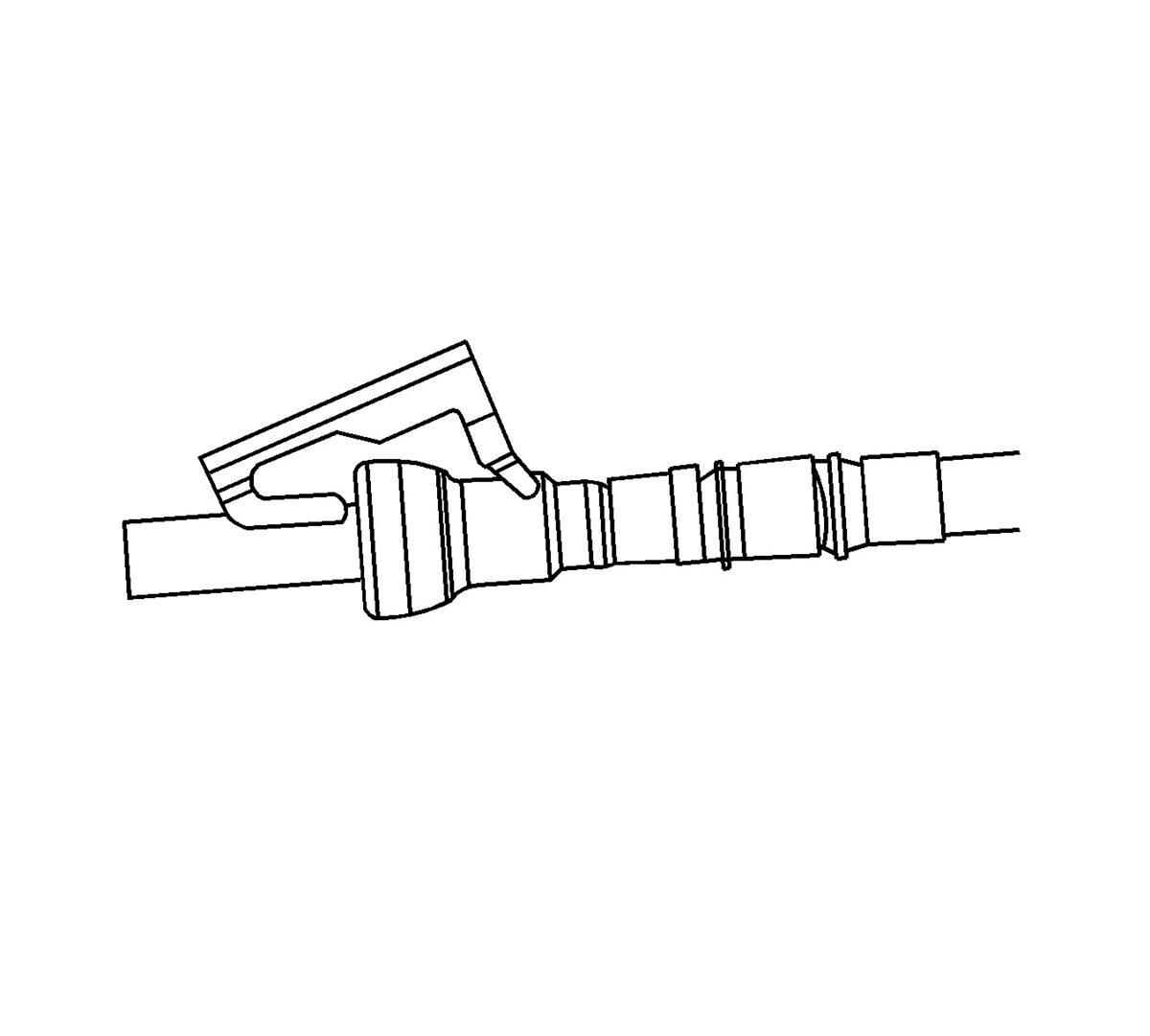

- Depending on the fuel line size and ability to access the fitting, choose the appropriate tool: J 37088-A fuel line disconnect tool set or J 44581 fuel line disconnect tool. Insert the J 37088-A fuel line disconnect tool set or J 44581 fuel line disconnect tool into the female connector, then push inward to release the locking tabs.
- Pull the connection apart.
- Using a clean shop towel, wipe off the male pipe end.
- Inspect both ends of the fitting for dirt and burrs.
- Clean or replace the components as required.
WARNING:
Refer to Gasoline/Gasoline Vapors Warning .
WARNING:
Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.
CAUTION:
If necessary, remove rust or burrs from the fuel pipes with an emery cloth. Use a radial motion with the fuel pipe end in order to prevent damage to the O-ring sealing surface. Use a clean shop towel in order to wipe off the male tube ends. Inspect all the connections for dirt and burrs. Clean or replace the components and assemblies as required.
