Rear Toe Adjustment
- Before performing any adjustment affecting the wheel alignment, refer to Wheel Alignment Measurement .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the safety stands.
- Lower the vehicle to the ground.
- Bounce the vehicle several times to settle the suspension.
- Determine the actual rear suspension toe setting.

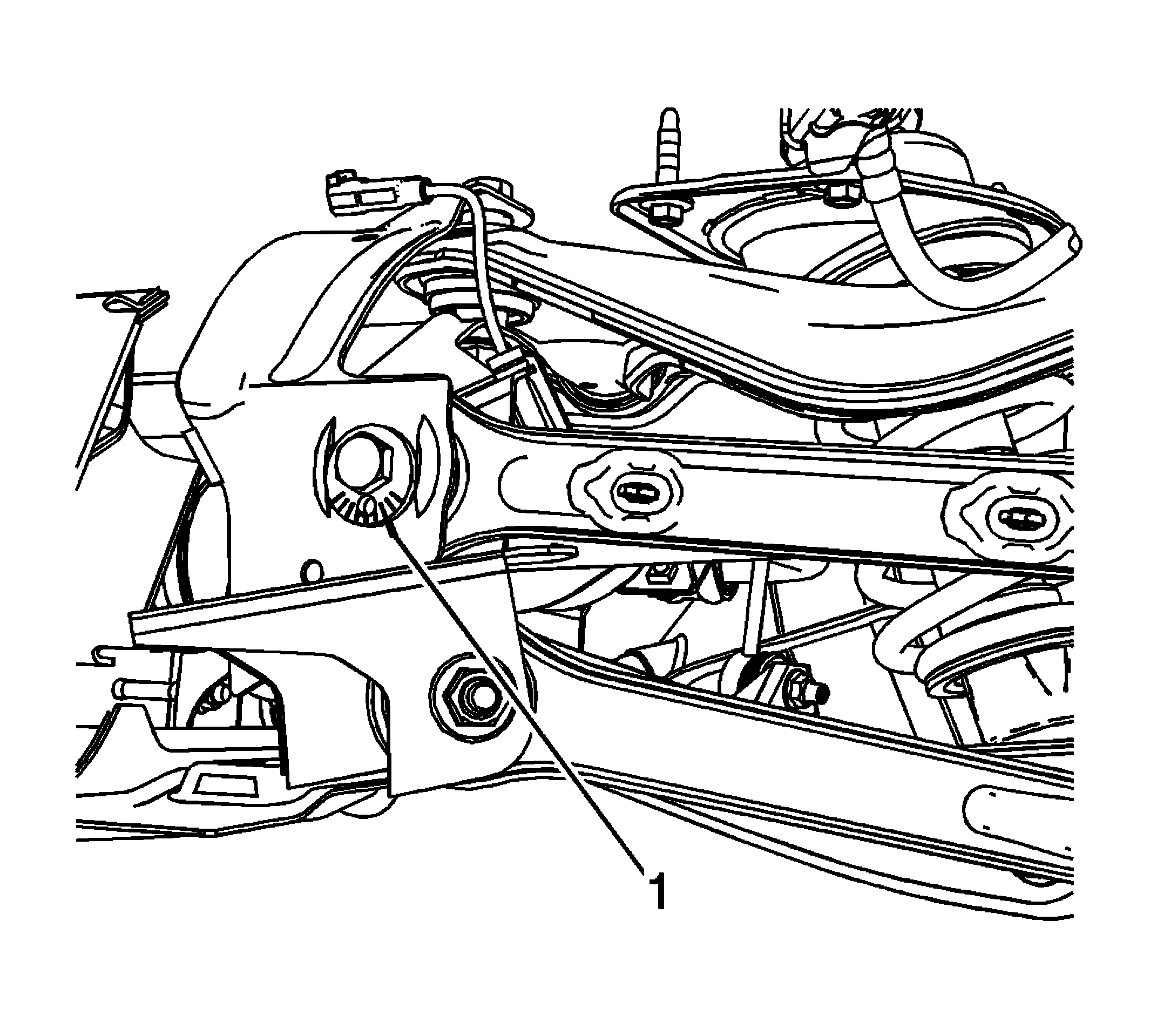

- Adjust the rear suspension toe to specification by turning adjustment cam (1). Refer to Wheel Alignment Specifications .
- Tighten the adjuster link nut to 115 N.m (85 lb ft).
- Verify that the toe is still within specifications. Refer to Wheel Alignment Specifications .
- Readjust if necessary.
NOTE:
Before checking and adjusting any wheel alignment angles bounce the vehicle to settle the suspension to normal ride height.
CAUTION:
Refer to Fastener Caution .
NOTE:
The weight of the vehicle must be on a level surface such as an alignment rack and on all four wheels before fully tightening the bolts and nuts that have been partially tightened. Failure to comply with this requirement may adversely affect the ride and handling characteristics of the vehicle.
