Shift Lock Control Wiring Schematics
>>
MYB or MYC
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
MYB or MYC

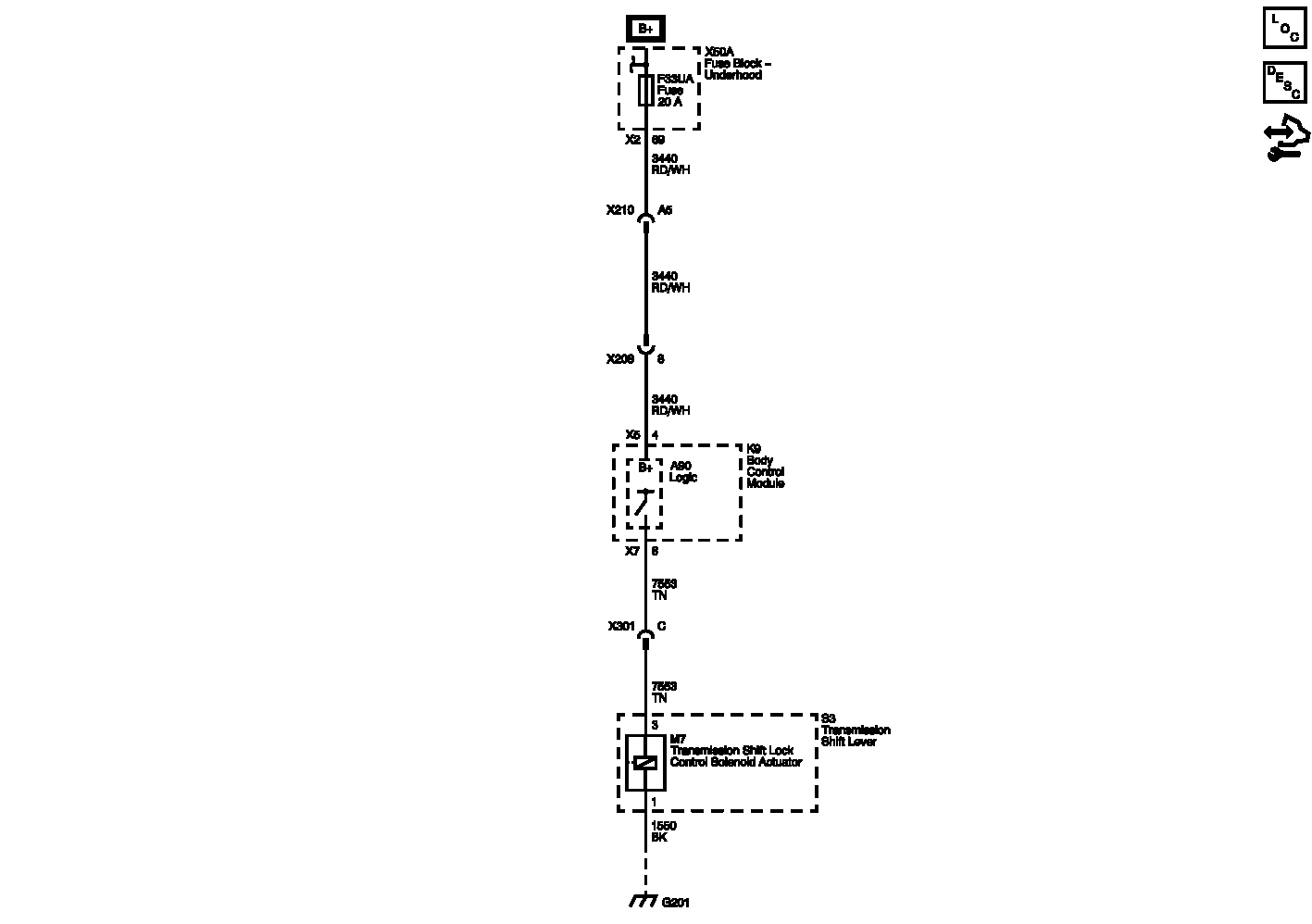

Fig 1: MYB or MYC Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
