Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

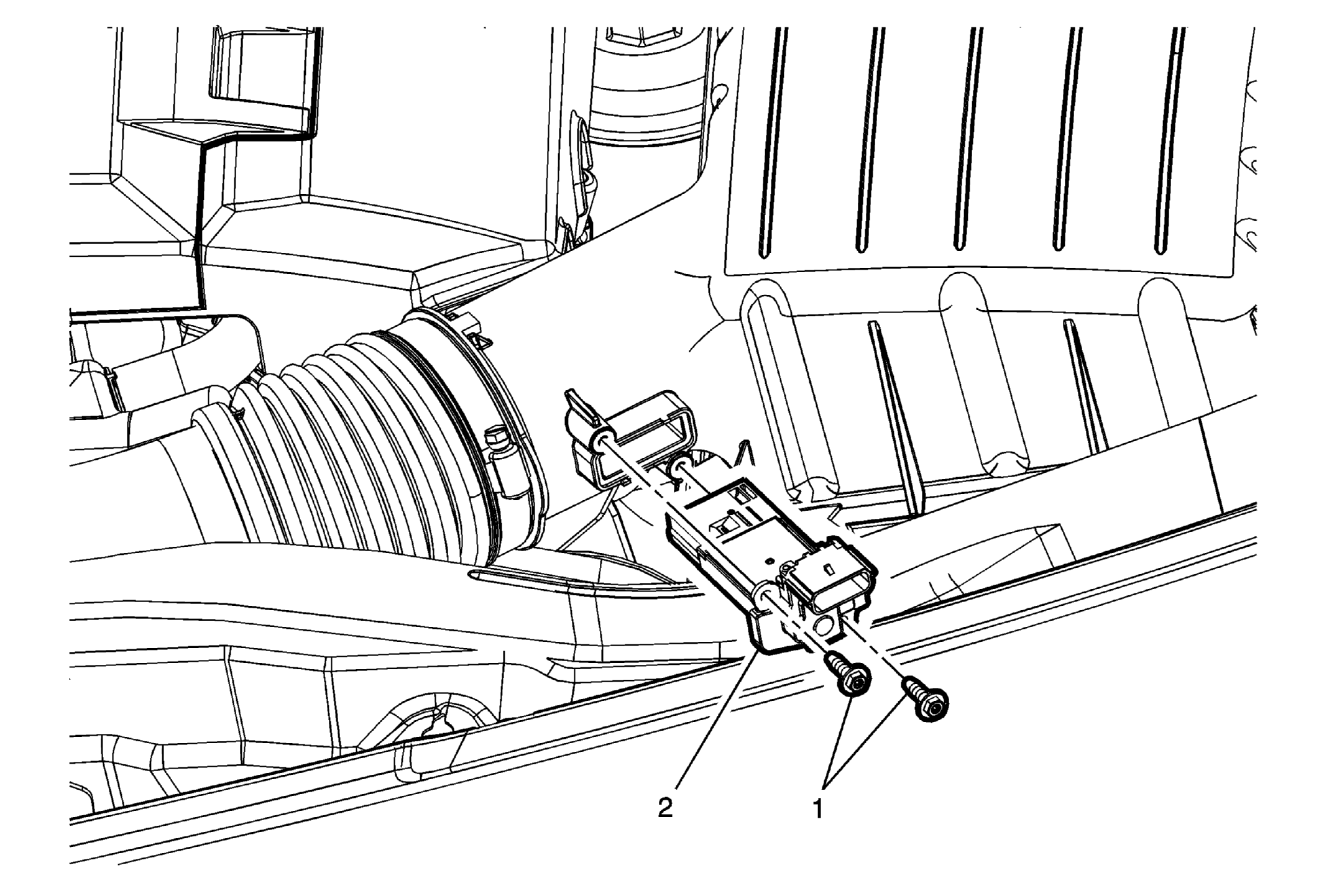

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout	Component Name
1	Mass Airflow with Intake Air Temperature Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Mass Airflow with Intake Air Temperature Sensor Procedure  Disconnect the electrical connector.
