Front of the Exhaust System Components

Powertrain Component Views

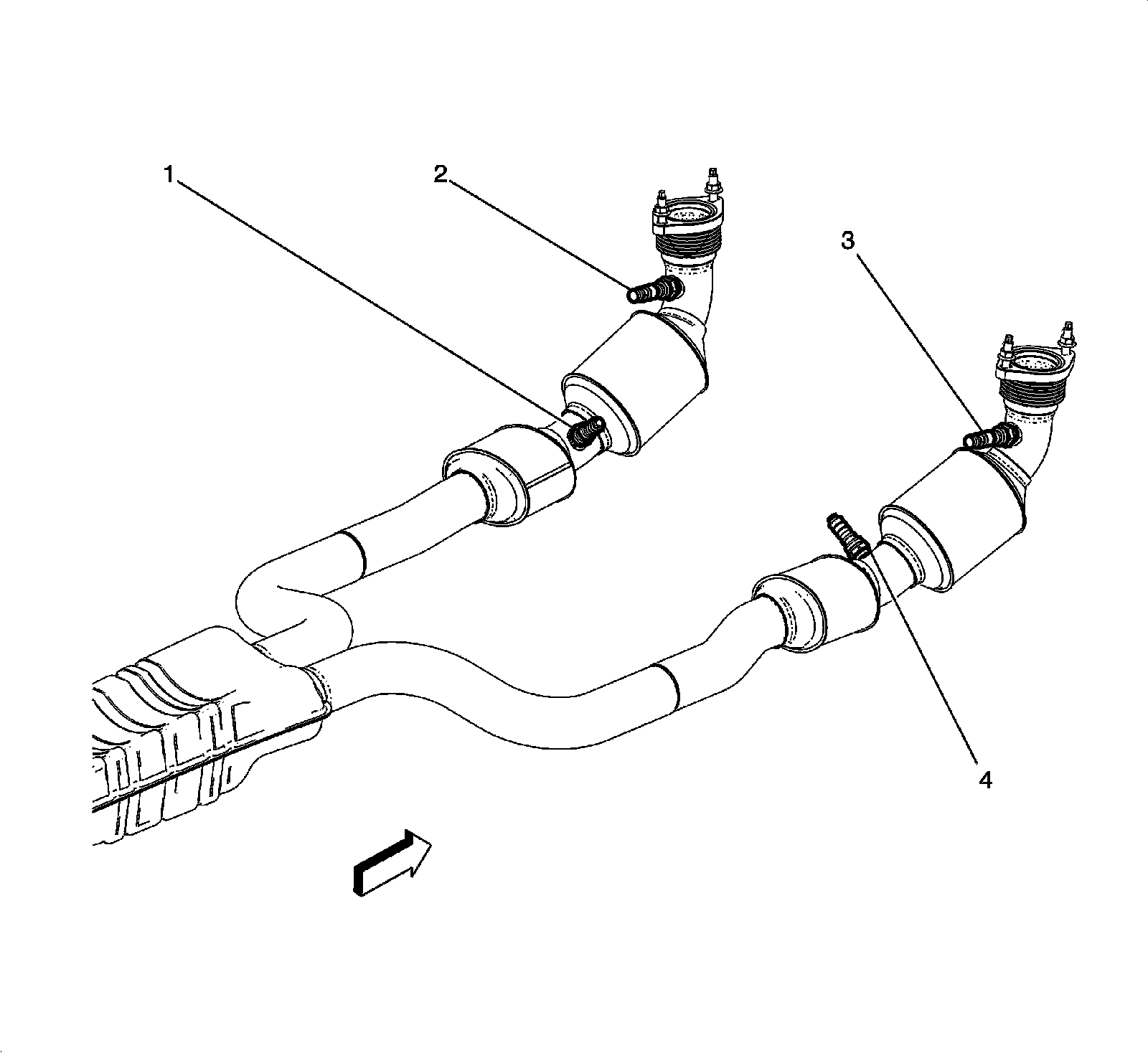

Front of the Exhaust System Components





1 - B52F Heated Oxygen Sensor Bank 2 Sensor 2 (LLT) B52D Heated Oxygen Sensor Bank 1 Sensor 2 (L99/LS3, LSA)

2 - B52E Heated Oxygen Sensor Bank 2 Sensor 1 (LLT) B52C Heated Oxygen Sensor Bank 1 Sensor 1 (L99/LS3, LSA)

3 - B52C Heated Oxygen Sensor Bank 1 Sensor 1 (LLT) B52E Heated Oxygen Sensor Bank 2 Sensor 1 (L99/LS3, LSA)

4 - B52D Heated Oxygen Sensor Bank 1 Sensor 2 (LLT) B52F Heated Oxygen Sensor Bank 2 Sensor 2 (L99/LS3, LSA)
