Top of the Engine Components

Powertrain Component Views

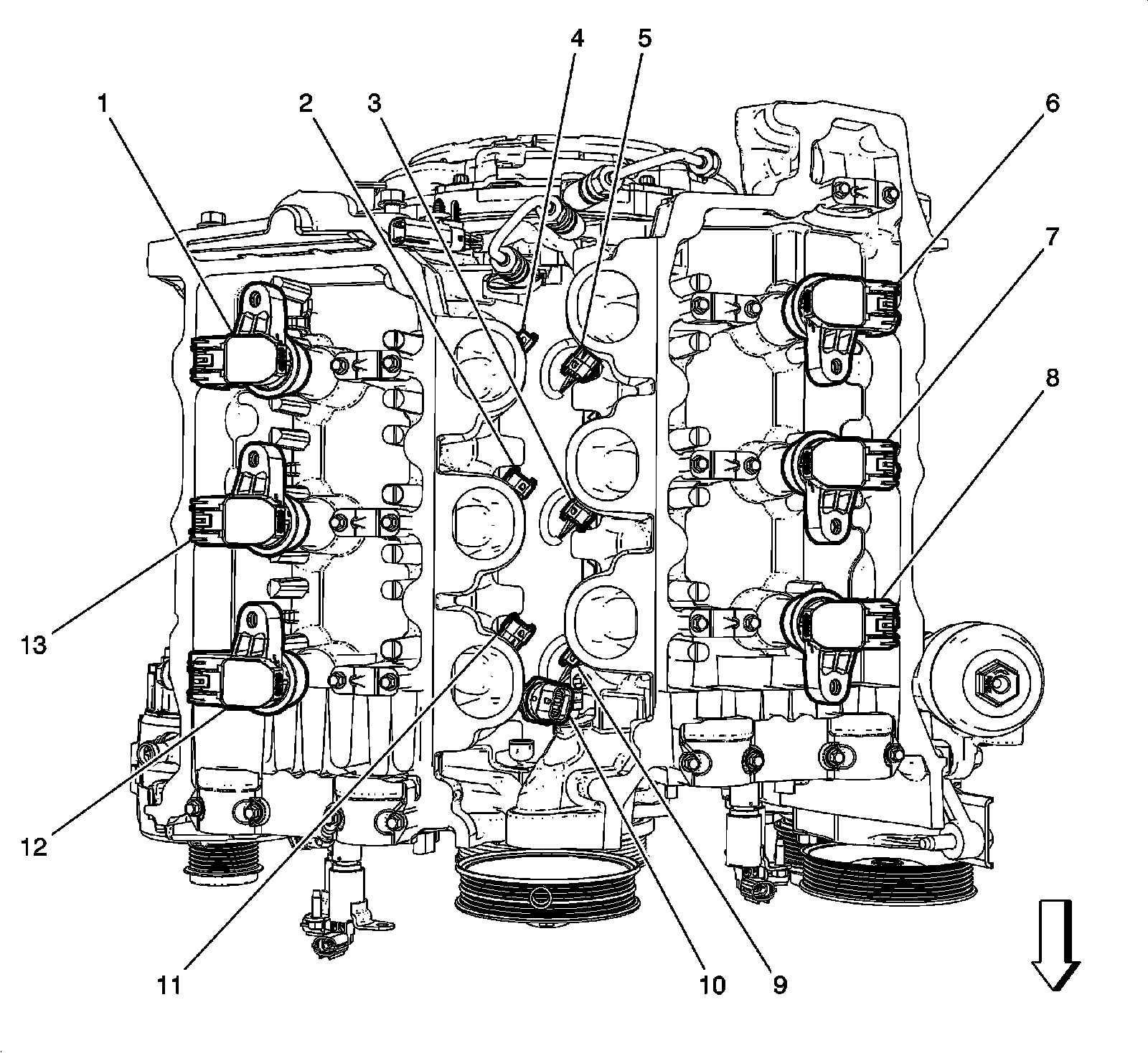

Top of the Engine Components (LFX)





1 - T8E Ignition Coil 5

2 - Q17C Fuel Injector 3

3 - Q17D Fuel Injector 4

4 - Q17E Fuel Injector 5

5 - Q17F Fuel Injector 6

6 - T8F Ignition Coil 6

7 - T8D Ignition Coil 4

8 - T8B Ignition Coil 2

9 - Q17B Fuel Injector 2

10 - B47B Fuel Rail Pressure Sensor

11 - Q17A Fuel Injector 1

12 - T8A Ignition Coil 1

13 - T8C Ignition Coil 3
