Fuel Pressure Sensor: Locations

Powertrain Component Views

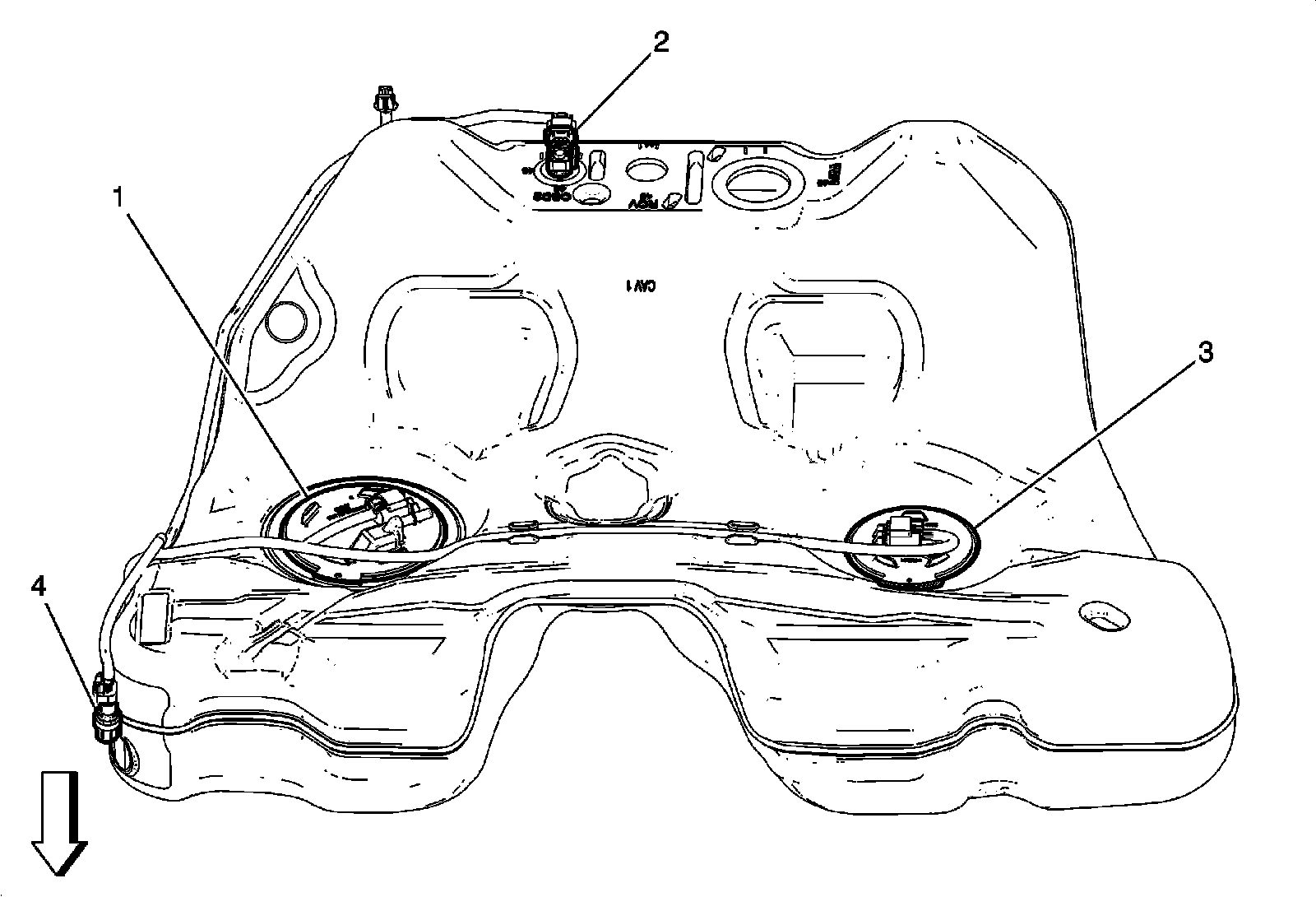

Under Rear of Vehicle Components





1 - A6C Fuel Pump and Level Sensor Assembly - Primary

2 - B150 Fuel Tank Pressure Sensor

3 - A6D Fuel Pump and Level Sensor Assembly - Secondary

4 - B47 Fuel Pressure Sensor
