Knock Sensor 1

Powertrain Component Views

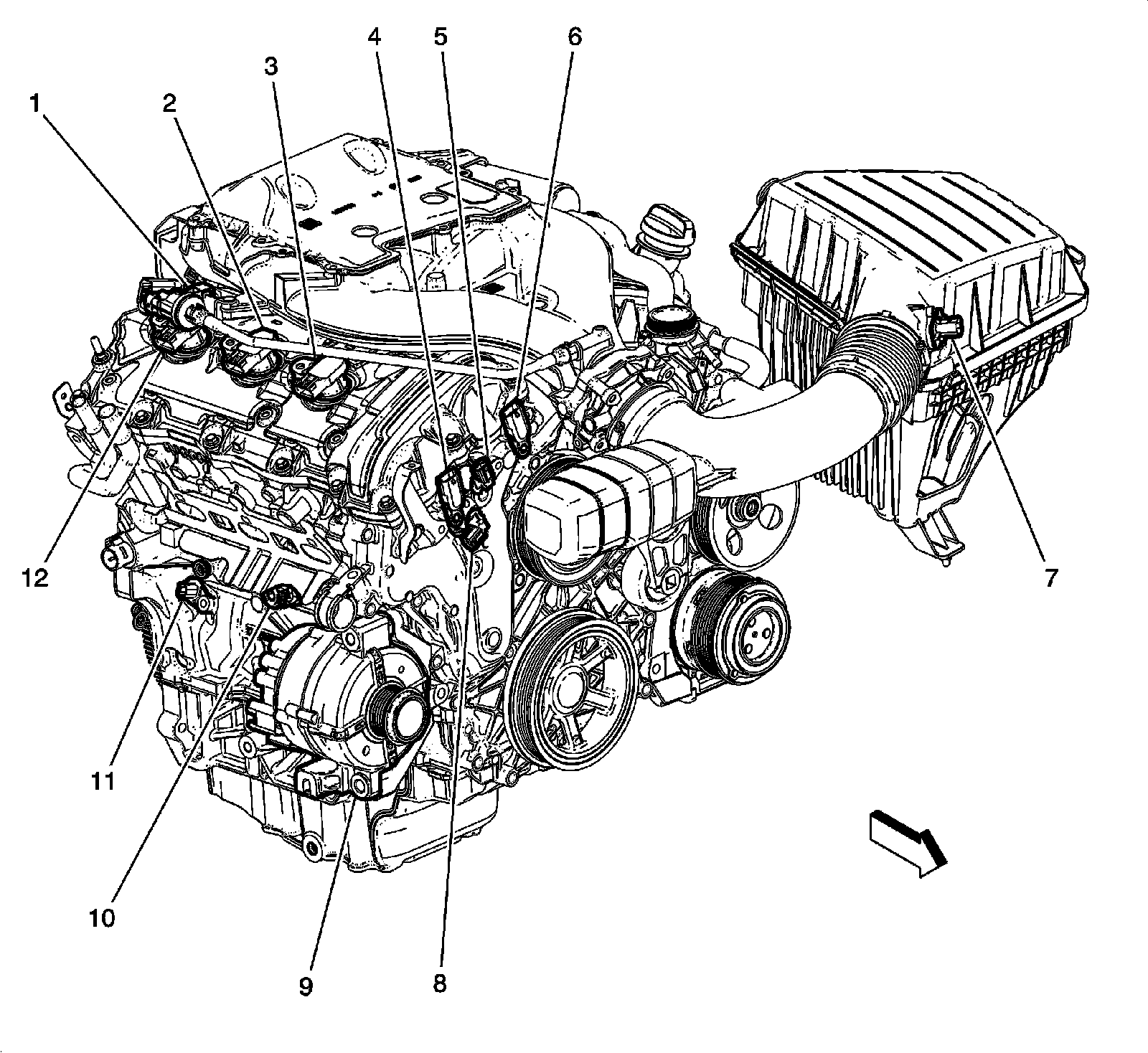

Right Side and Front of the Engine Components (LFX)





1 - Q12 Evaporative Emission (EVAP) Purge Solenoid Valve

2 - T8C Ignition Coil 3

3 - T8A Ignition Coil 1

4 - B23A Camshaft Position Sensor - Bank 1 Exhaust

5 - Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake

6 - B23B Camshaft Position Sensor - Bank 1 Intake

7 - B75C Multifunction Intake Air Temperature Sensor

8 - Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust

9 - G13 Generator

10 - B68A Knock Sensor 1

11 - B26 Crankshaft Position Sensor

12 - T8E Ignition Coil 5
