Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

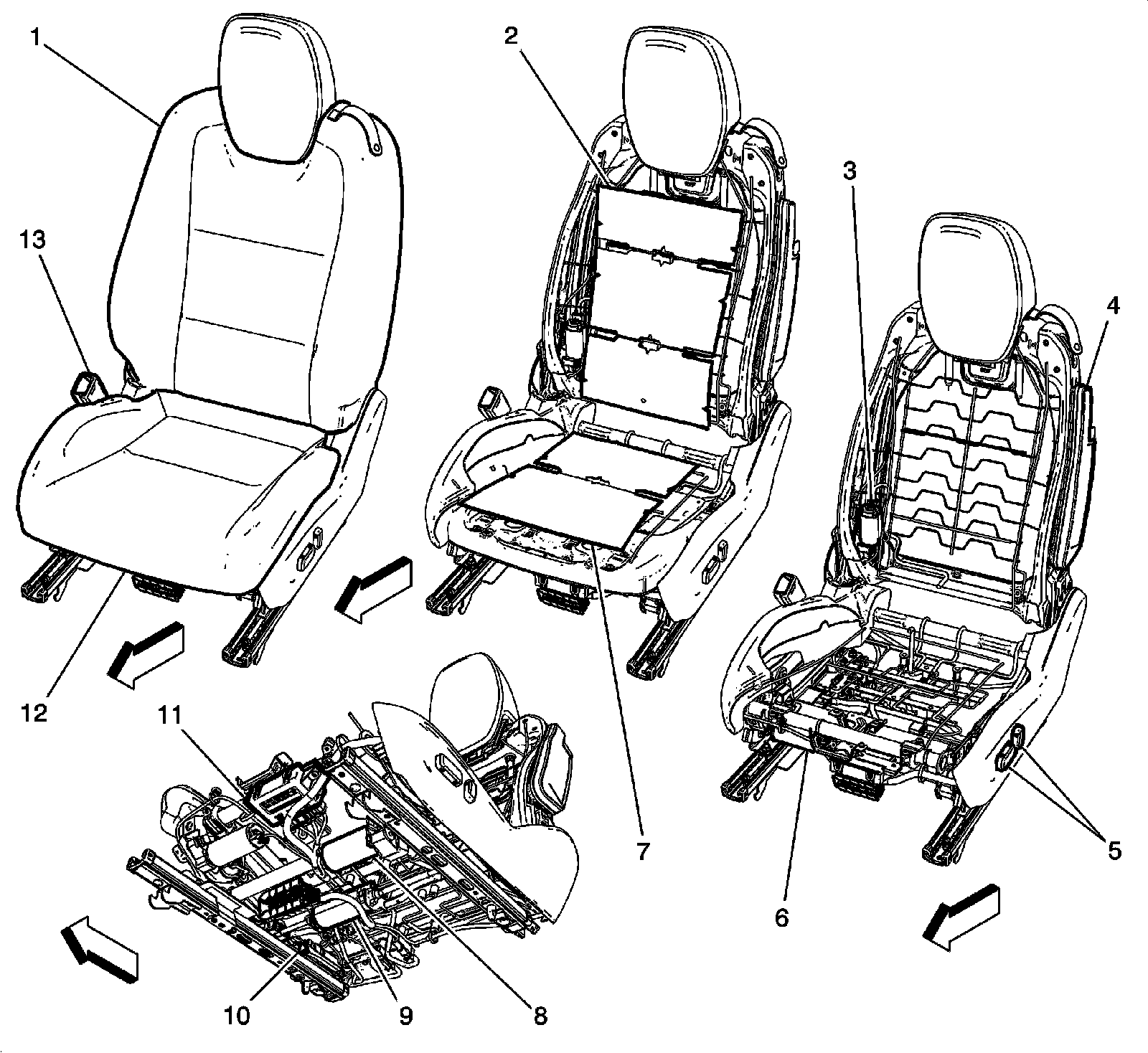

Driver Seat Components





1 - Driver Seat Back Cushion

2 - E14A Seat Heating Element - Driver Back (KA1)

3 - M56D Seat Recline Motor - Driver

4 - F106LF Seat Air Bag - Left Front

5 - S64D Seat Adjuster Switch - Driver

6 - M50D Seat Front Vertical Motor - Driver (AMM)

7 - E14B Seat Heating Element - Driver Cushion (KA1)

8 - M55D Seat Rear Vertical Motor - Driver (AMM)

9 - M51D Seat Horizontal Motor - Driver (AMM)

10 - B62D Seat Position Sensor - Driver

11 - K29 Seat Heating Control Module (KA1)

12 - Driver Seat Cushion

13 - B88D Seat Belt Switch - Driver
