Folding Top Control Module X2 (Convertible)

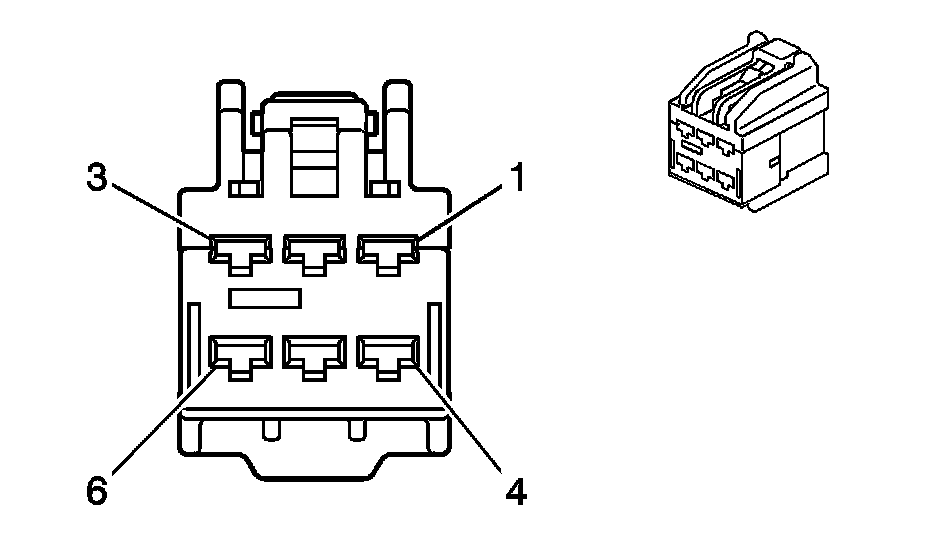

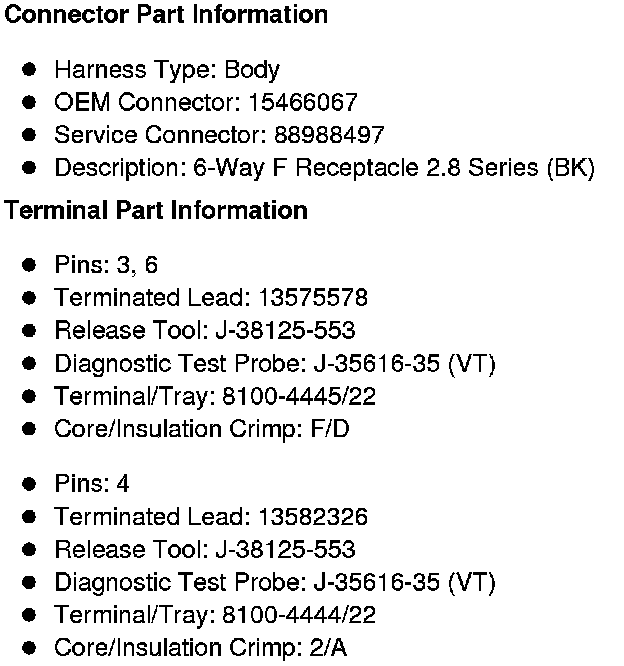

Component Connector End Views

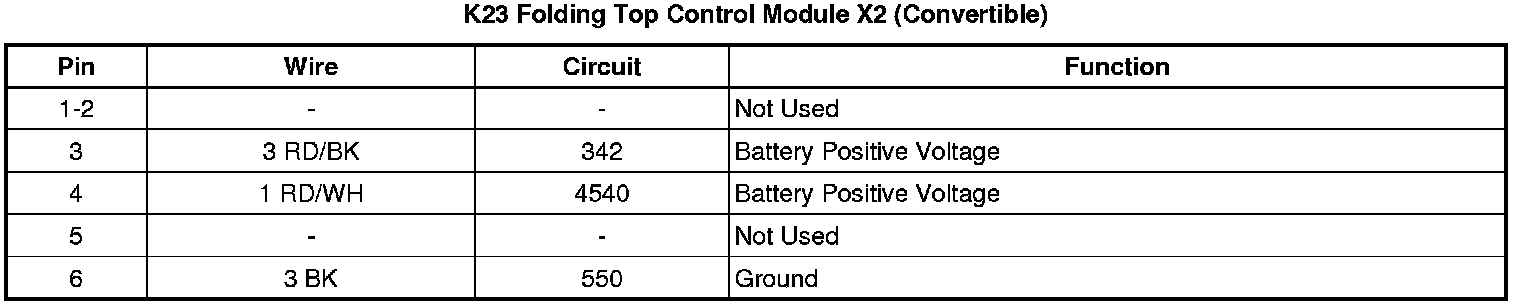

K23 Folding Top Control Module X2 (Convertible)
