Multimedia Player Interface Module X2 (USR)

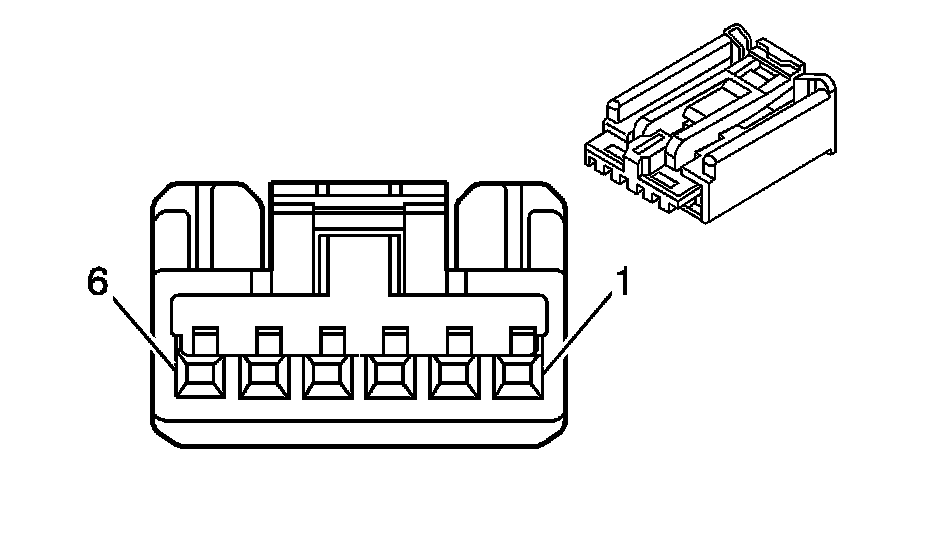

Component Connector End Views

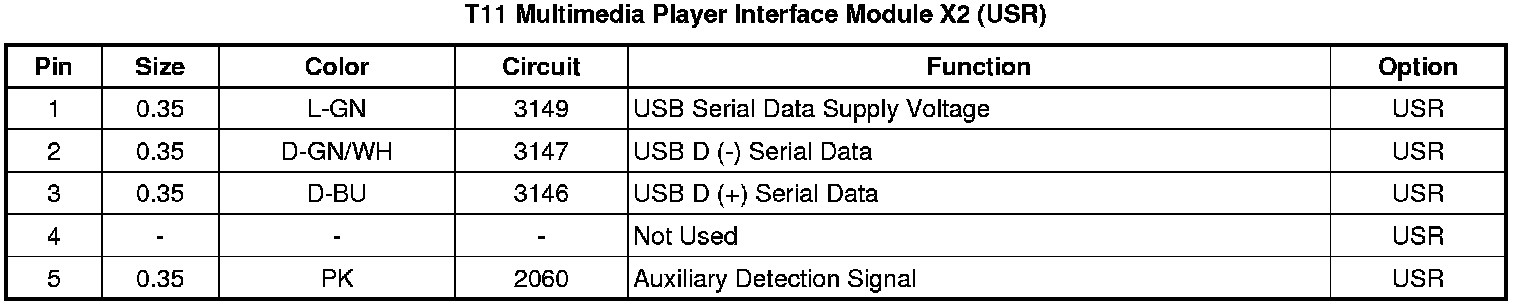

T11 Multimedia Player Interface Module X2 (USR)
