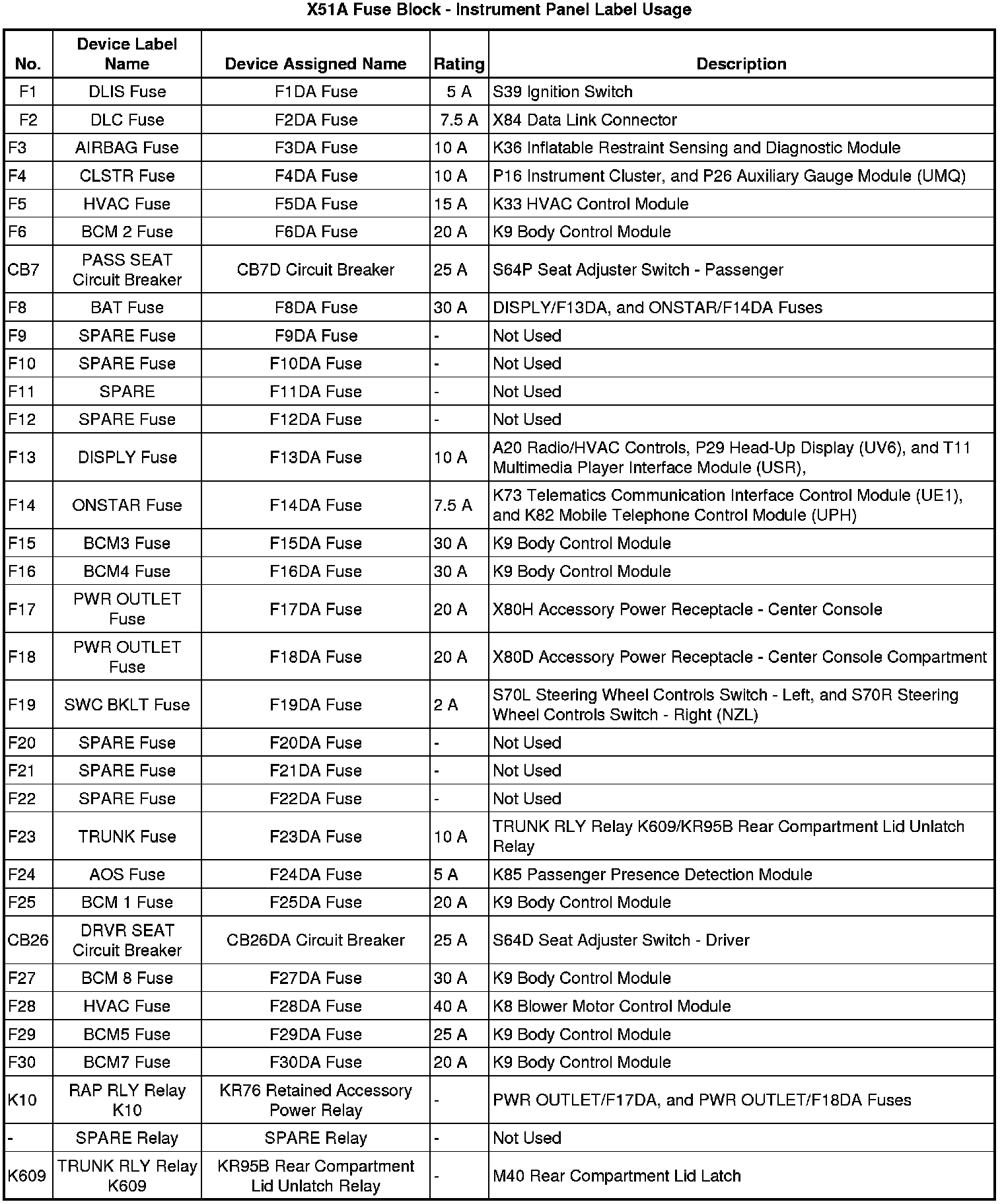

X51A Fuse Block - Instrument Panel Label
Electrical Center Identification Views
X51A
Fuse Block
- Instrument Panel Label
