Passenger Presence Detection Module X2

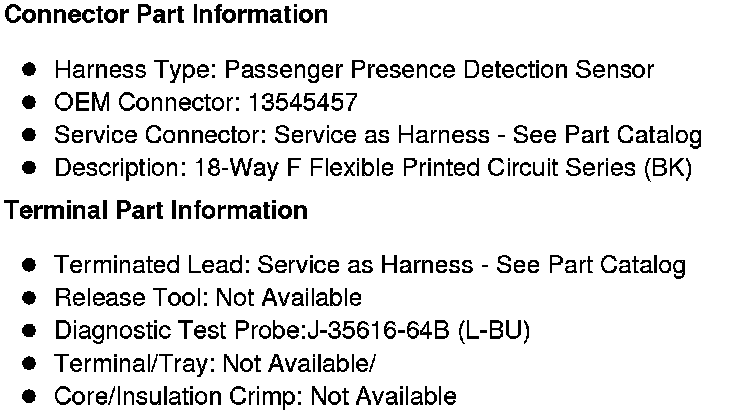

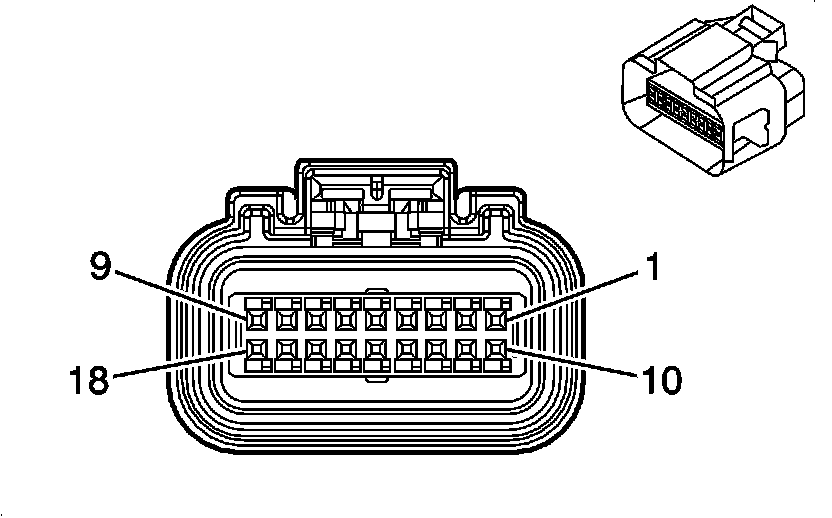

Component Connector End Views

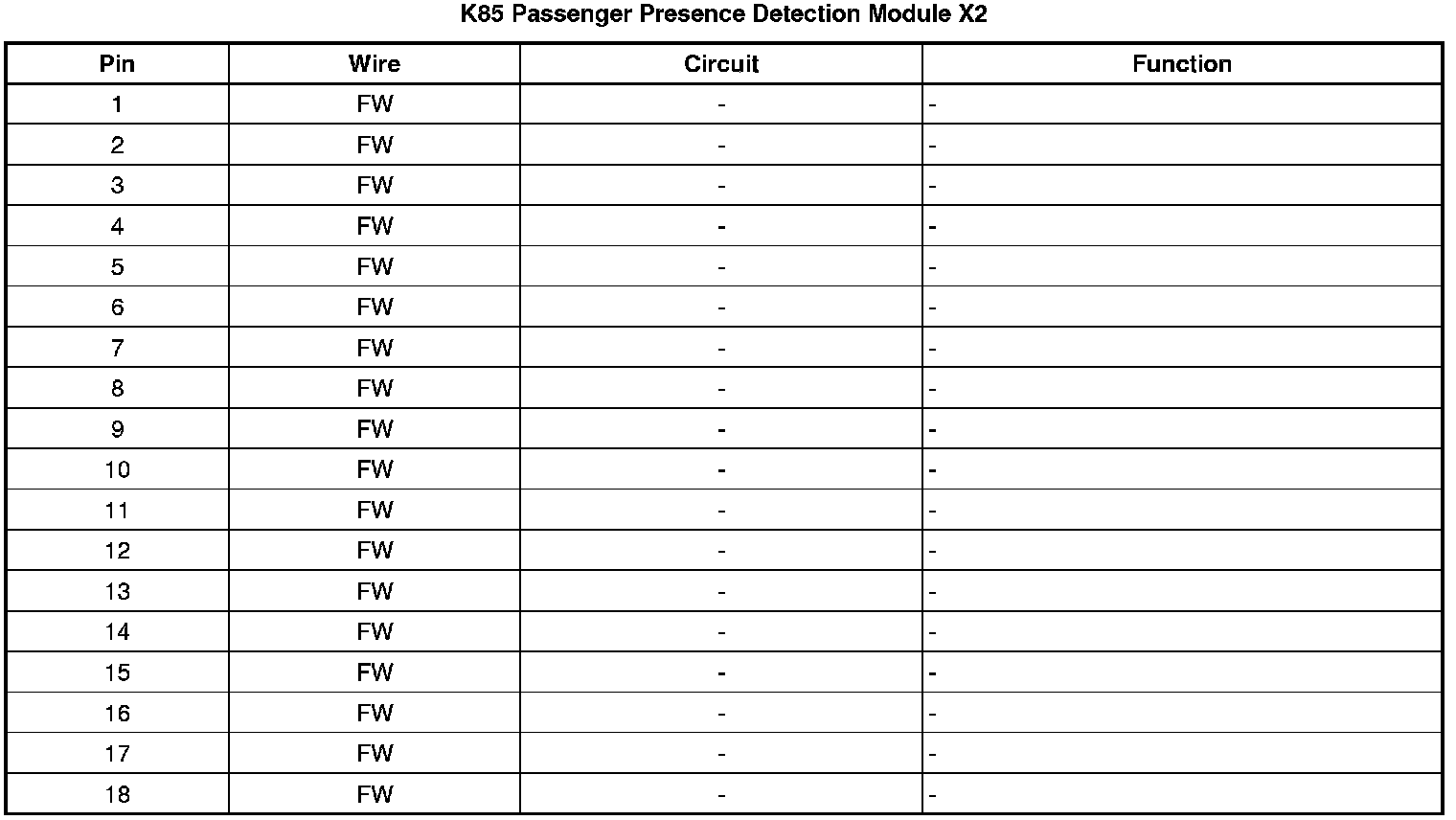

K85 Passenger Presence Detection Module X2
