Electric Power Steering Control Module X1 (NV9)

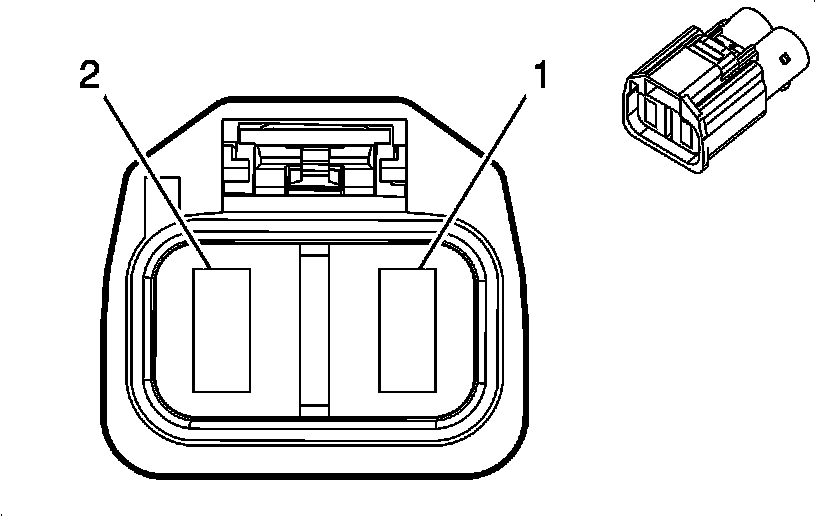

Component Connector End Views

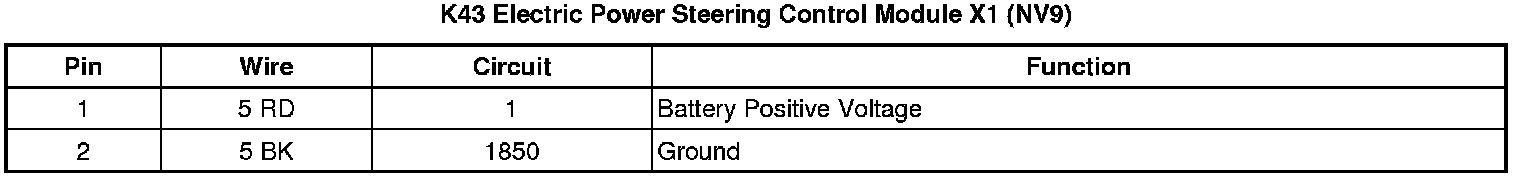

K43 Electric Power Steering
Control Module
X1 (NV9)
