Windows

Moveable Window Schematics

Coupe





Master Electrical Component List
Power Windows Description and Operation
Control Module References

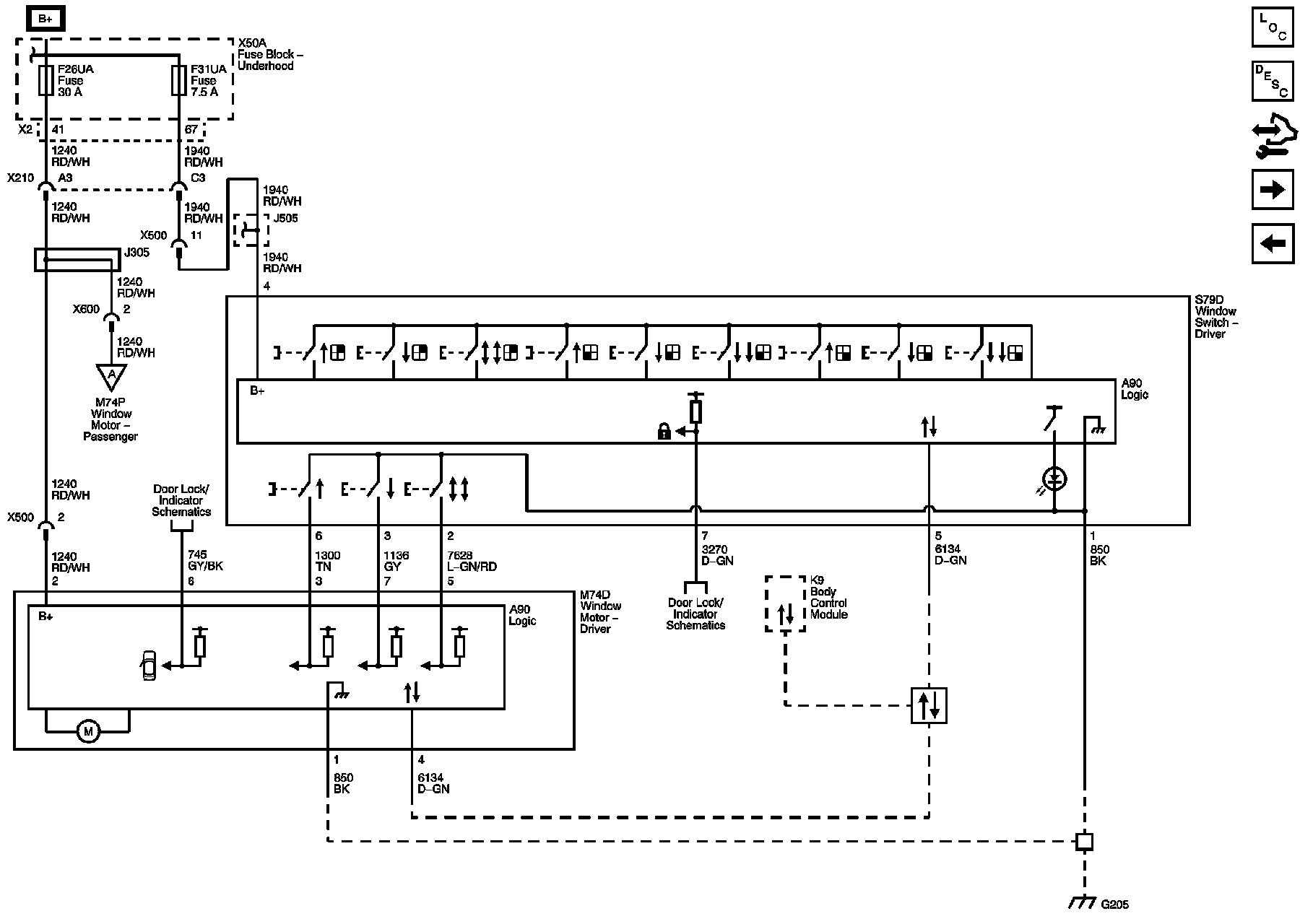

Driver Door
B+ Bus (1 of 2)
F2UA, F25UA, F26UA, F31UA, F32UA, F33UA, and F34UA Fuses
Interior Lamps Dimming
Door Locks and Indicators
Linear Interconnect Network (LIN) Bus 1, 3, 4, 9, 11
G205
G206 and G301

Driver Door





Master Electrical Component List
Power Windows Description and Operation
Control Module References

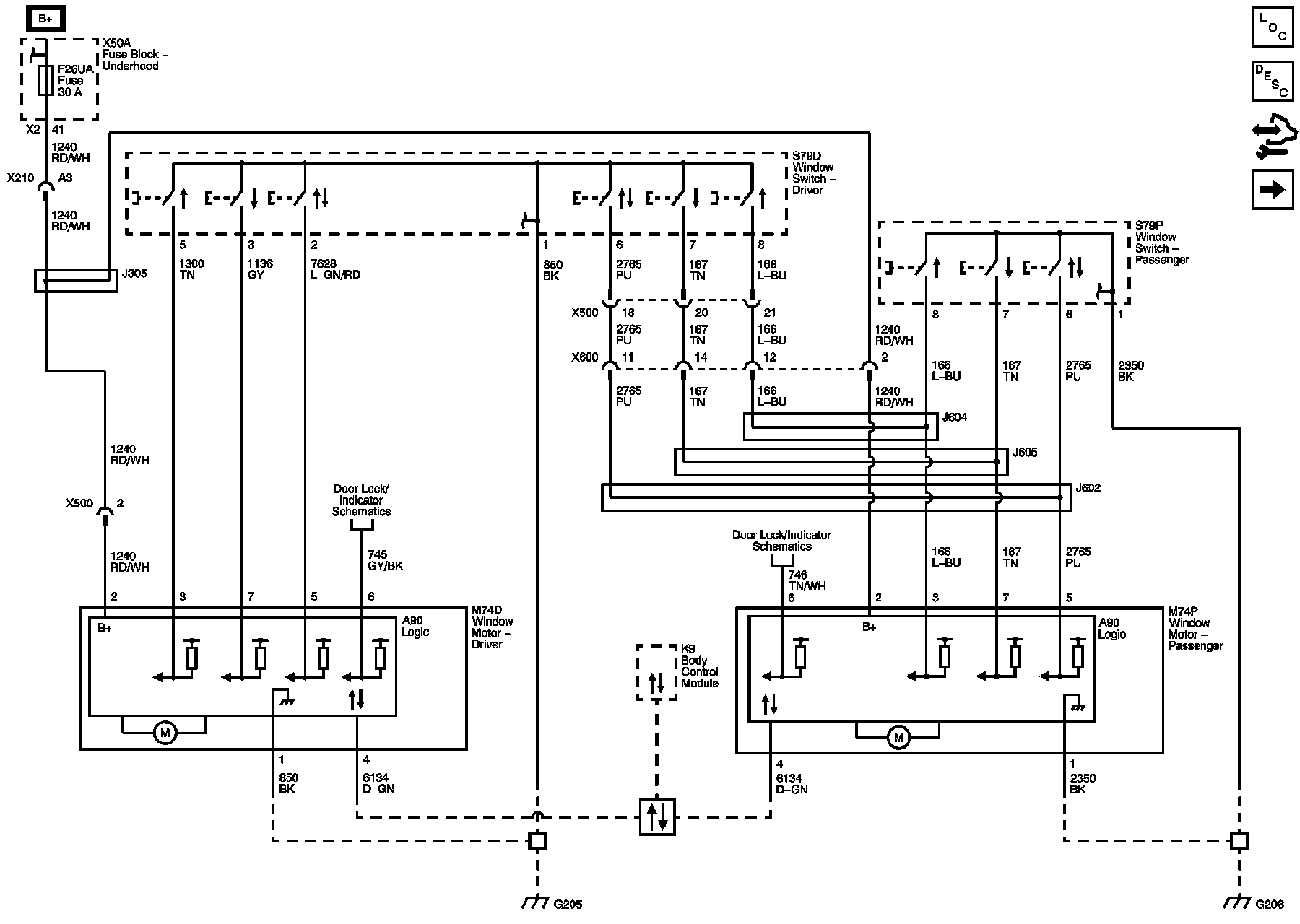

Passenger Door and Rear Windows (Convertible)
Coupe
B+ Bus (1 of 2)
F2U, F25U, F26U, F31U, F32U, F33U, and F34U Fuses
Passenger Door and Rear Windows (Convertible)
Door Locks and Indicators
Data Communication Schematics
G205

Passenger Door and Rear Windows (Convertible)





Master Electrical Component List
Power Windows Description and Operation
Control Module References
Driver Door (Convertible)
B+ Bus (1 of 2)
F2U, F25U, F26U, F31U, F32U, F33U, and F34U Fuses
Interior Lamps Dimming
Driver Door (Convertible)
Door Locks and Indicators
Data Communication Schematics
G206 and G301
G402, G403, and G404
