Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

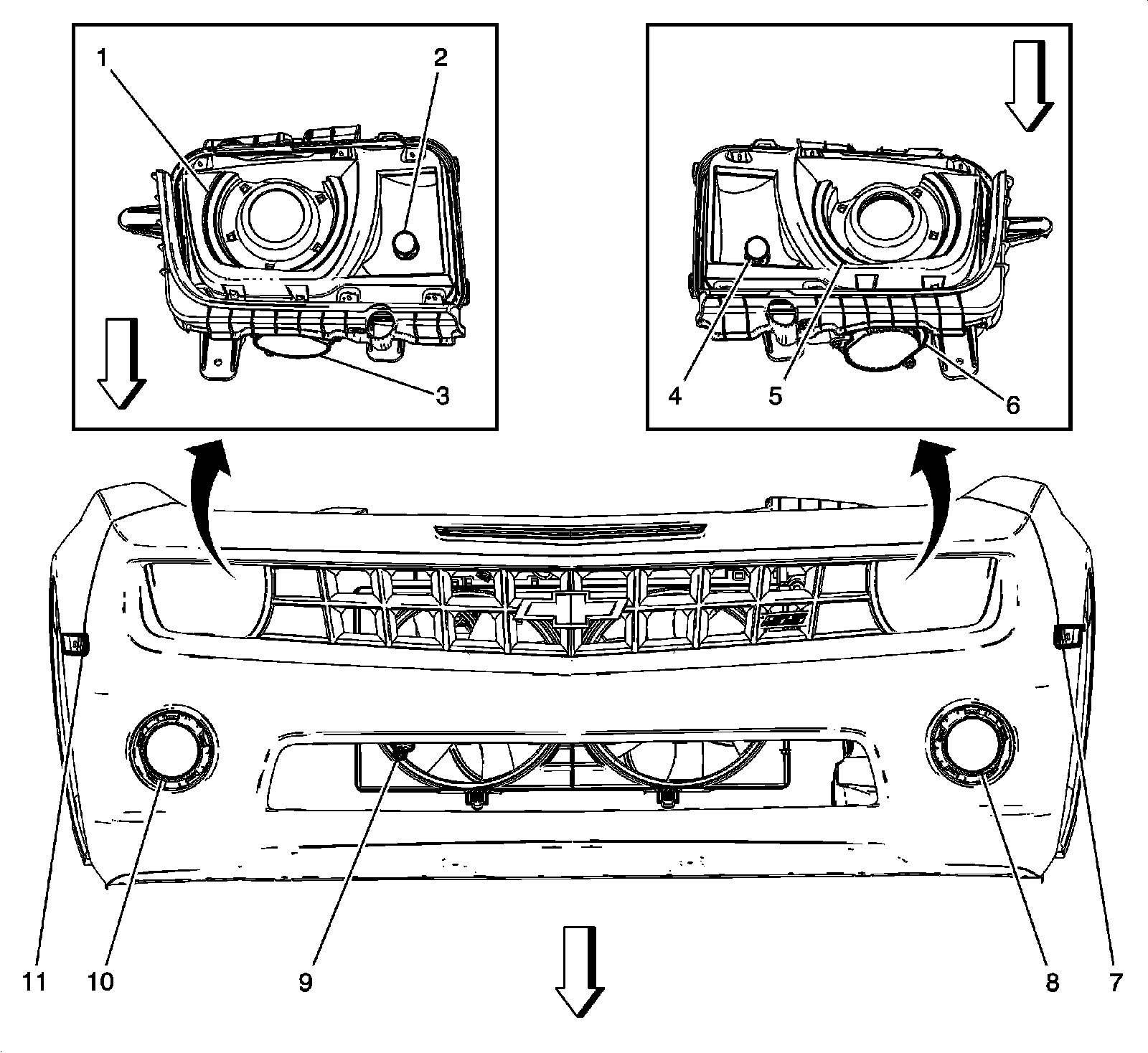

Front of Vehicle Components





1 - E4K Park Lamp- Right Front (T4F)

2 - E4RF Turn Signal Lamp- Right Front (T4F)

3 - T7R Headlamp Ballast- Right (T4F)

4 - E4LF Turn Signal Lamp- Left Front (T4F)

5 - E4J Park Lamp- Left Front (T4F)

6 - T7L Headlamp Ballast- Left (T4F)

7 - E2LF Side Marker Lamp- Left Front

8 - E4C Daytime Running Lamp- Left (T4F)

9 - B9 Ambient Air Temperature Sensor

10 - E4D Daytime Running Lamp- Right (T4F)

11 - E2RF Side Marker Lamp- Right Front
