Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

1. Before performing any adjustment affecting the wheel alignment, refer to Wheel Alignment Measurement Wheel Alignment Measurement.





2. Ensure that the steering wheel is set in a straight ahead position.

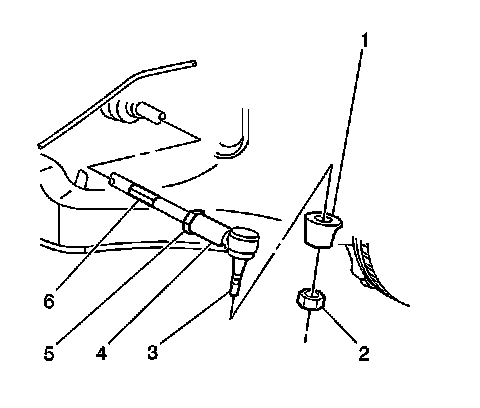

3. Loosen the tie rod jam nut (5).

4. Adjust the toe to specification by turning the adjuster (6). Refer to Wheel Alignment Specifications Wheel Alignment Specifications.

Caution:
Refer to Fastener Caution Fastener Caution.

5. Install the tie rod jam nut (5) and tighten to 68 Nm(50 lb ft).
