Rear of Transmission Components (M10)




Powertrain Component Views

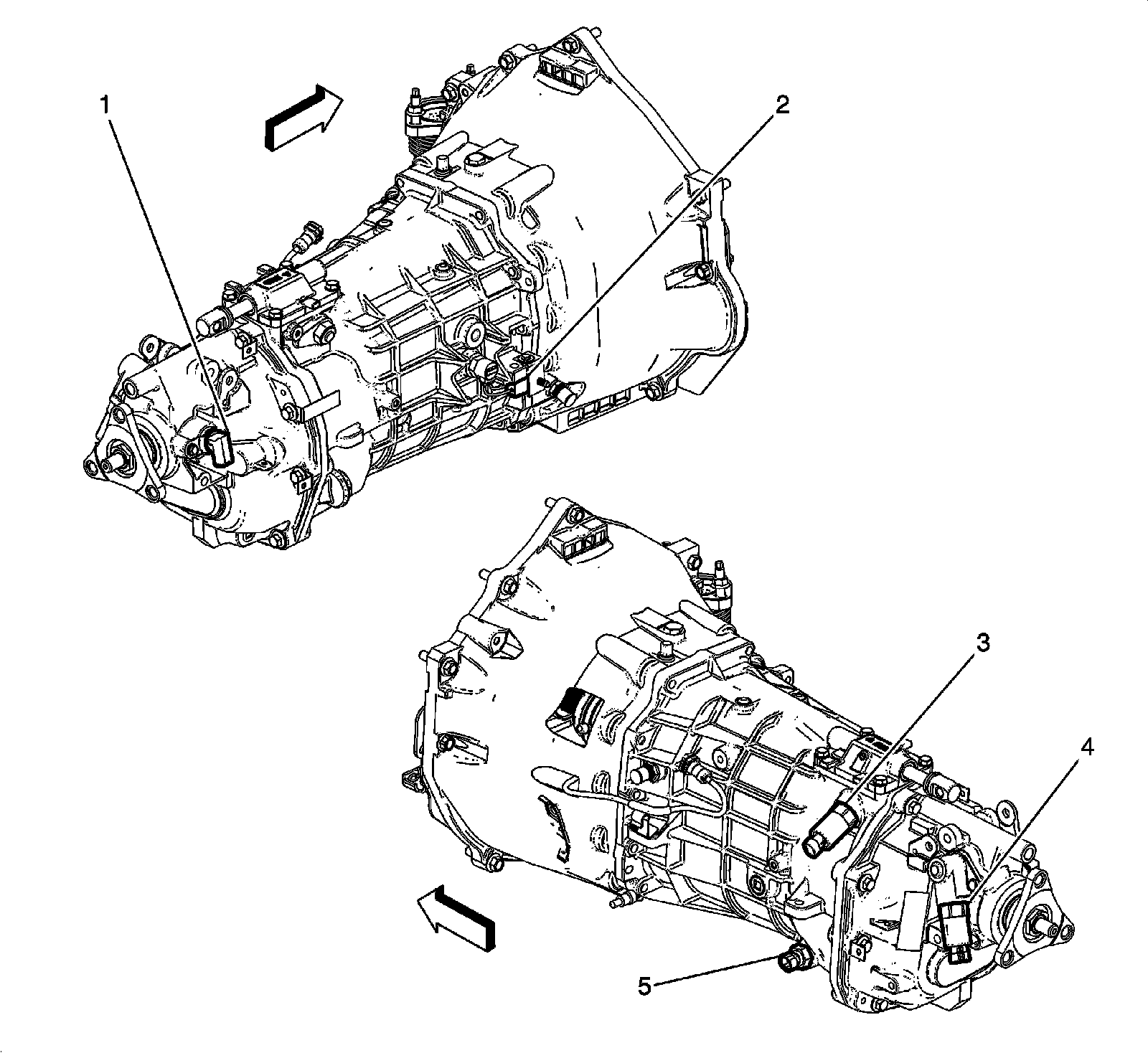

Rear of Transmission Components (M10)





1 - B115 Vehicle Speed Sensor

2 - B16 Backup Lamp Switch

3 - Q34 Skip Shift Solenoid Actuator

4 - M47 Reverse Inhibit Solenoid Actuator

5 - B173 Manual Transmission Fluid Temperature Sensor
