Communications Control Module

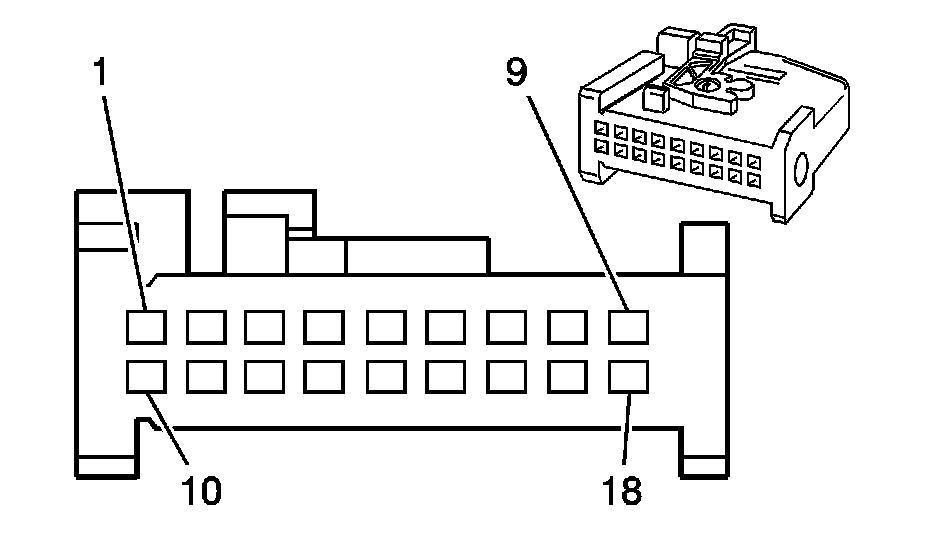

Component Connector End Views

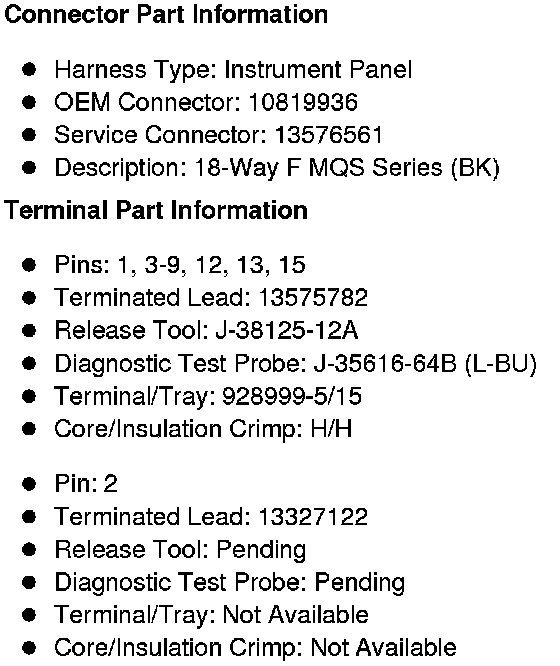

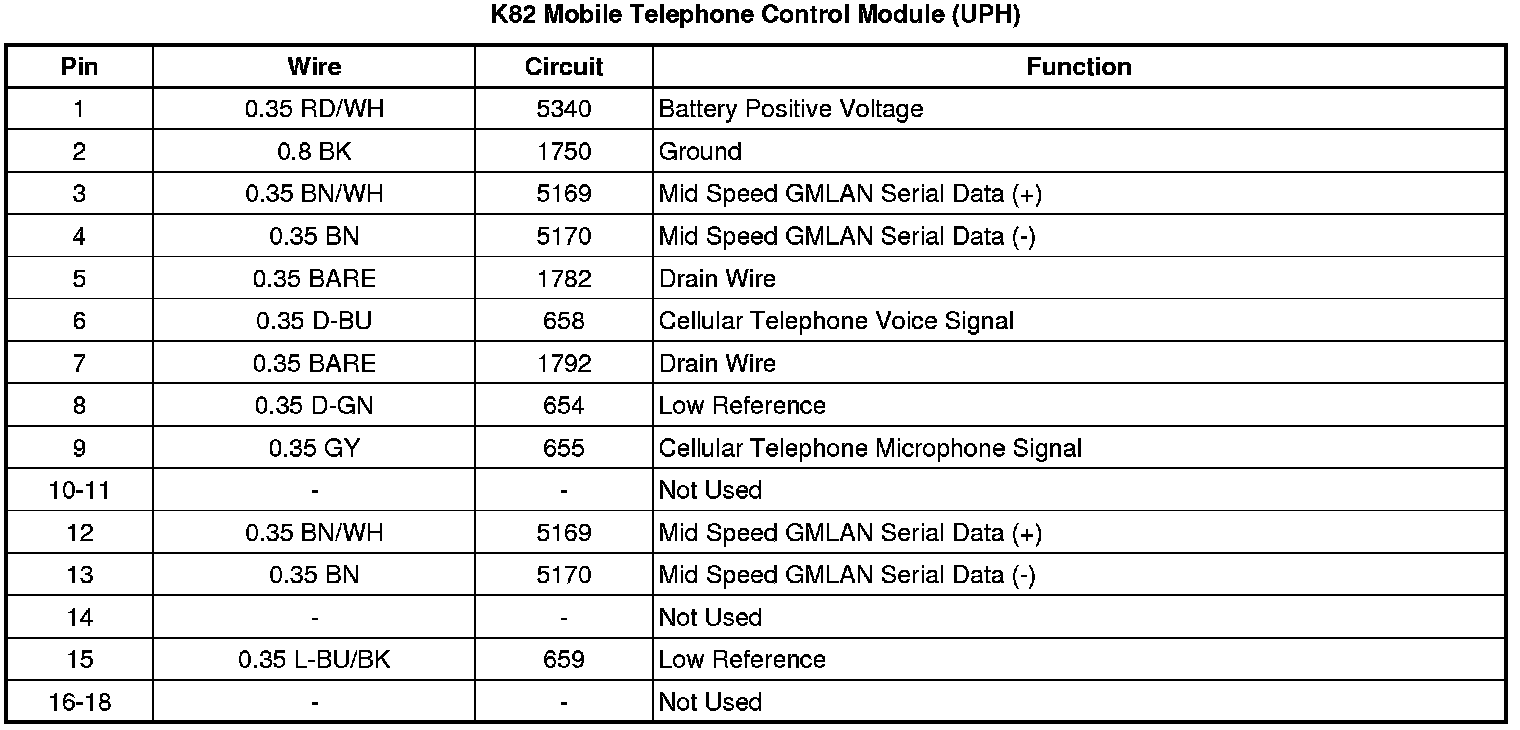

K82 Mobile Telephone Control Module (UPH)
