Air Flow Meter/Sensor: Diagrams

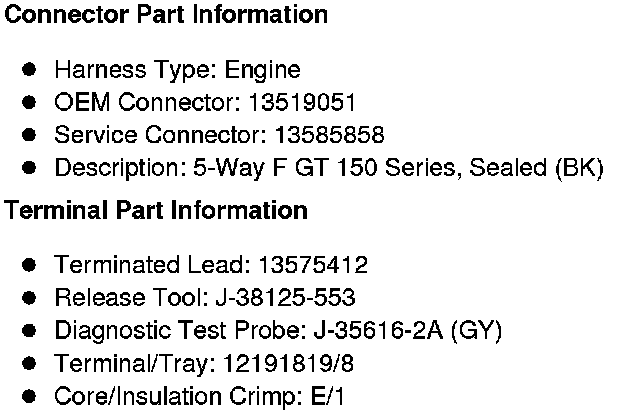

Component Connector End Views

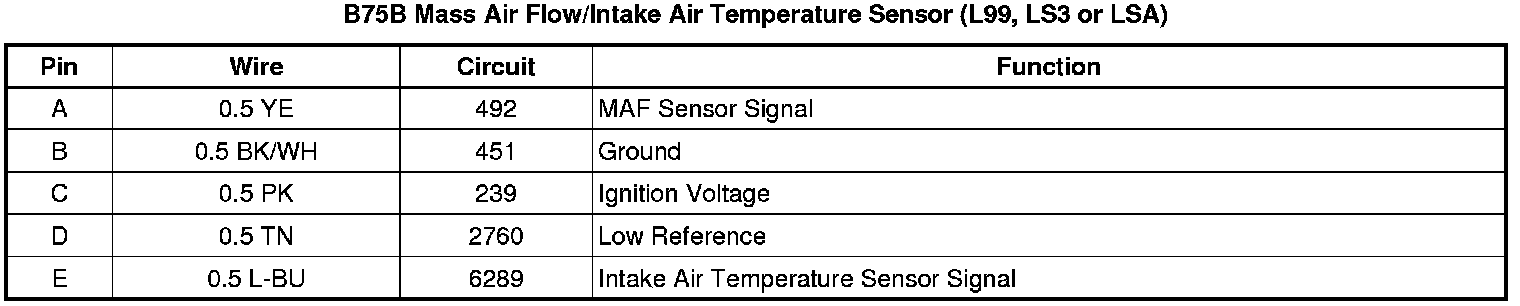

B75B Mass Air Flow/Intake Air Temperature Sensor (L99, LS3 or LSA)
