Battery Current Sensor: Locations

Luggage Compartment/Rear of Vehicle Component Views

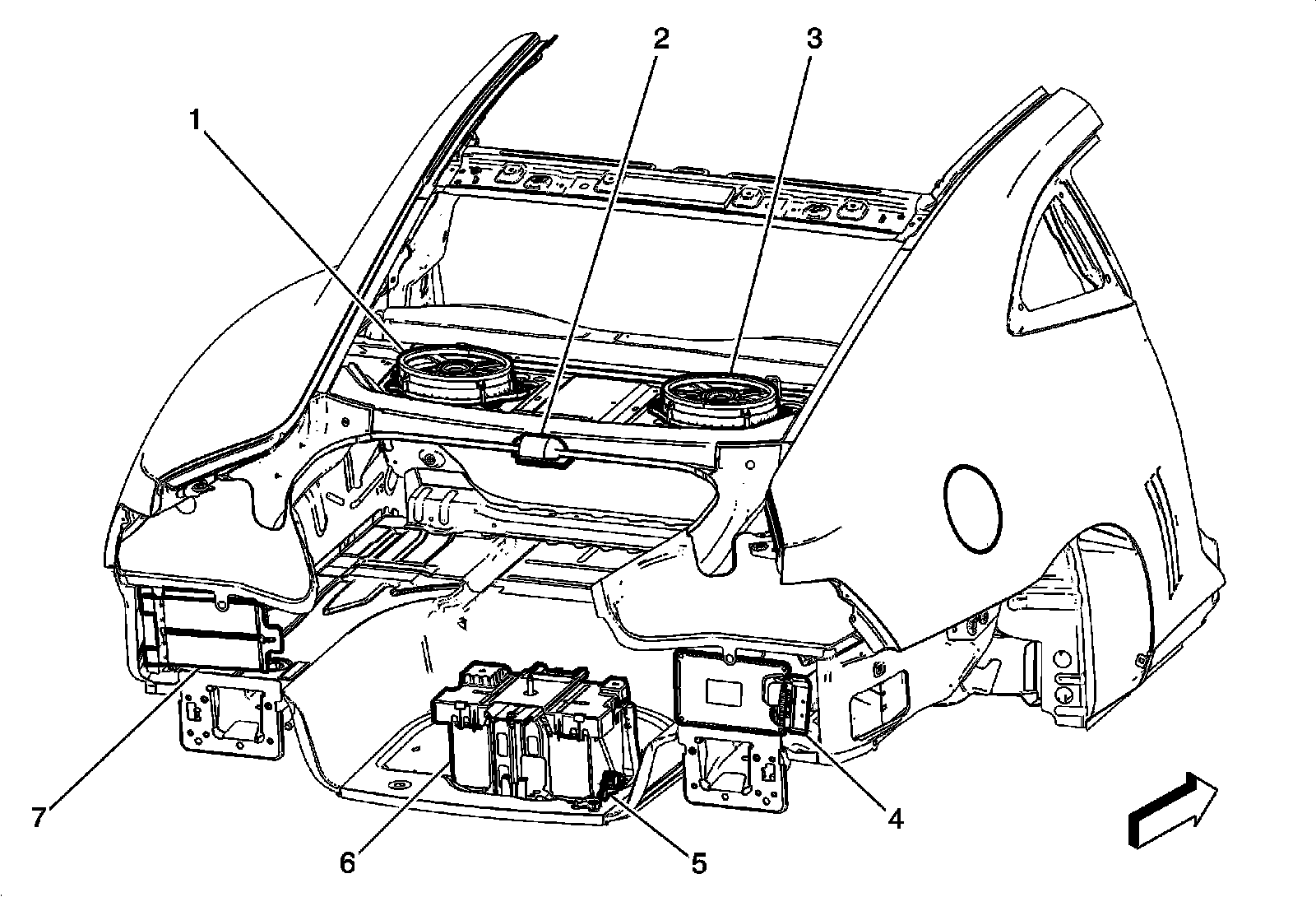

Rear of Vehicle from Right Side Components (Coupe)





1 - P19AJ Speaker - Left Rear Window Shelf

2 - E8S Rear Compartment Courtesy Lamp

3 - P19AK Speaker - Right Rear Window Shelf

4 - K19 Electronic Suspension Control Module

5 - B18 Battery Current Sensor

6 - C1 Battery

7 - T3 Audio Amplifier (UQA)
