Oil Pressure Sensor: Locations

Powertrain Component Views

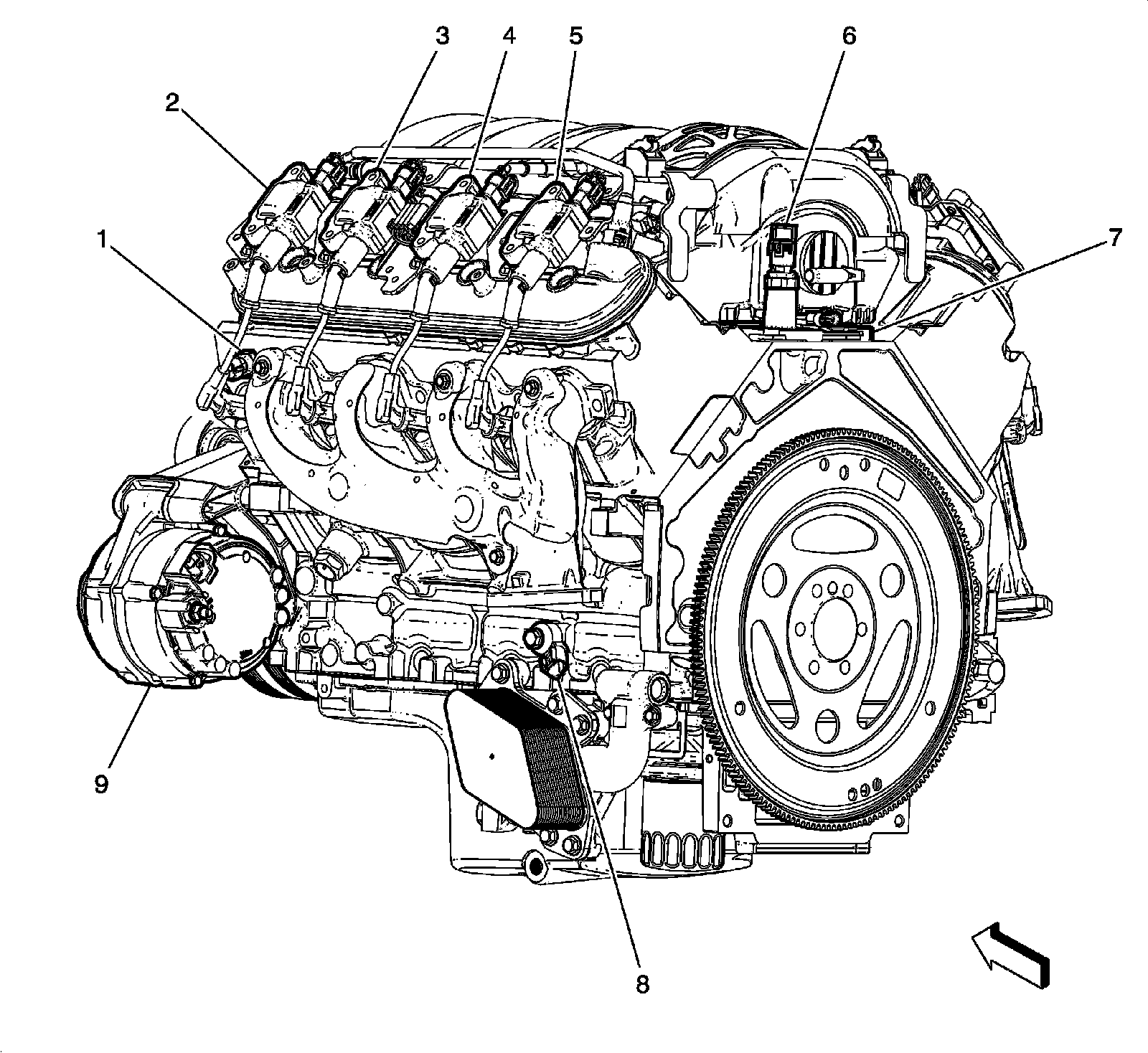

Left and Rear of the Engine Components (L99 or LS3)





1 - B34 Engine Coolant Temperature Sensor

2 - T8A Ignition Coil 1

3 - T8C Ignition Coil 3

4 - T8E Ignition Coil 5

5 - T8G Ignition Coil 7

6 - B37B Engine Oil Pressure Sensor

7 - Q43 Valve Lifter Oil Manifold Assembly (L99)

8 - B68A Knock Sensor 1

9 - G13 Generator
