Accelerator Pedal Position Sensor Replacement

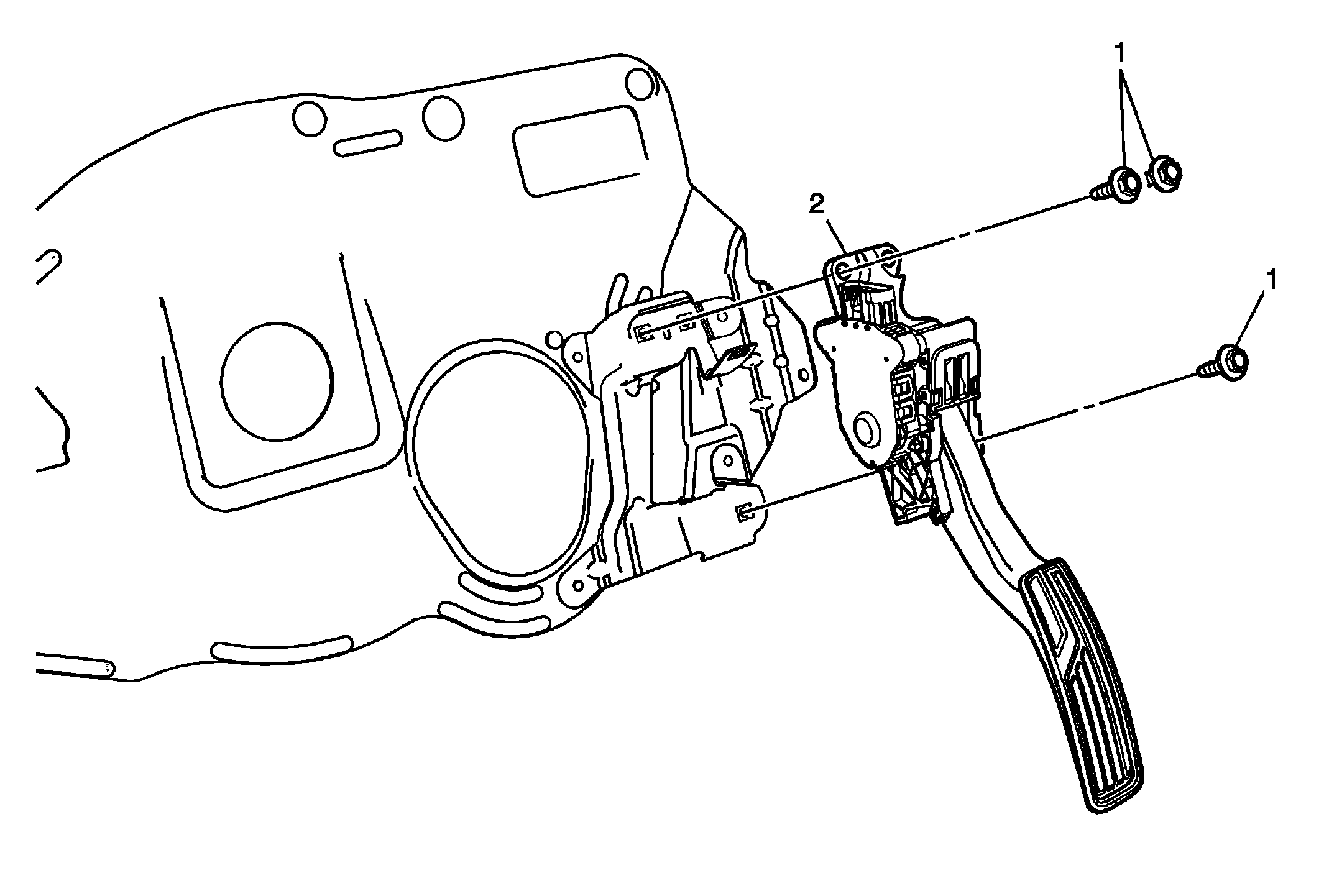

Fig 1: Accelerator Pedal Position Sensor & Fasteners
GM2197209Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal Position Sensor Replacement

Callout Component Name
1 Accelerator Pedal Position Sensor Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Accelerator Pedal Position Sensor
Procedure
Disconnect the electrical connector.
