Fuel Line Replacement - Engine (L99 or LS3)

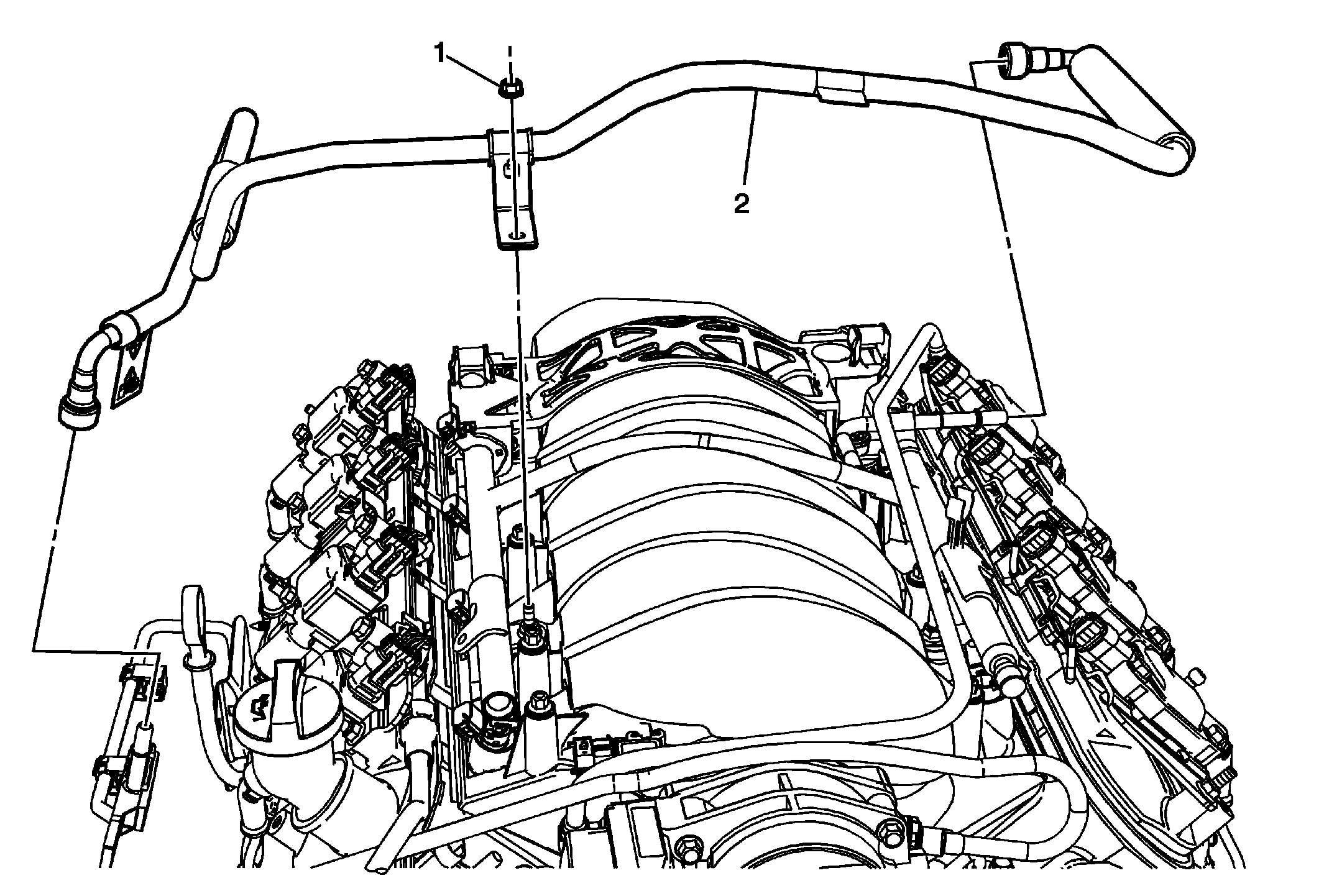

Fig 1: Fuel Line - Engine
GM2270407Courtesy of GENERAL MOTORS COMPANY
Fuel Line Replacement - Engine (L99 or LS3)

Callout Component Name

Preliminary Procedure

  1. Remove the engine cover. Refer to Engine Cover Replacement .
  2. Disconnect the quick connects. Refer to Metal Collar Quick Connect Fitting Service .
1 Fuel Line Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m(89 lb in)
2 Fuel Line - Engine Compartment
