Camshaft Position Sensor Wire Replacement

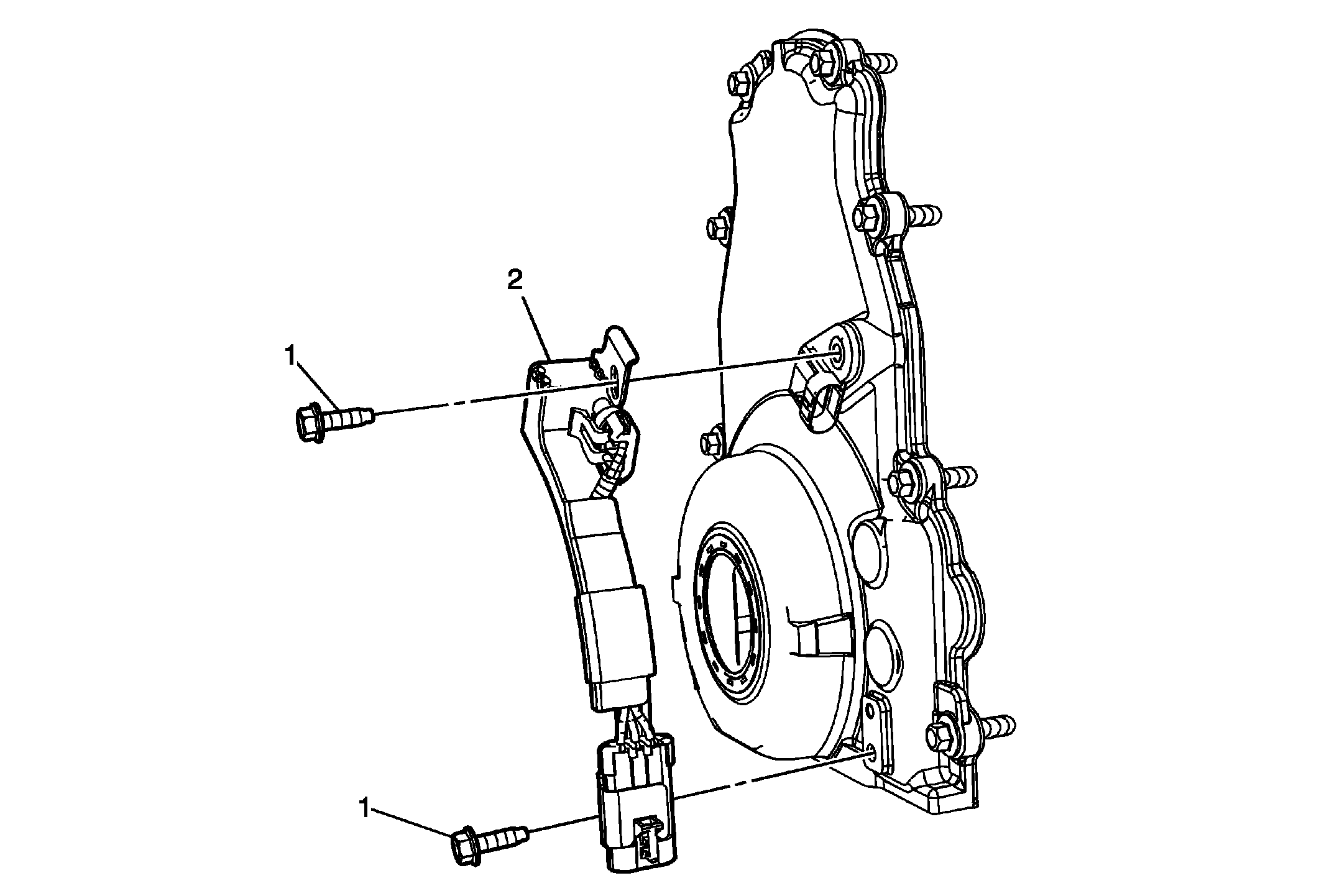

Fig 1: Camshaft Position Sensor Wire & Fasteners
GM2197499Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor Wire Replacement

Callout Component Name
Preliminary Procedure
Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Camshaft Position Sensor Wire Assembly Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (106 lb in)
2 Camshaft Position Sensor Wire Assembly
Procedure
Disconnect the electrical connectors.
