Fuel Feed Rear Pipe Replacement

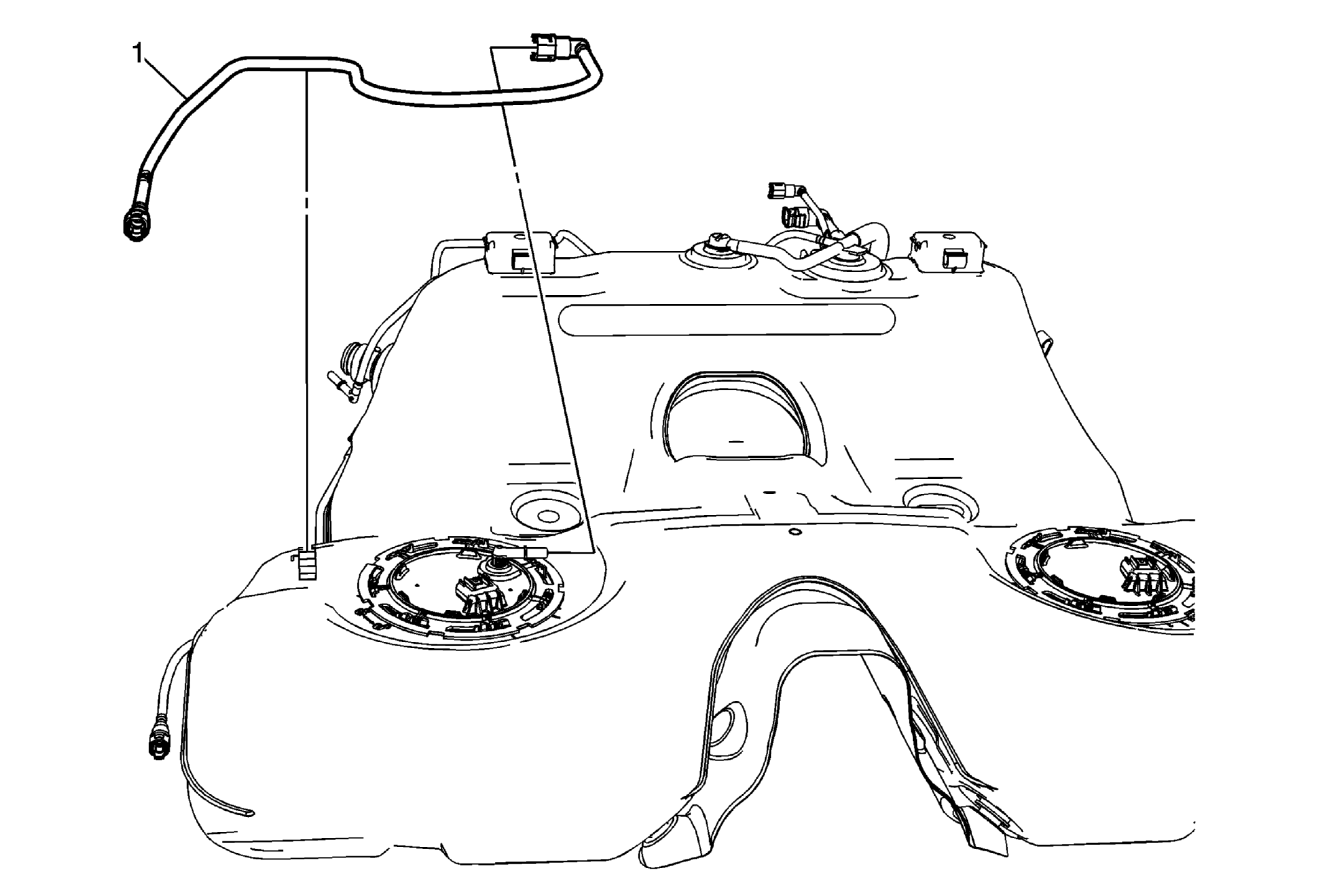

Fig 1: Fuel Feed Rear Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement . Disconnect the quick connect connector. Refer to Plastic Collar Quick Connect Fitting Service .
1	Fuel Feed Rear Pipe

Callout

Component Name

Preliminary Procedure

Remove the fuel tank. Refer to Fuel Tank Replacement .
Disconnect the quick connect connector. Refer to Plastic Collar Quick Connect Fitting Service .

Fuel Feed Rear Pipe
