Installation Procedure

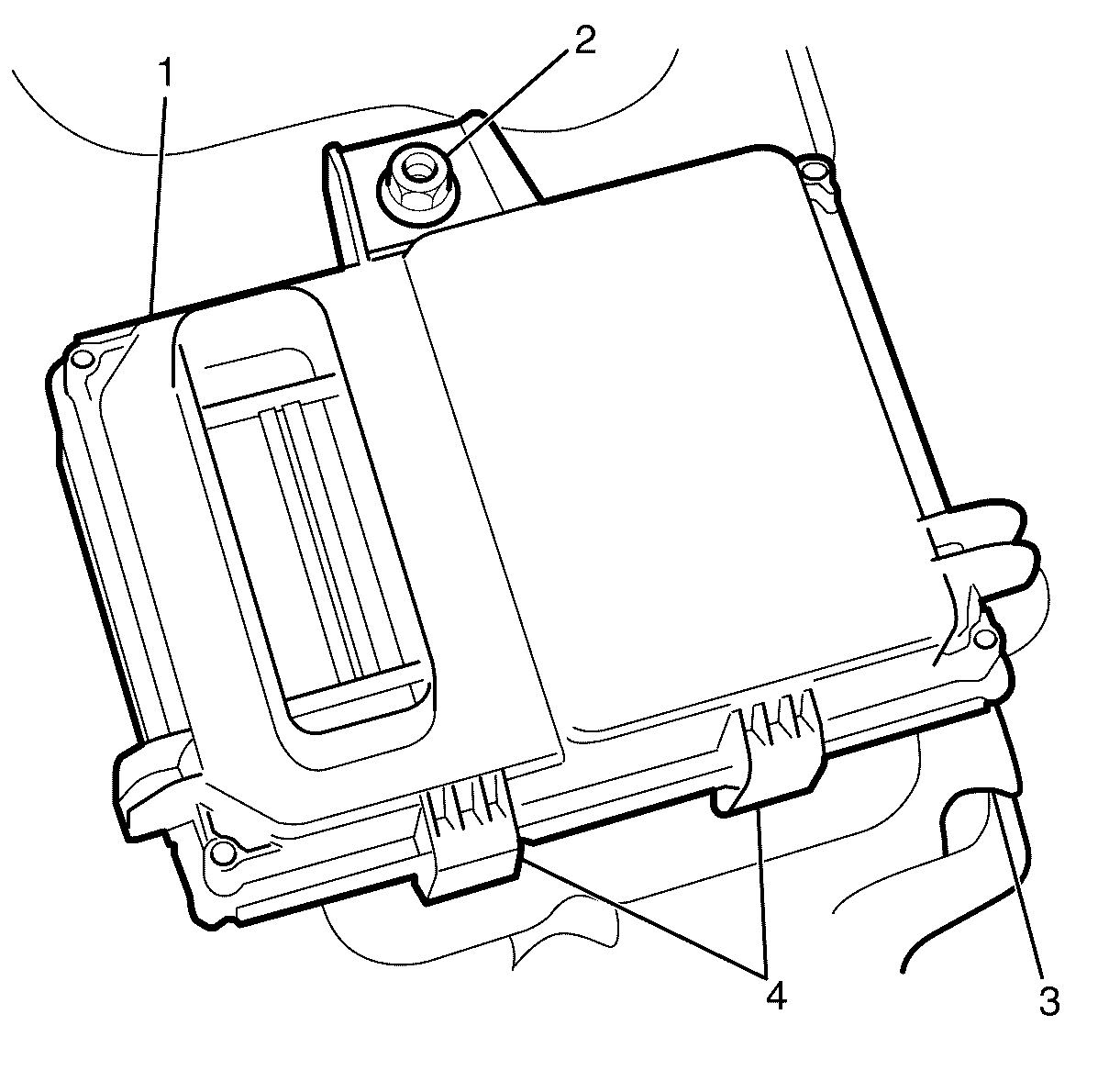

    Fig 1: Fuel Pump Flow Control Module And Battery Tray
    GM2290952Courtesy of GENERAL MOTORS COMPANY
  1. Attach the fuel pump flow control module (1) to the battery tray (3).
  2. Attach the fuel pump flow control module retainers (4).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the fuel pump flow control module to battery tray underside retaining nut (2) and tighten to 9 N.m (80 lb in).
  4. Install the battery tray. Refer to Battery Tray Replacement .
  5. Install the battery. Refer to Battery Replacement .
  6. Install the left side rear compartment side trim panel access hole cover.
    7. NOTE:

    When a suitable hold open device is being removed or installed, provide alternate support.

  7. Remove the suitable liftgate brace from the vehicle.
  8. Close the liftgate.
