Throttle Body Assembly Replacement

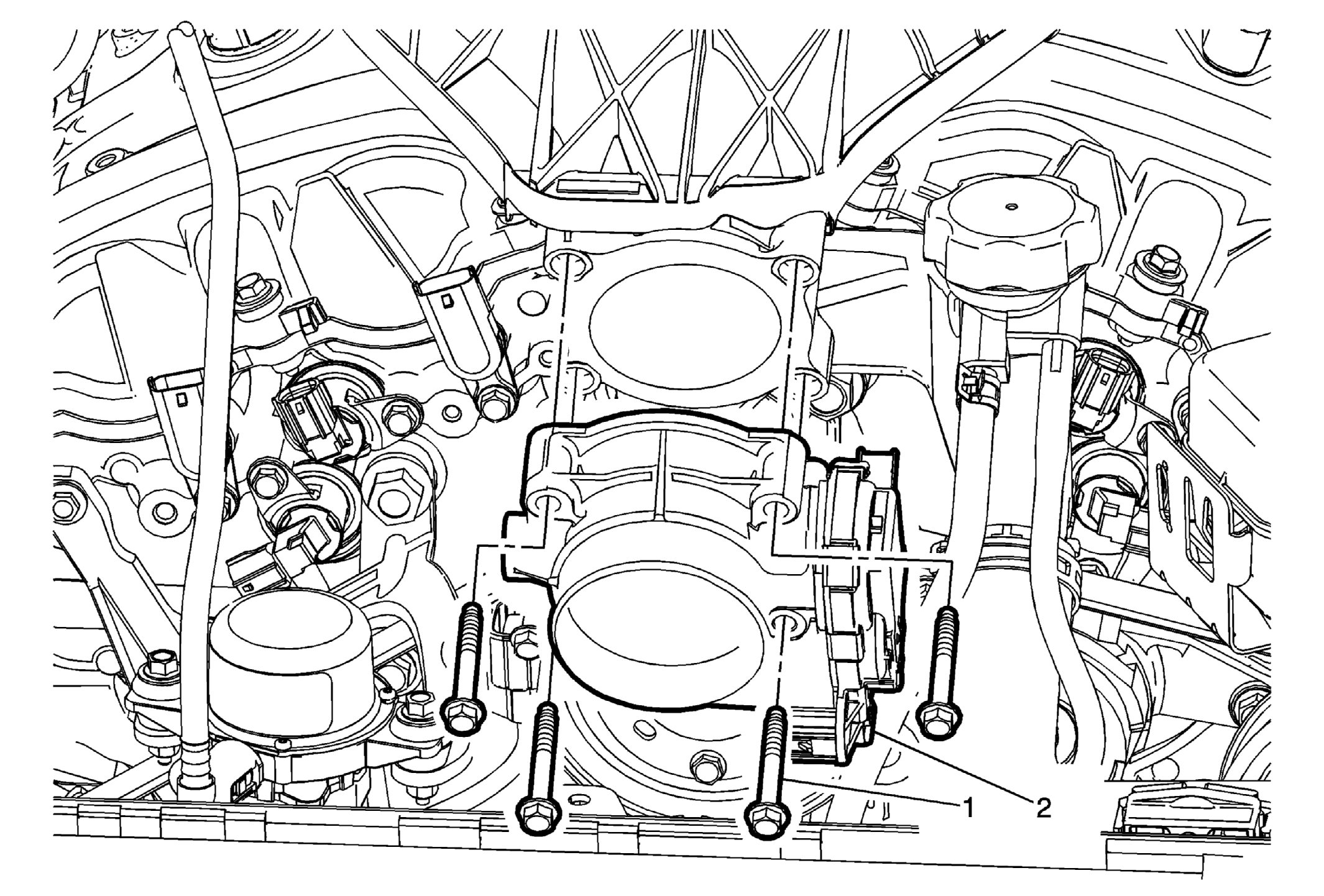

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Throttle Body Assembly Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Assembly Procedure Install a NEW throttle body seal. Disconnect the electrical connectors. Perform the throttle learn procedure. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures
Remove the outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Throttle Body Assembly Fastener (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Throttle Body Assembly

Procedure
