Accessory Wakeup Serial Data Wiring Schematics

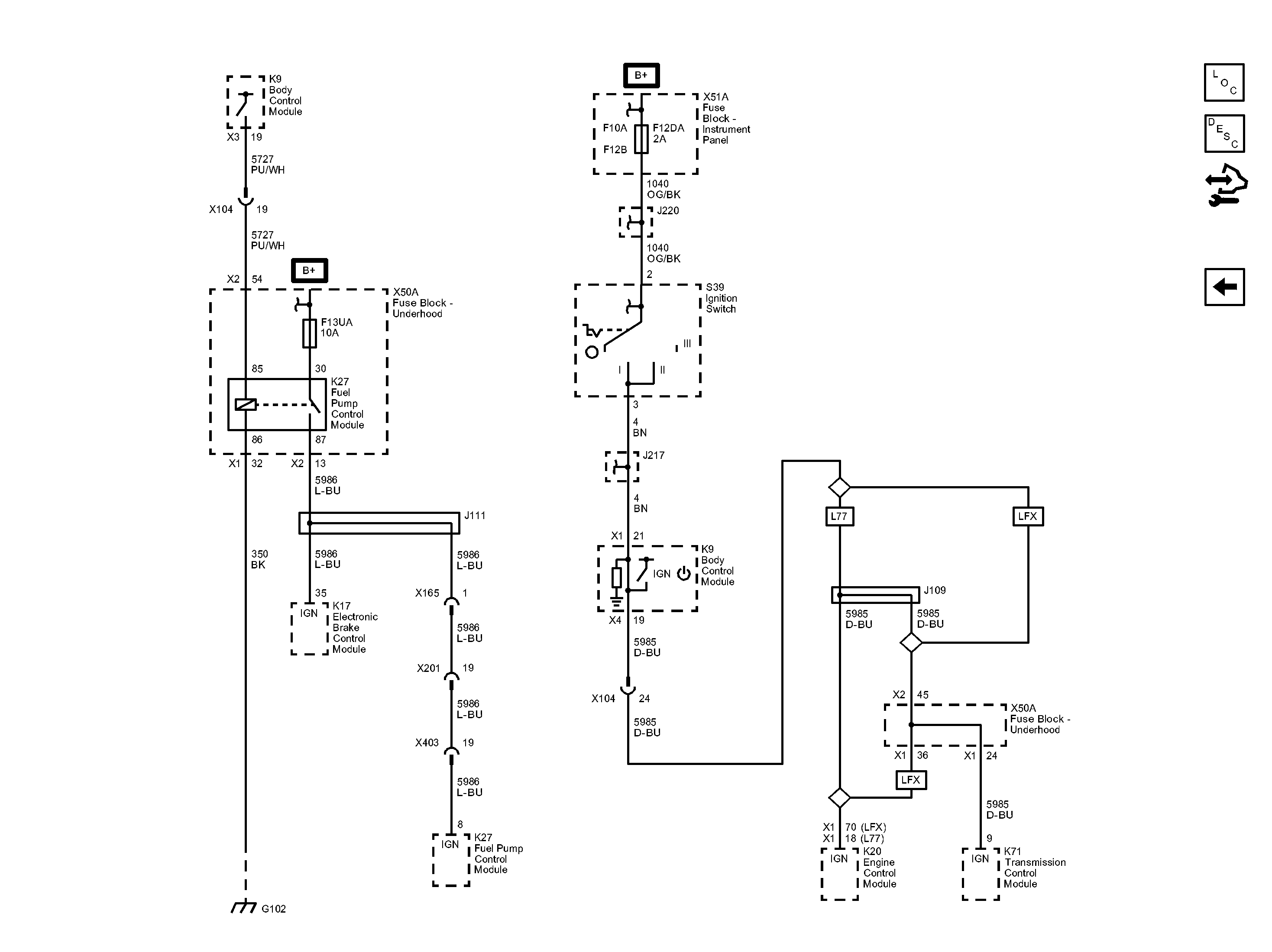

Fig 1: Accessory Wakeup Serial Data Wiring Schematic
GM2662709Courtesy of GENERAL MOTORS COMPANY
