Body Control Systems




Body Control System Schematics

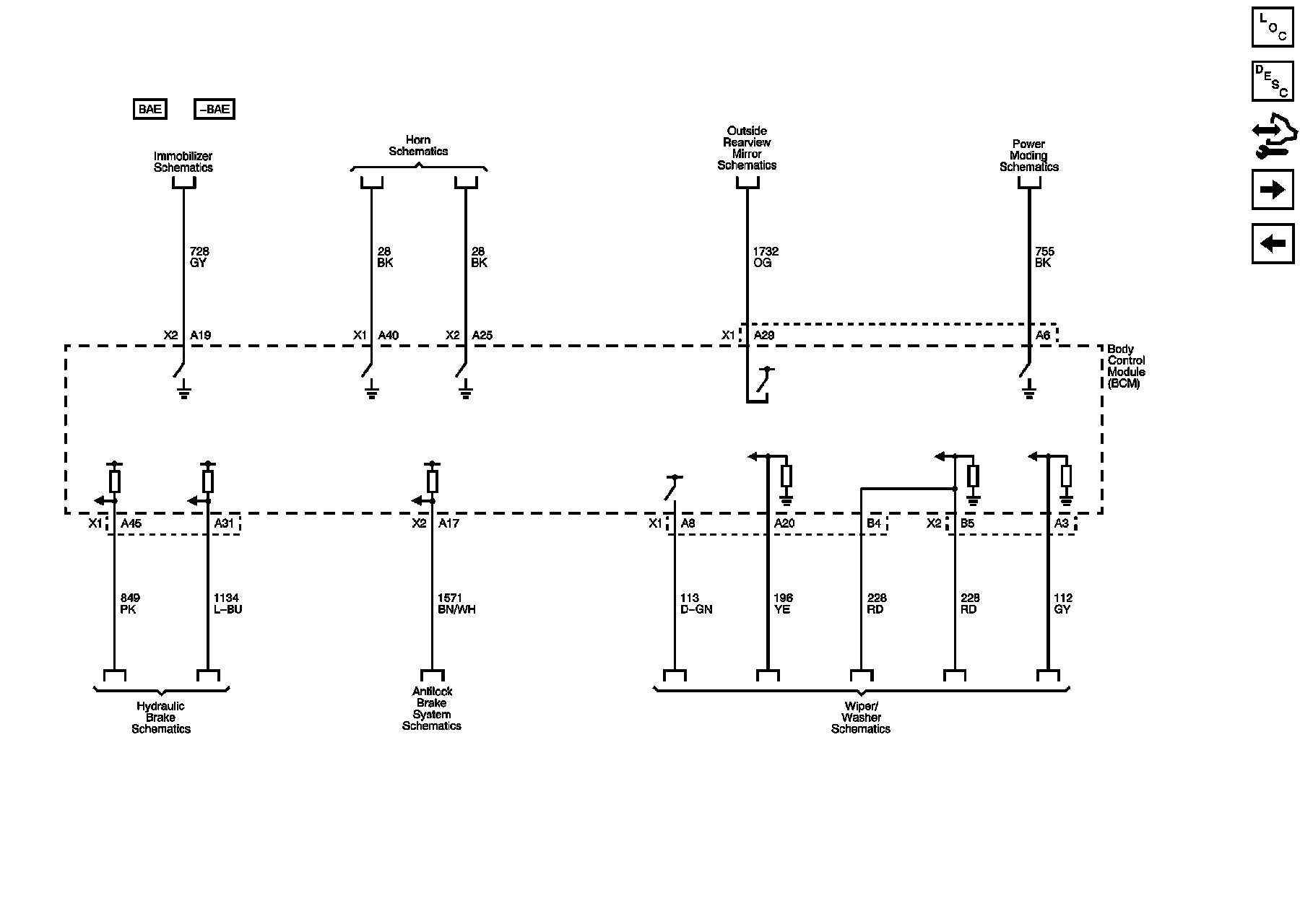

Power, Ground, and Subsystem References (1 of 4)

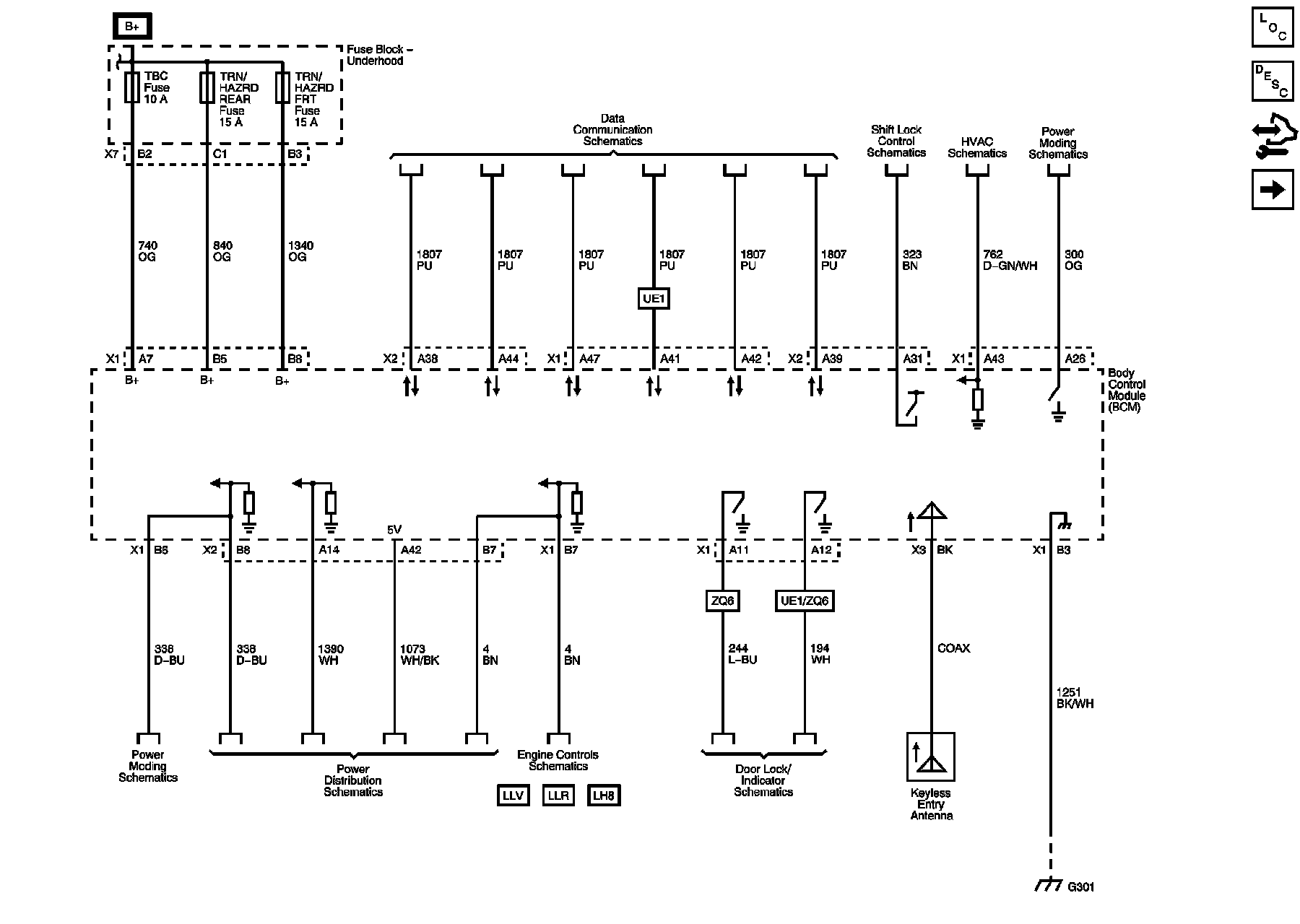

Subsystem References (2 of 4)

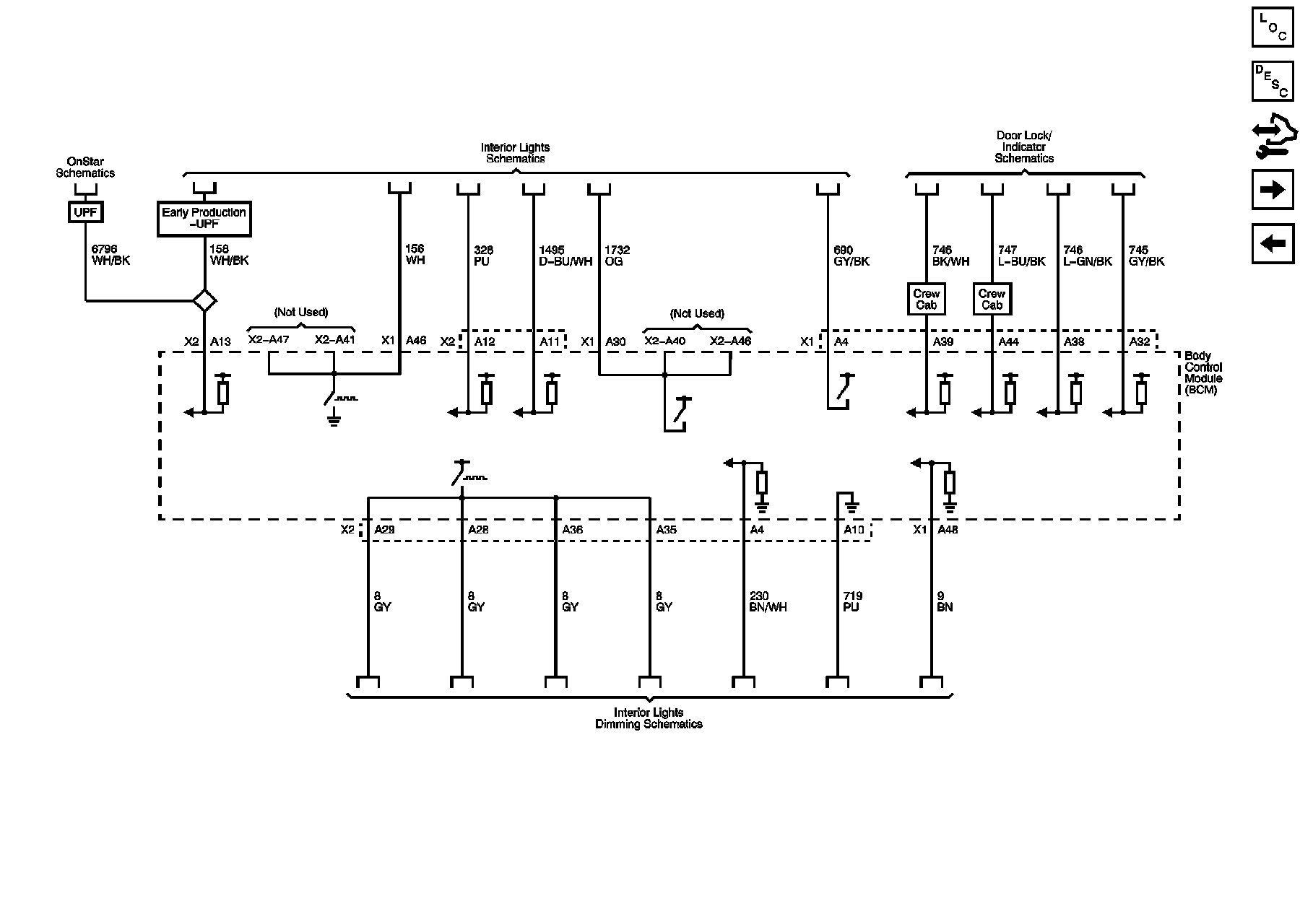

Subsystem References (3 of 4)

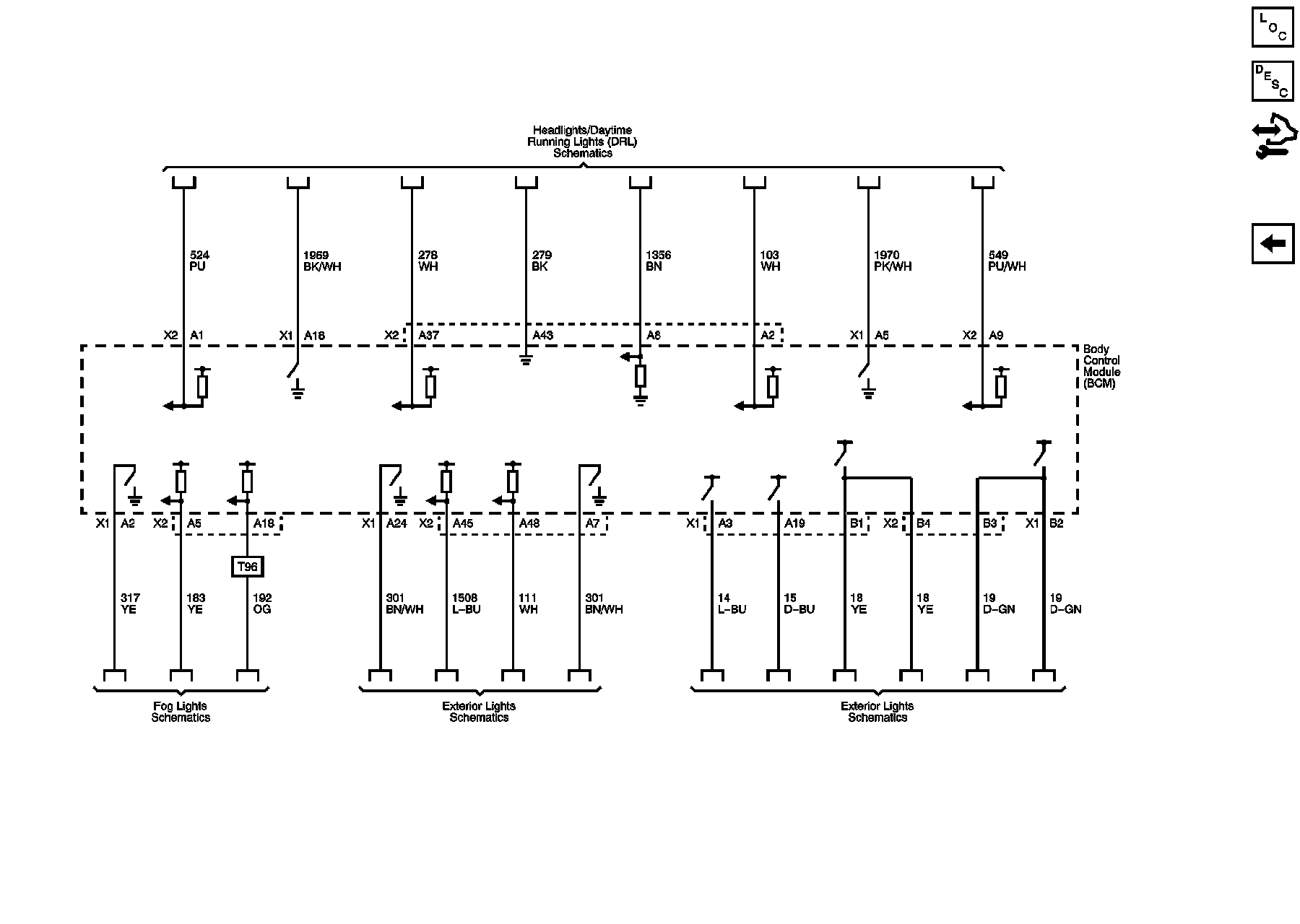

Subsystem References (4 of 4)
