Crankshaft Main Bearing

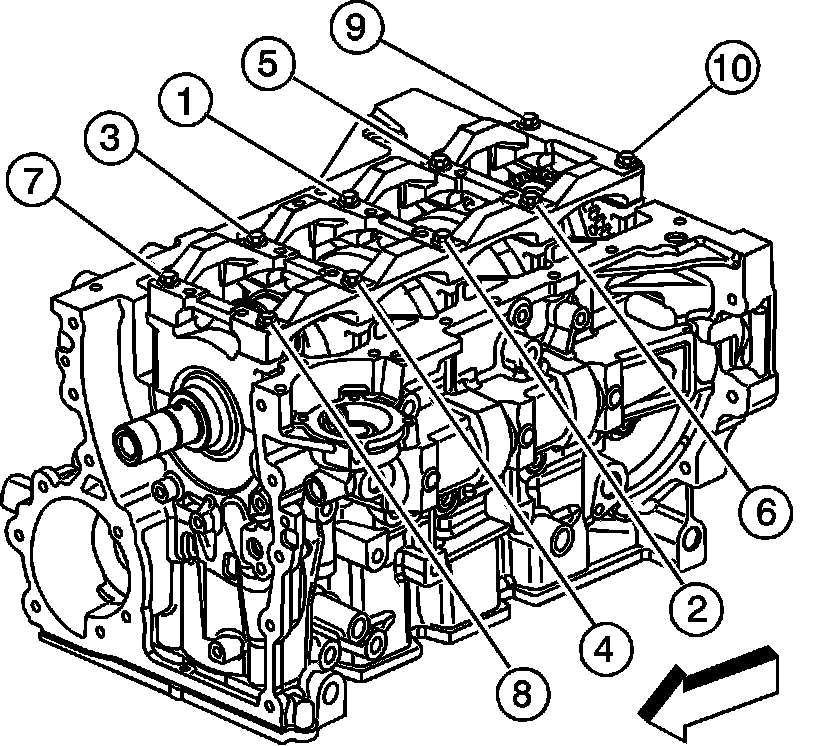

Crankshaft Main Bearing Cap Bolt
First Pass 25 Nm (18 lb ft)
Final Pass 180 degrees







Crankshaft Main Bearing Clearance 0.012-0.064 mm (0.0004-0.0025 in)
Crankshaft Main Bearing Bore Diameter 78.070-78.088 mm (3.0760-3.0766 in)
