Right Kick Panel Components

Instrument Panel/Center Console Component Views

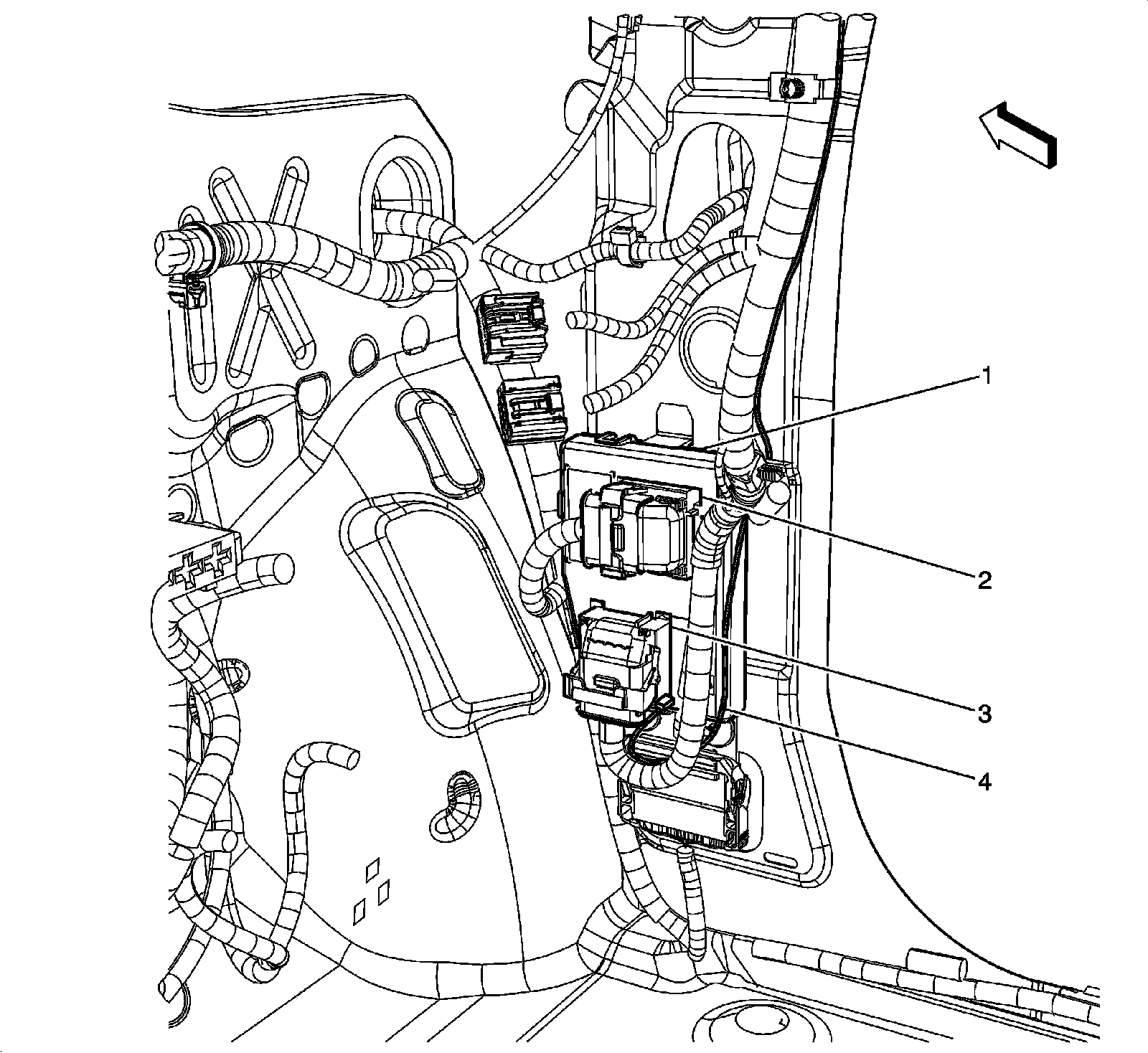

Right Kick Panel Components




1 - Body Control Module (BCM)
2 - Body Control Module (BCM) X1
3 - Body Control Module (BCM) X2
4 - Keyless Entry Antenna (AU0)
