Battery Control Module: Locations

Harness Routing Views

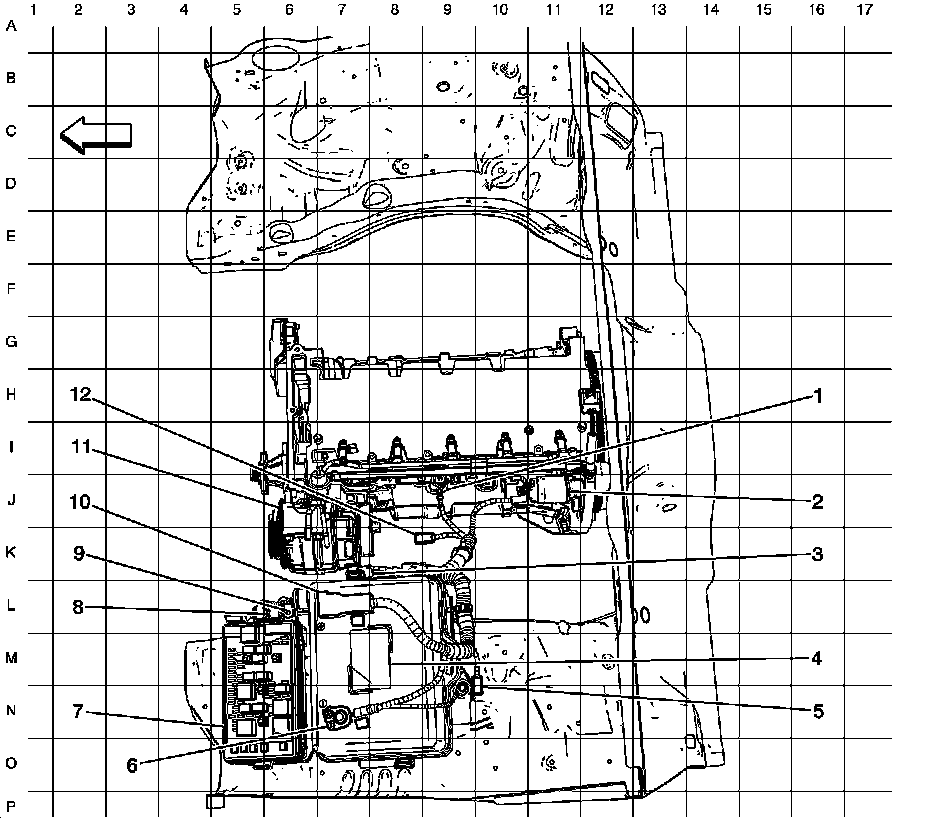

Battery Cable Harness Routing




1 - G104
2 - Starter
3 - Generator X2
4 - Battery
5 - Generator Battery Control Module Connector
6 - Battery Negative Terminal
7 - Fuse Block - Underhood
8 - Ring Terminal Battery
9 - Ring Terminal Generator
10 - Battery Positive Terminal
11 - Generator
12 - X111 (Engine Harness to Battery Harness) (LLR or LLV)
