Intake Manifold
Intake Manifold Bolts

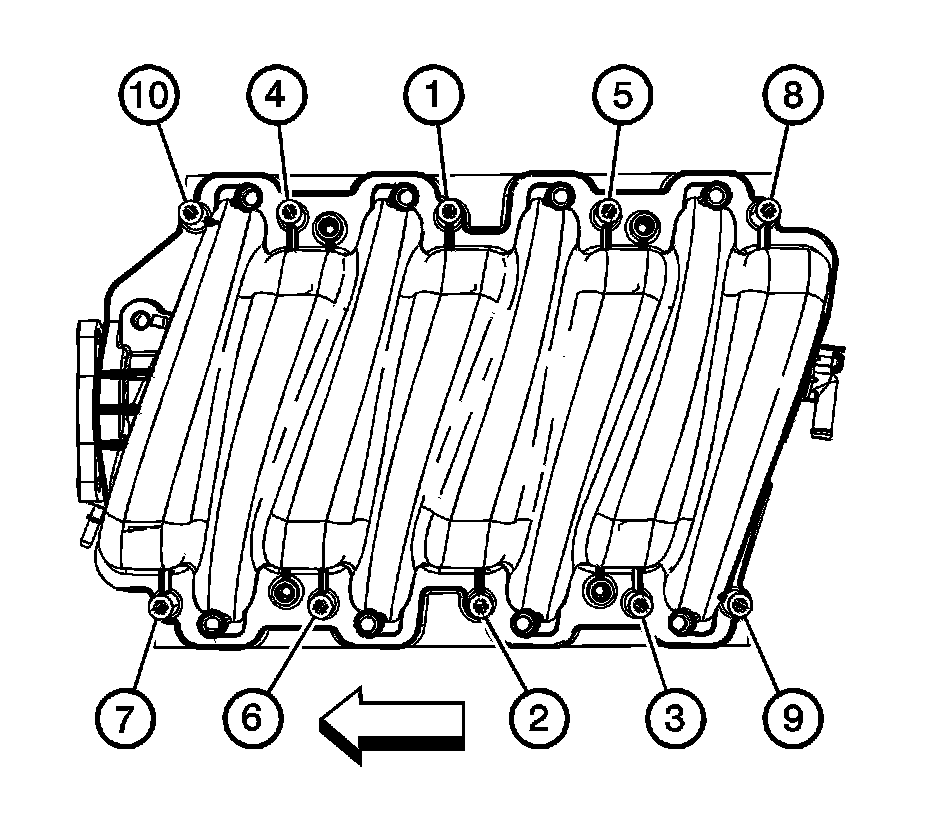

Tighten the bolts a first pass in the sequence shown to 5 Nm (44 lb in)
Tighten the bolts a final pass in the sequence shown to 10 Nm (89 lb in)

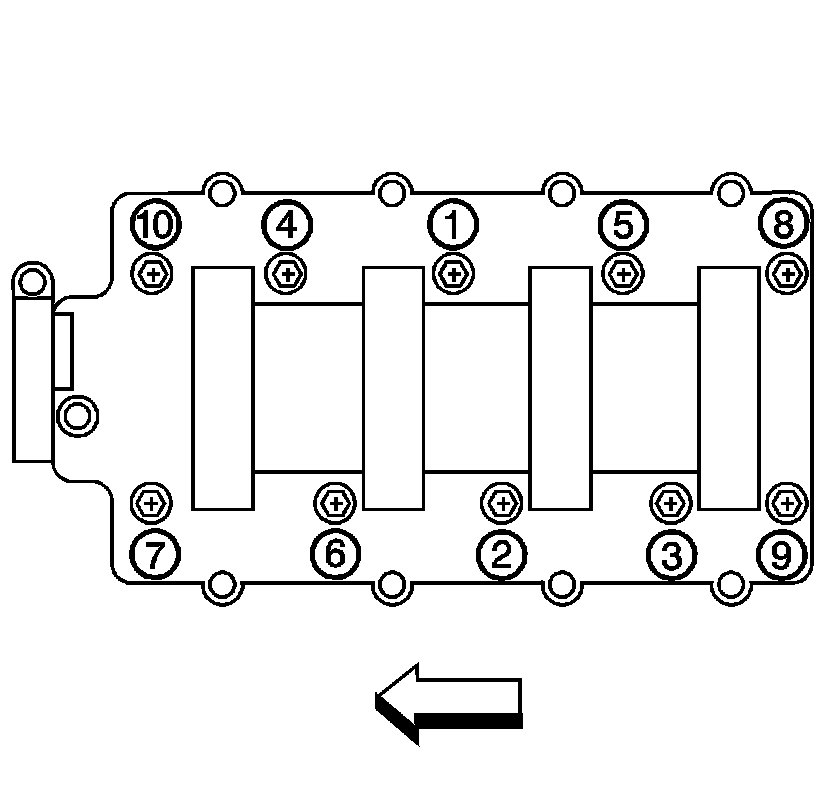

Tighten the bolts a first pass in the sequence shown to 5 Nm (44 lb in)
Tighten the bolts a final pass in the sequence shown to 10 Nm (89 lb in)
