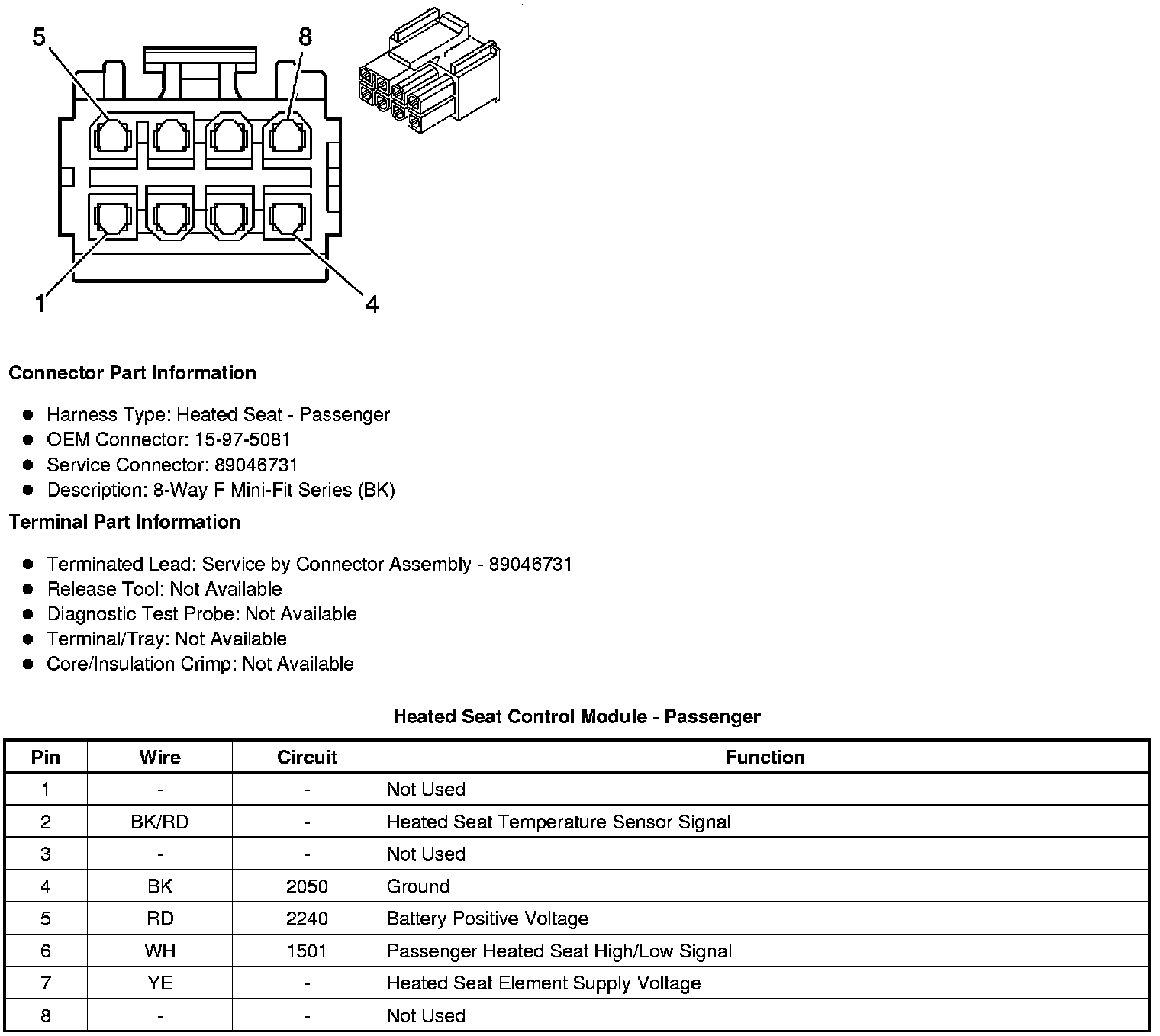

Heated Seat Control Module - Passenger
Component Connector End Views
Heated Seat Control Module - Passenger
