Remote Control Door Lock Receiver Replacement

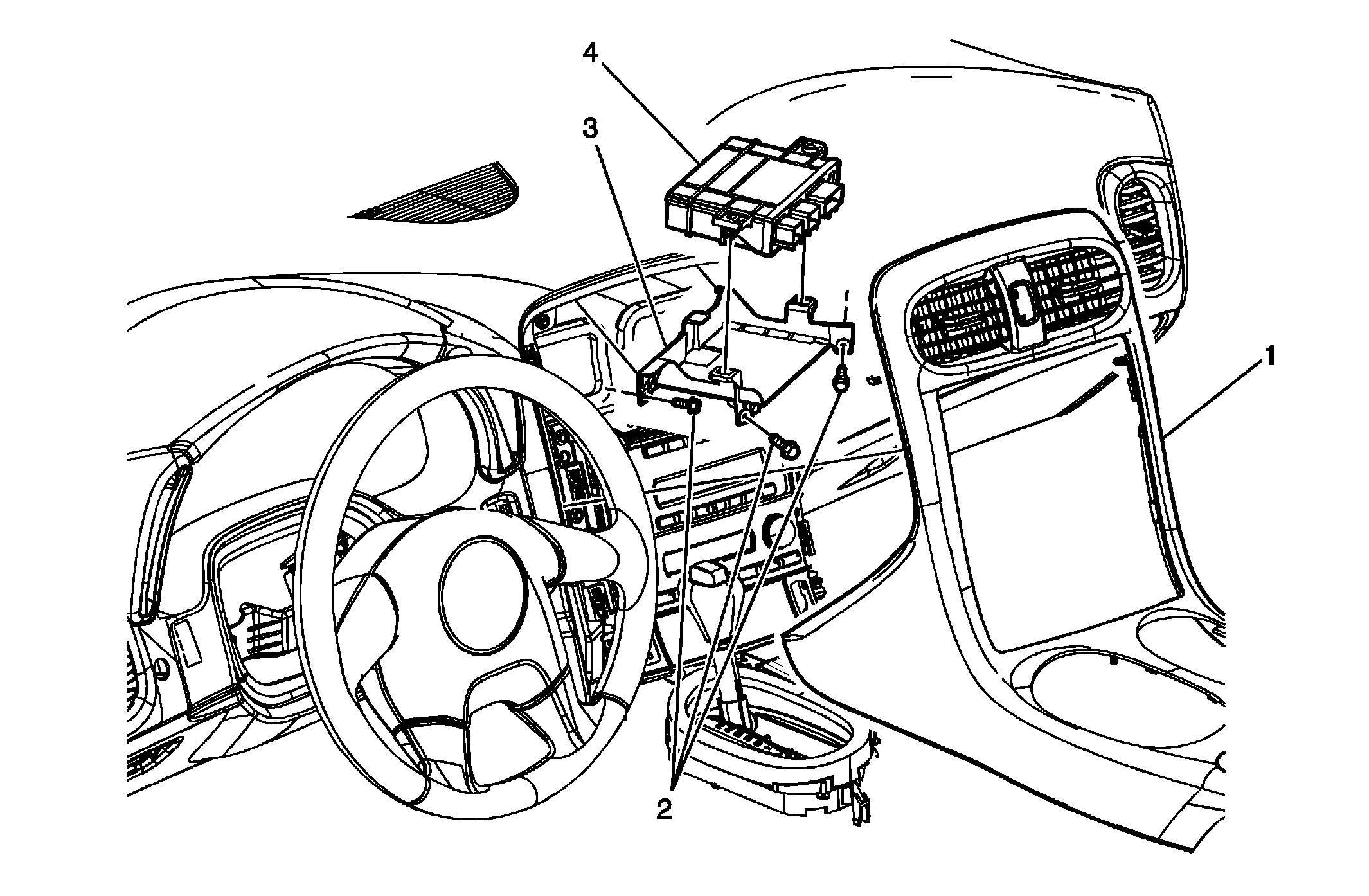

Fig 1: View Of Remote Control Door Lock Receiver & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel (I/P) Plate Assembly TIP: Remove the I/P accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
2	Remote Control Door Lock Receiver Bracket Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Remote Control Door Lock Receiver Bracket
4	Remote Control Door Lock Receiver Procedure Release the retaining clips to remove the receiver from the bracket. Reprogram the receiver. Refer to Control Module References for programming and setup information.
