Air Cleaner Assembly Replacement (6.2L LS3)

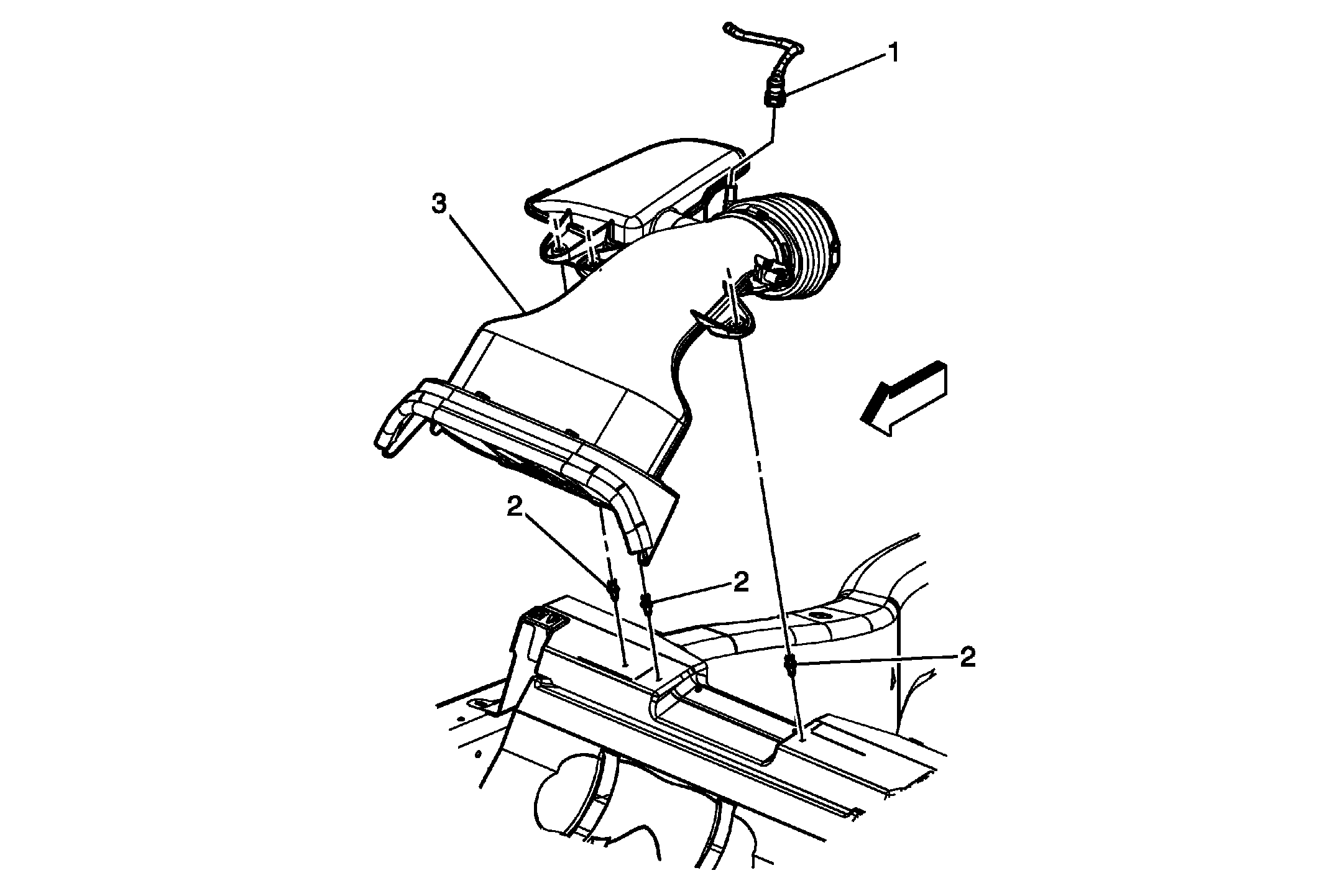

Fig 1: Air Cleaner Assembly Replacement (6.2L LS3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Positive Crankcase Ventilation (PCV) Tube Connector Procedure Disconnect the PCV quick-disconnect to the air cleaner. Disconnect the mass airflow (MAF) electrical connector.
2	Air Cleaner Assembly Retainer (Qty: 3)
3	Air Cleaner Assembly

Callout

Component Name

Positive Crankcase Ventilation (PCV) Tube Connector

Procedure

Air Cleaner Assembly Retainer (Qty: 3)

Air Cleaner Assembly
