Removal Procedure

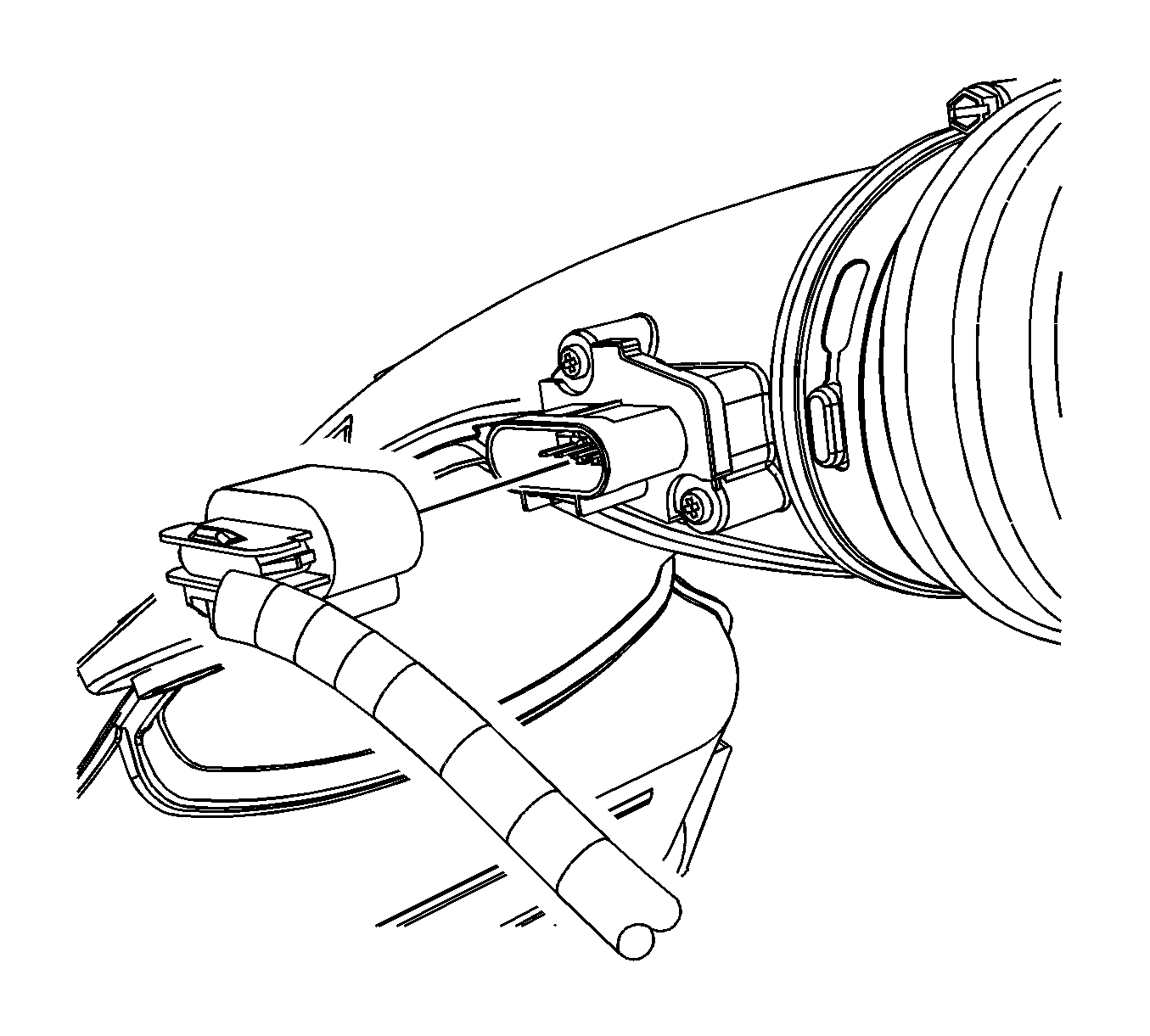

    Fig 1: View Of MAF Sensor
    GM1672559Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the electrical connector for the mass air flow (MAF)/intake air temperature (IAT) sensor.
  2. Disconnect the PCV pipe from the air cleaner outlet duct.
  3. Loosen the clamp.

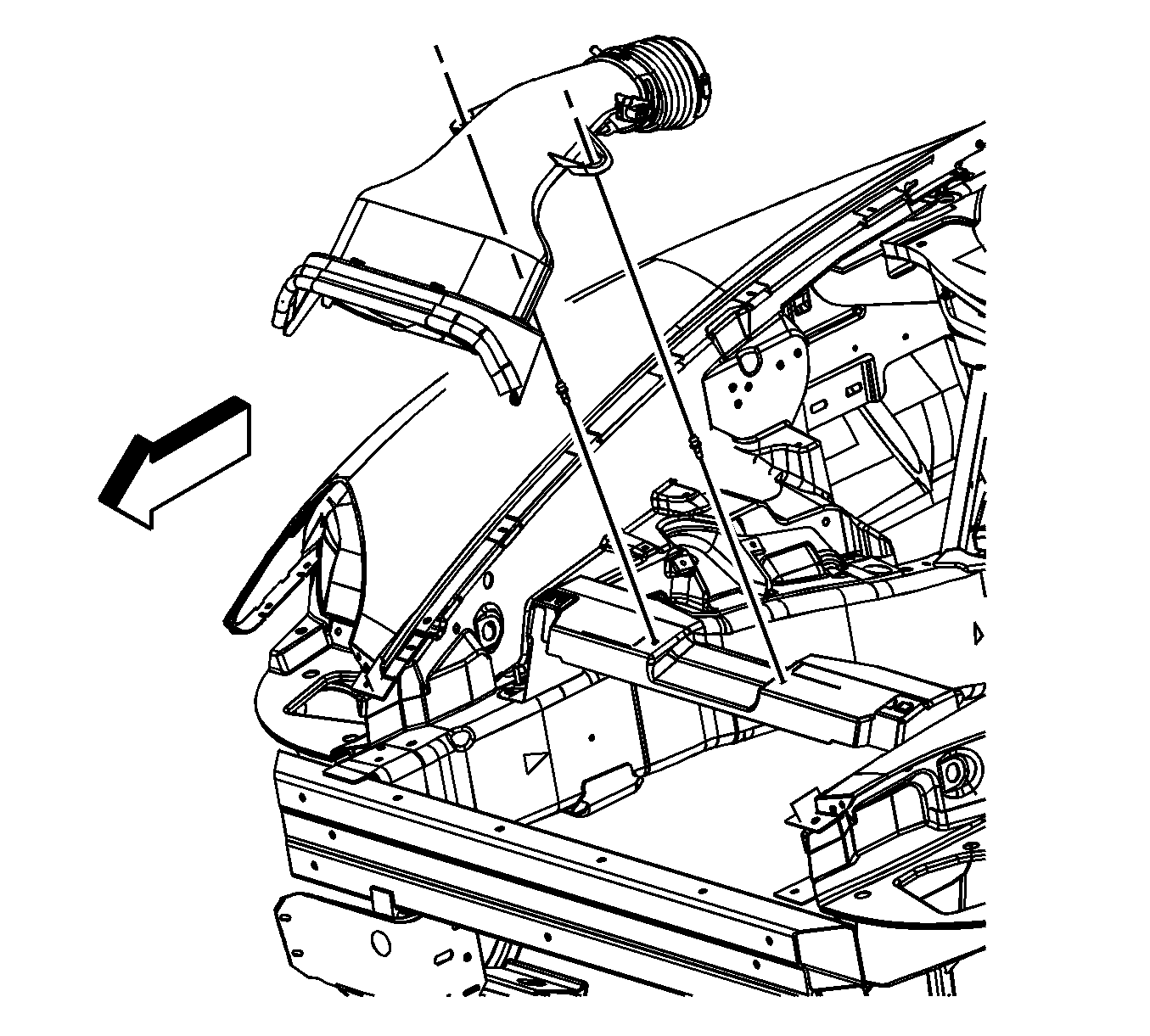

    4. Fig 2: View Of Air Cleaner Assembly
    GM1672572Courtesy of GENERAL MOTORS COMPANY
  4. Remove the bolts holding the air cleaner assembly to the radiator core support.
  5. Remove the air cleaner assembly.
