Fuel Injector Replacement

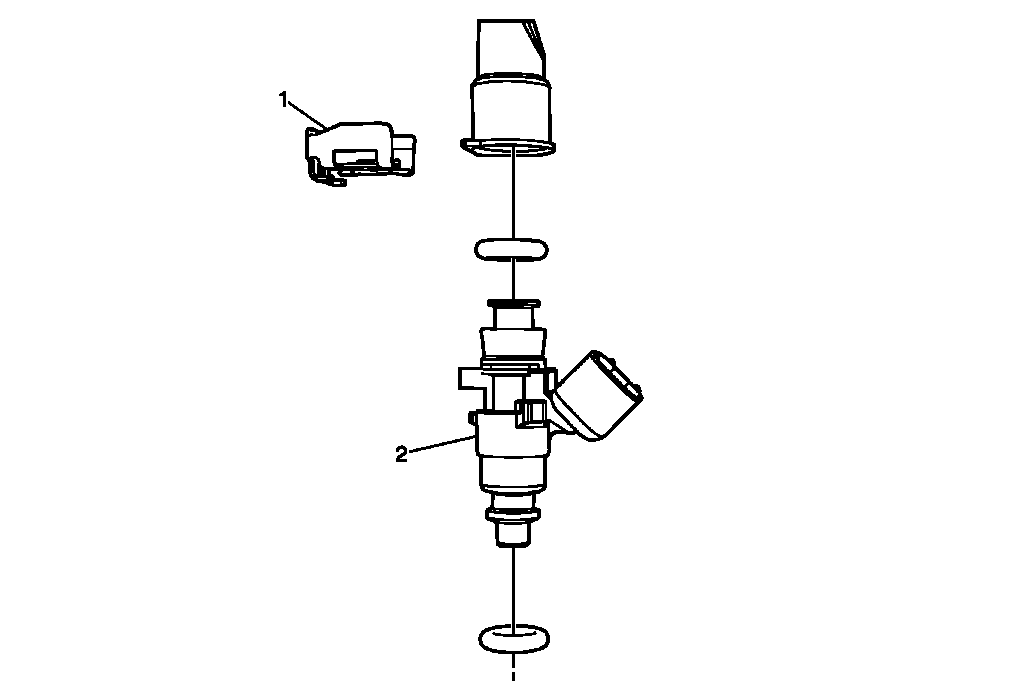

Fig 1: Identifying Fuel Injector
GM2158036Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement (6.2L LS9 - With Supercharger) , Fuel Injection Fuel Rail Assembly Replacement (Without LS9) .
1 Fuel Injector Retainer
TIP:  A flat bladed tool can be used to release the retainer.
2 Fuel Injector
Procedure
Remove and replace the O-rings as required.
