Fuel Pump Flow Control Module Relay Replacement

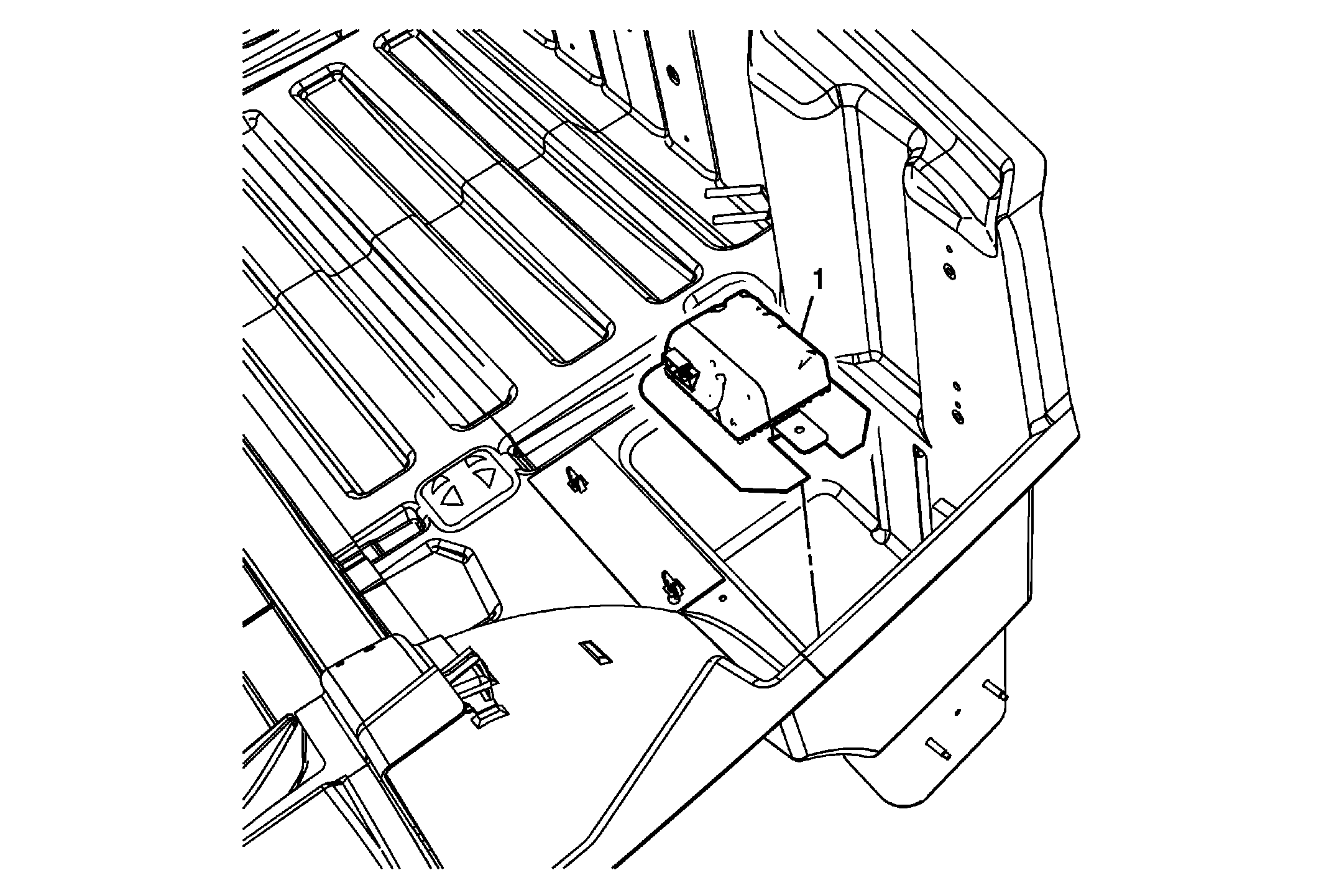

Fig 1: Identifying Fuel Pump Flow Control Module Relay

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Partially remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) , Rear Compartment Floor Panel Carpet Replacement (Coupe) .
1	Fuel Pump Flow Control Module Relay Procedure Remove the access cover. Disconnect the electrical connector. Remove any excess adhesive tape from the tub. TIP: The relay is secured with adhesive tape.

Callout

Component Name

Fuel Pump Flow Control Module Relay

Procedure

TIP: The relay is secured with adhesive tape.
